The average wind speed is 6 m/s at a 10-m-high anemometer. Estimate the average power density...
The average wind speed is 6 m/s at a 10-m-high anemometer. Estimate the average power density in the wind at a height of 80 m. Assume Rayleigh statistics, a standard friction coefficient α = 1/7, and standard air density ρ = 1.225 kg/m3.
Homework Answers

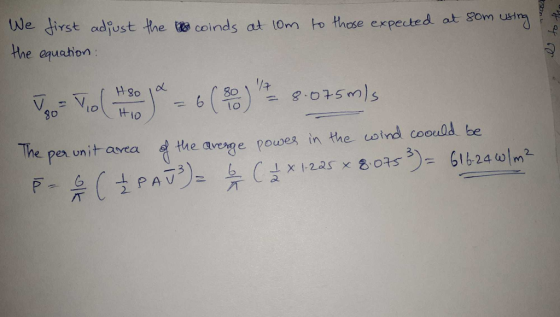

the values are substituted in the equations and the answer is verified
download the image if not clear.
