Design a circuit that compares the two-bit integers (x1x0)2 and (y1y0)2, returning an output of 1...
Design a circuit that compares the two-bit integers (x1x0)2 and (y1y0)2, returning an output of 1 when the first 2-bit number is larger and an output of 0 otherwise.

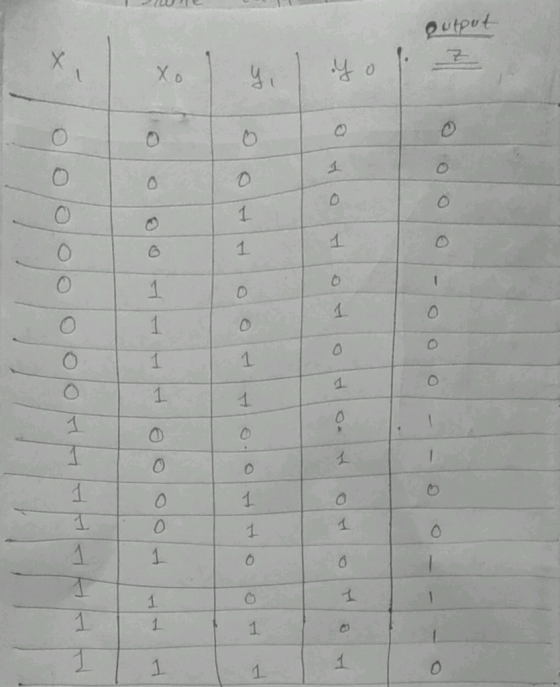

a) (3 points) Construct the truth table.
b) (4 points) Find the output Boolean function in the canonical sum-of-product format and the canonical product-of-sum format, respectively.

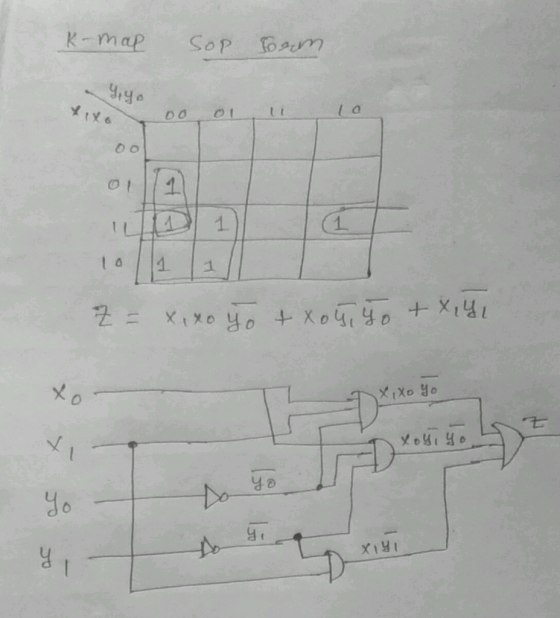

c) (4 points) Using K-Map to find the simplified output Boolean function.
d) (4 points) Construct the circuit for the obtained Boolean function in part (c).
Homework Answers
