0, before writing out the forces in x direction. equilibrium equations explicitly....
just need #6 (5) 12 mm 12 mm Determine the moment of inertia and the radius...
just need #6

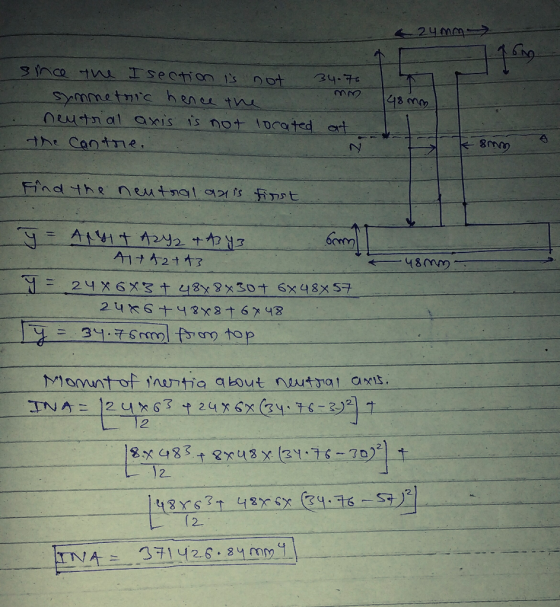

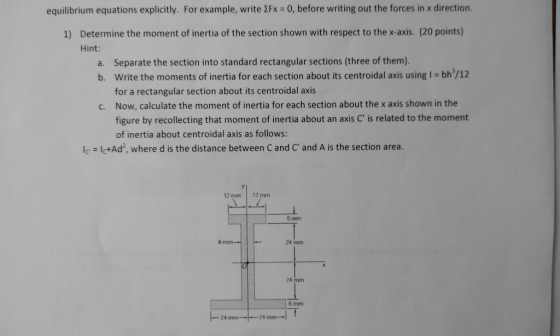

(5) 12 mm 12 mm Determine the moment of inertia and the radius of gyration of the shaded area at right with respect to the x axis shown. 6 mm [6] Determine the centroid (x & y) of the I-section in Problem (5). Calculate the moment of inertia of the section about its centroidal x & y axes. How or why is this result different from the result of problem (5]? S mm- 21 mm 6 mm...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x and y) axes, respectively, and the centroidal polar area moment of inertia (J-Iz -Iz +Iy) of the cross section of Problem P8.12. Answer: 1x-25.803 in. Ц-167.167 in. and J-192.97 in P8.12 The cross-sectional dimensions of the beam shown in Figure P8.12 are a 5.o in., b moment about the z centroidal axis is Mz--4.25 kip ft. Determine 6.o in., d -4.0 in., and t-...
2. The A-36 steel beam cross-section (E - 29.0 Msi, oy 36 ksi) with dimension:s shown...
2. The A-36 steel beam cross-section (E - 29.0 Msi, oy 36 ksi) with dimension:s shown is subjected to bending. Find: a. y, the distance to the centroidal axis b. lx, the moment of inertia about the centroidal x-axis c. Mv, the maximum elastic moment. 2 4 6 6' 01 24
Find the moments of inertia for composite areas, with respect to the given axis. Bonus Homework...
Find the moments of inertia for composite areas, with respect
to the given axis.
Bonus Homework (Chapters 9-10) Moments of Inertia for Composite Areas 6 of 7 > Part A-Moment of Inertia of a Composite Beam about the x axis For the built-up beam shown below, calculate the moment of inertia about the axis The dimensions are d, = 7.0 in, d2 = 13.5 in, d3 = 8.5 in, and t = 0.80 in. Express your answer to three significant...
Determine the polar radius of gyration of the area of the equilateral triangle of side b...
Determine the polar radius of gyration of the area of the equilateral triangle of side b = 16 in. about its centroid C. Answer: kz = By the method of this article, determine the rectangular and polar radii of gyration of the shaded area about the axes shown. Assume r = 0.55a. »-- ------ - - Answers: Calculate the moment of inertia of the shaded area about the x-axis. Assume a = 45 mm, r = 30 mm. a- Answer:...
0 Q c) 28125000 1 Question 4 2 the shown column subjected to the shown forces...
0 Q c) 28125000 1 Question 4 2 the shown column subjected to the shown forces Answer the following questions 100 O F c) 42187500 150 c) 204.44444 F, [kN] F; [kN] [kN] 300 500 400 c) 44.444444 5) moment of inertia about x-axis Ix (mm) a) 83333333 b) 42187500 6) moment of inertia about y-axis ly a) 83333333 b) 28125000 7) Normal stress at point A[Mpa) a) 186.66667 b) 44.4444444 8) Normal stress at point B [Mpa) a) 62...
The T shape is used as a post that supports a load of P- 50 kN....
The T shape is used as a post that supports a load of P- 50 kN. Note that the load P is applied 400 mm from the flange of the T shape. Determine the normal and shear stresses at point H. int: first, you must find A. the centroid, B. thev second moment of inertia about the z axis (not x axis), C. the internal forces and moments at the cross-section HK 6 150 mm 20 mm 0.8 m 400...
(b) The L203mm x 102mm x 19mm section is used as a cantilever beam, as shown...
(b) The L203mm x 102mm x 19mm section is used as a cantilever beam, as shown in igure-02, supporting the 6-kN load. Determine the neutral axis and the maximum bending stress in the beam. Moment of inertia about centroidal axes are as under. (CLO-3) (Iz 22.6 x 10 mm4 ly 3.84 x 106 mm4 yz 5.25x 108 mm) 6 kN 6 kN .203 x 102x1 3 m 乏 - lo 75 21 2
Question 1.10 The L Shaped area shown in Figure 10 has its centroidal axis x-x 15...
Question 1.10 The L Shaped area shown in Figure 10 has its centroidal axis x-x 15 mm above the baseline. Calculate the second moment of area (moment of inertia) of the area about X-X. Select the closest answer from the options given. Note that the answer is given to 3 significant figures. 18mm (a) l = 735000 mm (b) 1 = 1020000 mm (c) l. = 368000 mm (d) Ixx = 187500 mm (e) lx = 210000 mm 50mm x...
Please answer the following,and please note that 0.00130,0.00608,-0.000558 does not work. Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to f...
Please answer the following,and please note that
0.00130,0.00608,-0.000558 does not work.
Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to find the orientation of the principal axes. Another advantage of using Mohr's circle is that it does not require that long equations be memorized. The method is as follows: 1. To construct Mohr's circle, begin by constructing a coordinate system with the moment of inertia, I, as the abscissa (x axis) and...
just need #6
(5) 12 mm 12 mm Determine the moment of inertia and the radius of gyration of the shaded area at right with respect to the x axis shown. 6 mm [6] Determine the centroid (x & y) of the I-section in Problem (5). Calculate the moment of inertia of the section about its centroidal x & y axes. How or why is this result different from the result of problem (5]? S mm- 21 mm 6 mm...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x and y) axes, respectively, and the centroidal polar area moment of inertia (J-Iz -Iz +Iy) of the cross section of Problem P8.12. Answer: 1x-25.803 in. Ц-167.167 in. and J-192.97 in P8.12 The cross-sectional dimensions of the beam shown in Figure P8.12 are a 5.o in., b moment about the z centroidal axis is Mz--4.25 kip ft. Determine 6.o in., d -4.0 in., and t-...
2. The A-36 steel beam cross-section (E - 29.0 Msi, oy 36 ksi) with dimension:s shown is subjected to bending. Find: a. y, the distance to the centroidal axis b. lx, the moment of inertia about the centroidal x-axis c. Mv, the maximum elastic moment. 2 4 6 6' 01 24
Find the moments of inertia for composite areas, with respect
to the given axis.
Bonus Homework (Chapters 9-10) Moments of Inertia for Composite Areas 6 of 7 > Part A-Moment of Inertia of a Composite Beam about the x axis For the built-up beam shown below, calculate the moment of inertia about the axis The dimensions are d, = 7.0 in, d2 = 13.5 in, d3 = 8.5 in, and t = 0.80 in. Express your answer to three significant...
Determine the polar radius of gyration of the area of the equilateral triangle of side b = 16 in. about its centroid C. Answer: kz = By the method of this article, determine the rectangular and polar radii of gyration of the shaded area about the axes shown. Assume r = 0.55a. »-- ------ - - Answers: Calculate the moment of inertia of the shaded area about the x-axis. Assume a = 45 mm, r = 30 mm. a- Answer:...
0 Q c) 28125000 1 Question 4 2 the shown column subjected to the shown forces Answer the following questions 100 O F c) 42187500 150 c) 204.44444 F, [kN] F; [kN] [kN] 300 500 400 c) 44.444444 5) moment of inertia about x-axis Ix (mm) a) 83333333 b) 42187500 6) moment of inertia about y-axis ly a) 83333333 b) 28125000 7) Normal stress at point A[Mpa) a) 186.66667 b) 44.4444444 8) Normal stress at point B [Mpa) a) 62...
The T shape is used as a post that supports a load of P- 50 kN. Note that the load P is applied 400 mm from the flange of the T shape. Determine the normal and shear stresses at point H. int: first, you must find A. the centroid, B. thev second moment of inertia about the z axis (not x axis), C. the internal forces and moments at the cross-section HK 6 150 mm 20 mm 0.8 m 400...
(b) The L203mm x 102mm x 19mm section is used as a cantilever beam, as shown in igure-02, supporting the 6-kN load. Determine the neutral axis and the maximum bending stress in the beam. Moment of inertia about centroidal axes are as under. (CLO-3) (Iz 22.6 x 10 mm4 ly 3.84 x 106 mm4 yz 5.25x 108 mm) 6 kN 6 kN .203 x 102x1 3 m 乏 - lo 75 21 2
Question 1.10 The L Shaped area shown in Figure 10 has its centroidal axis x-x 15 mm above the baseline. Calculate the second moment of area (moment of inertia) of the area about X-X. Select the closest answer from the options given. Note that the answer is given to 3 significant figures. 18mm (a) l = 735000 mm (b) 1 = 1020000 mm (c) l. = 368000 mm (d) Ixx = 187500 mm (e) lx = 210000 mm 50mm x...
Please answer the following,and please note that
0.00130,0.00608,-0.000558 does not work.
Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to find the orientation of the principal axes. Another advantage of using Mohr's circle is that it does not require that long equations be memorized. The method is as follows: 1. To construct Mohr's circle, begin by constructing a coordinate system with the moment of inertia, I, as the abscissa (x axis) and...
