(Networking)

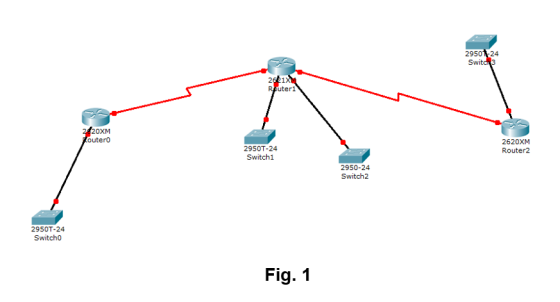

How many collision domains are in Fig 1? Explain your answer.
Homework Answers
ANSWER
There is a total of 6 collision domains.
Each port on a router and switch breaks collision domain. Therefore, each port of a router and a switch is a different collision domain. In the above figure, there are a total of 3 routers and 4 switches.

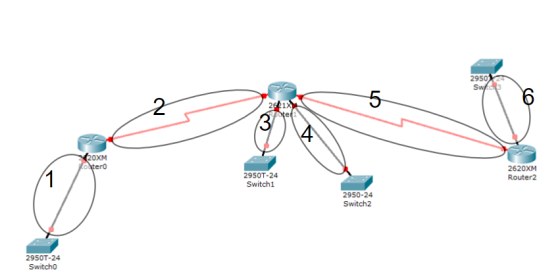

Collision domains:-
- Collision domain 1: Between a port of Switch0 and Router0
- Collision domain 2: Between a port of Router0 and Router1
- Collision domain 3: Between a port of Switch1 and Router1
- Collision domain 4: Between a port of Switch2 and Router1
- Collision domain 5: Between a port of Router1 and Router2
- Collision domain 6: Between a port of Switch3 and Router2
