Homework Answers
BALANCING MOMENT ABOUT POINT C:
THE FORCE AT PIN B WILL BE SHARED EQUALLY BY TWO VERTICAL LINKS AS BD.
SO:
THE NORMAL STRESS WILL BE:
PLEASE DO POST COMMENTS IF YOU HAVE ANY DOUBT. PRESS THUMBS UP IF YOU LIKE THE ANSWER AND THE EFFORT.
THANKS.
Add Answer to:

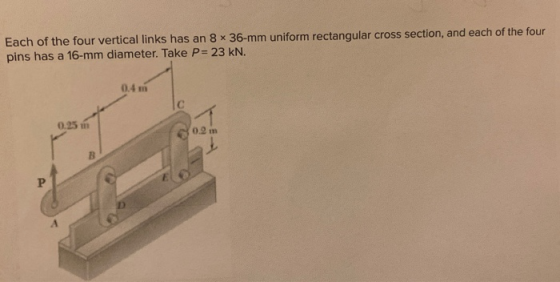

Each of the four vertical links has an 8 x 36-mm uniform rectangular cross section, and...
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section, and...
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section, and each of the four pins has a 16-mm diameter. Take P= 24 kN 0.4m 025 m 0.2 m
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section and...
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section and each of the four pins has a 16-mm diameter. Take P= 20 kN. 0.4 m 0.25 m 02 m
Each of the four vertical links has an 8x36-mm uniform rectanqular cross section and esch of...
Each of the four vertical links has an 8x36-mm uniform rectanqular cross section and esch of the four pins has a 16-mm diameter. Take P 19 kN 04 m 025 (02 m Requie Determine the average bearing stress at B in member ABC, knowing that this member has a 10 x 50-mm uniform rectangular cross section (Round the final answer to one decimal The average bearing stress at B in member ABC is MPa
Each of the four vertical links...
Esch of the four vertical iniks hes an 8-36-mm unform rectangular cross section, and each of...
Esch of the four vertical iniks hes an 8-36-mm unform rectangular cross section, and each of the four pins has a 16-mm diameter Take P 22 kN 2m References Section Brealk Dfficuty Medium 12. 100 O You did not full credit for 000 points Determine the maxmum value of the The maximum value of the average nomal stress in the inks connecting points C and Es average normal stness in the inks connecting points c and E Round the nal...
* You received no credit for this question in the previous attempt Check my work Part...
* You received no credit for this question in the previous attempt Check my work Part 1 of 2 Required information Each of the four vertical links has an 8 x 36 mm uniform rectangular cross section, and each of the four pins has a 16-mm diameter. Take P= 23 kN. points Determine the maximum value of the average normal stress in the links connecting points and D The maximum value of the average normal stress in the links connecting...
A rigid member ABC is subjected to a 20 kN vertical force and is attached to a base by four vertical bars and four pins...
A rigid member ABC is subjected to a 20 kN vertical force and is attached to a base by four vertical bars and four pins as shown below. All vertical bars are identical with rectangular cross sections (80 mm x 20 mm), and each of the four pins has a 24-mm diameter. Determine the maximum value of the average normal stress in each of the vertical bars 0.4 m C 0.25 m 0.2 m 20 kN A
A rigid member...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the two vertical links CF connecting the two horizontal members AD and EG has a 40-mm uniform rectangular cross section and is made of a steel with an ultimate strength in tension of 404 MPa, while each of the pins at C and F has a 10-mm diameter and is made of a steel with an ultimate strength in sheer of 14S MPa. Determine the...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at A and C as well as at B and that no other changes have been made. A in. 8 in. B C 4 in. 6 in. Fig.P1.51 1.51 Link AC is made of a steel with a 65-ksi ultimate normal stress and has a 2-in. uniform rectangular cross section. It is connected to a support at A and to member BCD at C by-in.-diameter...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular cross section and made of a steel that is assumed to be elastic with E 200GPa. Knowing that a-0.8m, determine (a) the average normal stress in each link, (b) the deflection of points A and B iforn 40x10-11-T SAN
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section, and each of the four pins has a 16-mm diameter. Take P= 24 kN 0.4m 025 m 0.2 m
Each of the four vertical links has an 8 × 36-mm uniform rectangular cross section and each of the four pins has a 16-mm diameter. Take P= 20 kN. 0.4 m 0.25 m 02 m
Each of the four vertical links has an 8x36-mm uniform rectanqular cross section and esch of the four pins has a 16-mm diameter. Take P 19 kN 04 m 025 (02 m Requie Determine the average bearing stress at B in member ABC, knowing that this member has a 10 x 50-mm uniform rectangular cross section (Round the final answer to one decimal The average bearing stress at B in member ABC is MPa
Each of the four vertical links...
Esch of the four vertical iniks hes an 8-36-mm unform rectangular cross section, and each of the four pins has a 16-mm diameter Take P 22 kN 2m References Section Brealk Dfficuty Medium 12. 100 O You did not full credit for 000 points Determine the maxmum value of the The maximum value of the average nomal stress in the inks connecting points C and Es average normal stness in the inks connecting points c and E Round the nal...
* You received no credit for this question in the previous attempt Check my work Part 1 of 2 Required information Each of the four vertical links has an 8 x 36 mm uniform rectangular cross section, and each of the four pins has a 16-mm diameter. Take P= 23 kN. points Determine the maximum value of the average normal stress in the links connecting points and D The maximum value of the average normal stress in the links connecting...
A rigid member ABC is subjected to a 20 kN vertical force and is attached to a base by four vertical bars and four pins as shown below. All vertical bars are identical with rectangular cross sections (80 mm x 20 mm), and each of the four pins has a 24-mm diameter. Determine the maximum value of the average normal stress in each of the vertical bars 0.4 m C 0.25 m 0.2 m 20 kN A
A rigid member...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
Do not round intermediate calculations. Give your final answer(s) to three significant figures Each of the two vertical links CF connecting the two horizontal members AD and EG has a 40-mm uniform rectangular cross section and is made of a steel with an ultimate strength in tension of 404 MPa, while each of the pins at C and F has a 10-mm diameter and is made of a steel with an ultimate strength in sheer of 14S MPa. Determine the...
1.52 Solve Prob. 1.51, assuming that the structure has been redesigned to use 16-in.-diameter pins at A and C as well as at B and that no other changes have been made. A in. 8 in. B C 4 in. 6 in. Fig.P1.51 1.51 Link AC is made of a steel with a 65-ksi ultimate normal stress and has a 2-in. uniform rectangular cross section. It is connected to a support at A and to member BCD at C by-in.-diameter...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular cross section and made of a steel that is assumed to be elastic with E 200GPa. Knowing that a-0.8m, determine (a) the average normal stress in each link, (b) the deflection of points A and B iforn 40x10-11-T SAN
