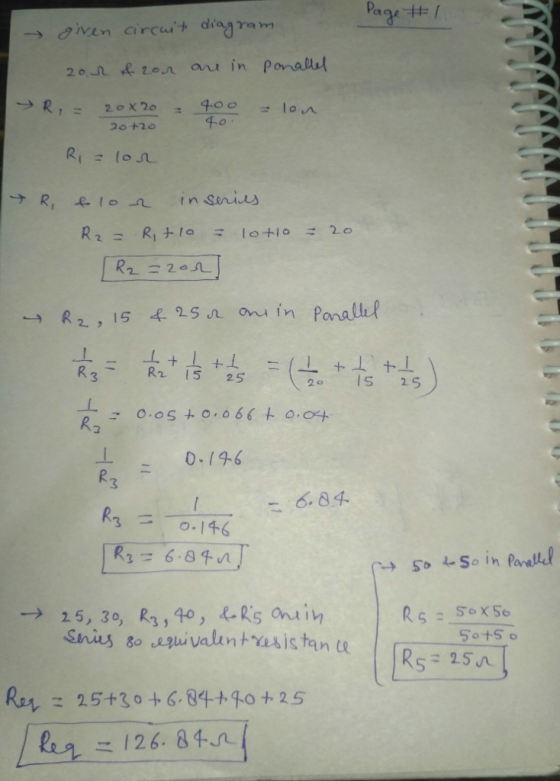

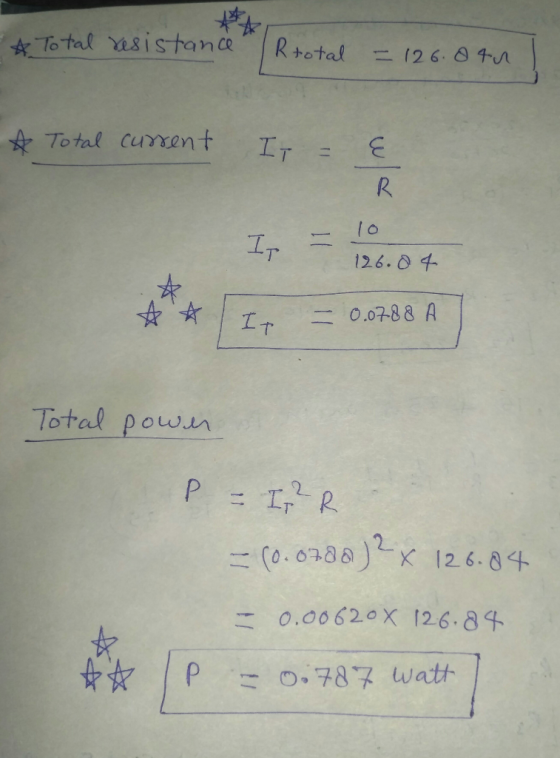

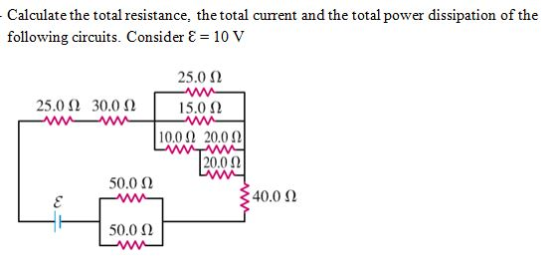

Calculate the total resistance, the total curent and the total power dissipation of the following circuits....
3. Calculate the total resistance and total current in the two circuits pictured below a) Series circuit (allaboutcircuits.com): Series Power source 120 V Each resistance (R1,R2, R3) Total resistance Total current Ri 2 25 Ω 4. 3
Dr. Must 125 points) Maximum Power Dissipation. * Consider the following circuit. 10001 10 ks 2 az z 10 mA 0 85kn 10 ks2 The resistance RL is chosen to maximize its power dissipation. a. [12 points) Find the value of RL. b. [13 points) Calculate the corresponding power dissipated by R.
1. Find the equivalent resistance, the total current of the
circuit and the power of each resistor.
2. The following figure both batteries have negligible internal
resistance and the ammeter reads a stream of 2.50 in the sense that
it illustrates. Find EMF of the battery polarity indicated is
correct?
R2-576 Ω R,-576 Ω R: 576 Ω 120 V 12.0 Ω 上 48.0 1 15.0 75.0 V
Consider the reaction 2H3PO4→P2O5+3H2O2H3PO4→P2O5+3H2O Using the information in the following table, calculate the average rate of formation of P2O5P2O5 between 10.0 and 40.0 ss. Time (ss) 0 10.0 20.0 30.0 40.0 50.0 [P2O5][P2O5] (MM) 0 1.90×10−3 4.90×10−3 6.70×10−3 7.90×10−3 8.50×10−3
Solve it and show the work for each circuits
11. Determine the total resistance of the circuit illustrated to the right using the reciprocal formula introduced in class R1 2.2k03.3k0 R2 15 V 12. Construct the circuit illustrated to the right and, with the source 13. Use the total resistance to calculate the total circuit current. 14. Connect the source to the circuit and measure the total circuit current. 15. Determine the percent deviation of the resistance and current. 16....
For the circuit below, determine,
a. The equivalent resistance.
b. The total current in the circuit.
c. The total power.
d. The current and voltage for R5 and R7
.
Take, V = 48 V, R1 = 25 Ω, R5 = 45 Ω, R6 = 40 Ω, and R7 = 38
Ω.
2. 10] For the circuit below, determine, a. The equivalent resistance b. The total current in the circuit. c. The total power d. The current and voltage for...
matlab problem
Problem 3 Impedance matching concept in electrical circuits states that the maximum power to a loa when the load resistance is matched to the internal resistance of the source. Show that this is true by plotting the power to the load RL and that it is maximum when is equal to the source resistance Rs for a source of 10 v DC and internal resistance Rs of load RL in series. Fit the power vs resistance to a...
Compute the resistance at the terminals of the following circuits Find v(t) for 1 0 in the circuit of Fig. 7.44. Assume the switch has been open for a long time and is closed at t=0. Calculate v(t) at t = 0.5.
The resistance of a 1.50 m long copper wire, with a cross-sectional area of 7.06 x 10-6 m2, is measured at different temperatures starting at 20.0 oC and ending at 70.0 oC. The given table shows those resistances as a function of temperature differences from the initial temperature. Generate an accurate plot of the resistance as a function of DT. Determine the resistivity of copper from your plot and compare to the accepted value for copper’s resistivity. Determine the temperature...
Find the equivalent resistance, the total current of the circuit
and the power of each resistor
1. Encuentre la resistencia equivalente, la corriente total del circuito y la potencia de cada resistor. R2-576 Ω R1-576 Ω R3-576 Ω 120 V Tomado de: Physics 9th Ed, Cutnell&Johnson
