As a new electrical technician, you are designing a large solenoid to produce a uniform 0.150-T...

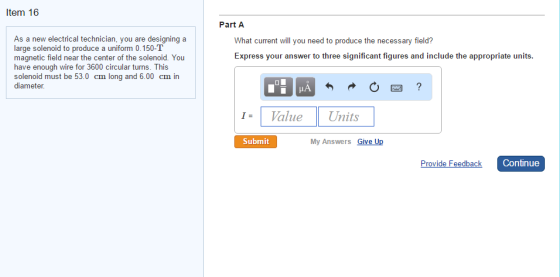

As a new electrical technician, you are designing a large solenoid to produce a uniform 0.150-T magnetic field near the center of the solenoid. You have enough wire for 3600 circular turns. This solenoid must be 53.0 cm long and 6.00 cm in diameter.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

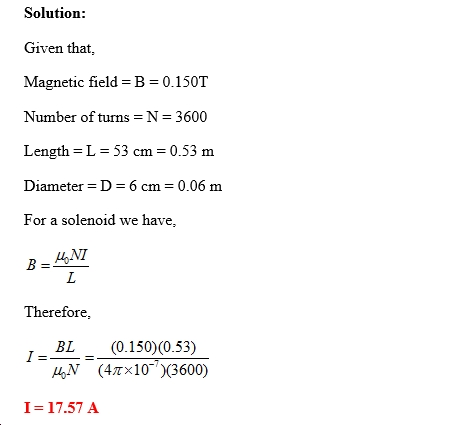

Solution: Given that, Magnetic fields B = 0.150T Number of turns N 3600 Length L 53 cm 0.53 m Diameter D-6 cm 0.06 m For a solenoid we have, Therefore, BL(0.150) (0.53) I- 17.57 A

Add a comment
