Question

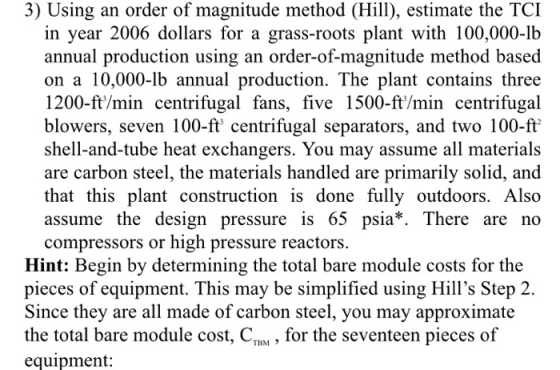

3) Using an order of magnitude method (Hill), estimate the TCI in year 2006 dollars for a grass-roots plant with 100,000-lb annual production using an order-of-magnitude method based on a 10,000-lb annual production. The plant contains three 1200-ft/min centrifugal fans, five 1500-ft/min centrifugal blowers, seven 100-ft' centrifugal separators, and two 100-ft shell-and-tube heat exchangers. You may assume all materials are carbon steel, the materials handled are primarily solid, and that this plant construction is done fully outdoors. Also assume the design pressure is 65 psia*. There are no compressors or high pressure reactors Hint: Begin by determining the total bare module costs for the pieces of equipment. This may be simplified using Hill's Step 2 Since they are all made of carbon steel, you may approximate the total bare module cost, CM for the seventeen pieces of equipment: TBM

use following to solve

Answer 1

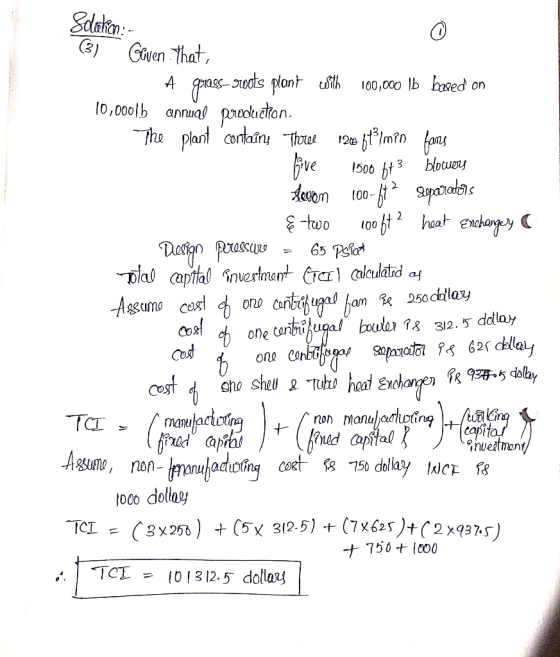

Sdakan: (3) Glven. That, A grass-sroots plant with 100,000 lb based on 10,00016 annual production. The plant contains Three 120 ft/min fans five 1500 ht3 Slowners Hevon 100-672 separators { two 100bt? heat Enchangey ( Design pressure = 65 pslat Total capital investment CTCI) calculated as Assume cost of one centrifugal fan Re 250 dellay cost of one centrifugal boweler 78 312. 15 delay cost ☆ one centrifugal separator 94 625 delley cost oft she shell & tube heat Exchanger P8 93#5 dollay TCI | manufacturing Jus non manufactuling walking (fixed capitale It (fined capital & Heapitos o learn Asume, non-topanufacturing cost 88 750 dollay WCE P8 1000 dollay TCI = ( 3X250) + (5x 312.5) + (7x625)+(2x9375) + 750+ 1000 1 TCI = 101312.5 dollars
