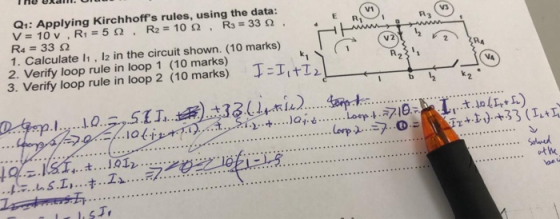

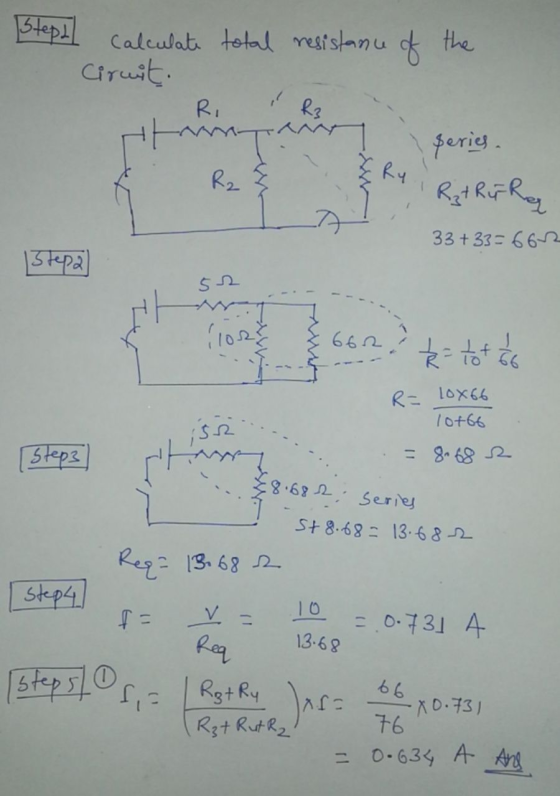

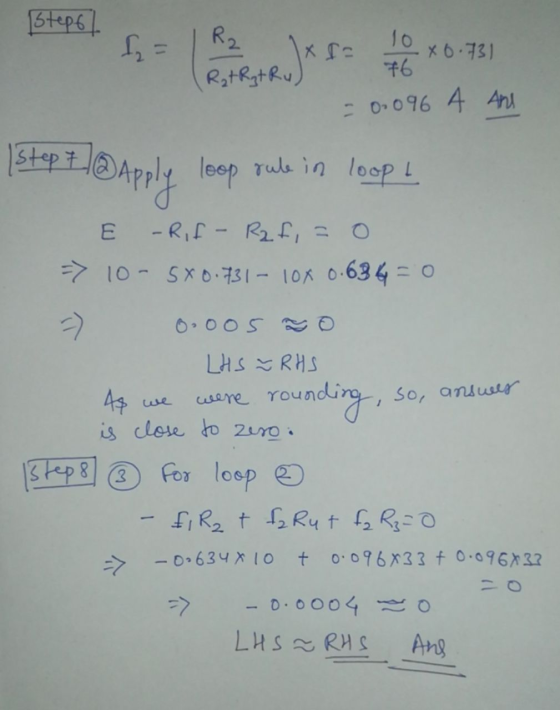

Q1: Applying Kirchhoff's rules, using the data: V = 10 v , R1 = 50, R2...
plesse help we are using Kirchhoff's rule i am completely
lost
(1) Five resistors are connected to an ideal battery as shown in this picture. Determine the current in each resistor. 2012 20.12 m m 1012 M M 4012 1012 10 V (2) In the following circuit diagram, the reading of the ammeter is zero. If R1, R2, R3 are given, what is the value of R4? (In other words, express R4 in terms of R1, R2, and R3) R1...
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
In Figure 3 shown, V1 = 100 millivolts. Further, R1 = 1Kohm, R2
= 10 Kohm, R3 = 5 Kohm, R4= 5 Kohm, R5 = 10 Kohm and RL =
1Kohm.
(i) Determine the amplified output voltage V2 of the op-amp (of
open-loop gain A) in circuit shown in Figure 3.
(ii) Suppose this amplified voltage V2 becomes the source
voltage to a passive circuit as illustrated in Figure.3. Find
Thevenin’s equivalent circuit looking at the terminal XY. Hence,
determine...
Please help me solve for Calculations table 2 using the values
in Data Table 2, not the diagram the set up is shown in figure34-4.
Thank you
34 LABORATORY 3 4 Kirchhoff's Rules LABORATORY REPORT Data Table 1 Power Supply Voltages V 5.00 V & =_10.00 Calculations Table 1 Kirchhoffs rules for the circuit (1) KCR- (2) KVR1- (3) KVR2- E2 Theoretical Current (mA) % Error Experimental to Theoretical Current Resistor Values (9) Ri= 462 R2= 750 R3 = 1008...
i)draw the transafer
charcheristics for this circuit?
ii)Derive expressions for VTH and VTL?
iii)Let L+ = - L- = 10 V, and R1=1 k Ω , choose R2 in order to
get a hysteresis of
100mV width?
iv).An engineer decided to modify the given circuit by
disconnecting the inverting
input of the op-amp from the ground and connecting it to a constant
voltage
source Vx. Derive expressions for VTH and VTL and Draw the transfer
characteristics in this case.?
Question...
2) Shown below is a c R2 = 7 Ω, R3 = 24 Ω, R4 = 10 ircuit with two switches. Si and S2M = 15 V, V.-5 V, V,-20 V, Rı = 15 Ω . 25s2 C,200F v -,,I -R, Г 2:0 start atp sition A. This creates two dependent circuits. The left circuit with only resistors '5 V-15A)(T)-YAG).2ov-ocharges the capacitor C, through resistor Rs with battery Vs(the capacitor is initially The switch 1 will start in the on/closed...
