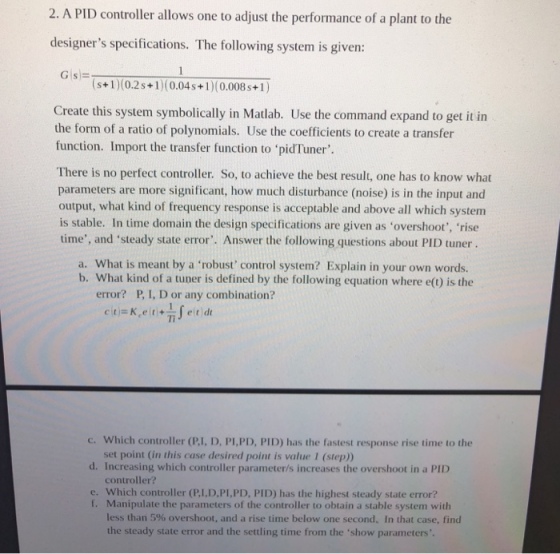

Matlab 2. A PID controller allows one to adjust the performance of a plant to the...
System dynamics and control course.
Use only “MATLAB “to solve this.
Need a pro to help
Let a system have plant transfer function (00.2) s3 +22s 156s+232 Design a PID controller such that the closed-loop rise time is less than 0.5 seconds, the overshoot is less than 10%, and the steady-state error is zero for a step command.
Let a system have plant transfer function (00.2) s3 +22s 156s+232 Design a PID controller such that the closed-loop rise time is...
Design Project #1 : Design of PID Controller Design a PID controller so that the step response of the following closed-loop system satisfy (settling time) 3sec, POS(% overshoot) 20%, and steady state tracking error (ess)<0. R(s) Y(s) K, ss +1 If you can reduce both settling time and overshoot, then it would be much better. To verify your answer, you should use Matlab simulink and show that your answer is correct in your report. Describe the detailed design procedure (as...
b) Design a PID controller via root-locus to satisfy the following requirements for the controlled system 2.9 T,-0.18 The following notation has been used for the system parameters: Percent Overshoot(%)-pos Settling time (s) Peak time (s)- Tp Start by manual calculations for the locations of the poles and zeros of the PID controller to satisfy the requirements. Find the required location of the zero for PD control and introduce PI control. Afterwards, use the Sisotool in MATLAB to simulate the...
I required to design a PID controller that has overshoot less
than 10% with minimise rise time, settling time, peak time and
steady-state error.
The transfer function of the plant is shown below:
and the step response of the open loop system by using unit-step
is shown below:
Then I have designed my PID controller by referring to the
example from Modern Control Engineering 5th Edition by Katsuhiko
Ogata page 572 by using Ziegler Nichols 2nd Method.
I get Kcr...
The transfer function of a position control system, with load angular position as an output and motor armature voltage, is given as G(s) : s(s + 10) For this system design the following controllers 1. Proportional controller to obtain { = 0.7 2. PD controller to obtain { = 0.7 and 2% steady-state error due to a ramp input. 3. PI controller to have a dominant pair of poles with { = 0.7 , wn = 4 rad/sec and zero...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
SOLVE USING MATLAB
A servomechanism position control has the plant transfer function 10 s(s +1) (s 10) You are to design a series compensation transfer function D(s) in the unity feedback configuration to meet the following closed-loop specifications: . The response to a reference step input is to have no more than 16% overshoot. . The response to a reference step input is to have a rise time of no more than 0.4 sec. The steady-state error to a unit...
3. Consider the following mass-spring-damper system. Let m= 1 kg, b = 10 Ns/m, and k = 20 N/m. b m F k a) Derive the open-loop transfer function X(S) F(s) Plot the step response using matlab. b) Derive the closed-loop transfer function with P-controller with Kp = 300. Plot the step response using matlab. c) Derive the closed-loop transfer function with PD-controller with Ky and Ka = 10. Plot the step response using matlab. d) Derive the closed-loop transfer...
The transfer function of a position control system, with load angular position as an output and motor armature voltage, is given as 1. G(s) s(s +10) For this system design the following controllers 1. Proportional controller to obtain 0.7 2. PD controller to obtain 0.7 and 2% steady-state error due to a ramp input. 3. PI controller to have a dominant pair of poles with ? = 0.7 , ??-4 rad/sec and zero steady-state error due to a ramp input...
Q2. Scope 102 2+4s 102 P(s) Determine the values 8 and wn 1. Underdamped systems parameters Parameters PID Controller: Use the following table to change the values for PID controller and report 2. your observation on: % (Percentage) | Steady State New Value Overshoot Error Кр Increase Decrease Kd Increase Decrease Ki Increase Decrease
Q2. Scope 102 2+4s 102 P(s) Determine the values 8 and wn 1. Underdamped systems parameters Parameters PID Controller: Use the following table to change the...
