)An axial-flow turbine operating with an overall stagnation pressure of 8to 1 has a polytropic efficiency...

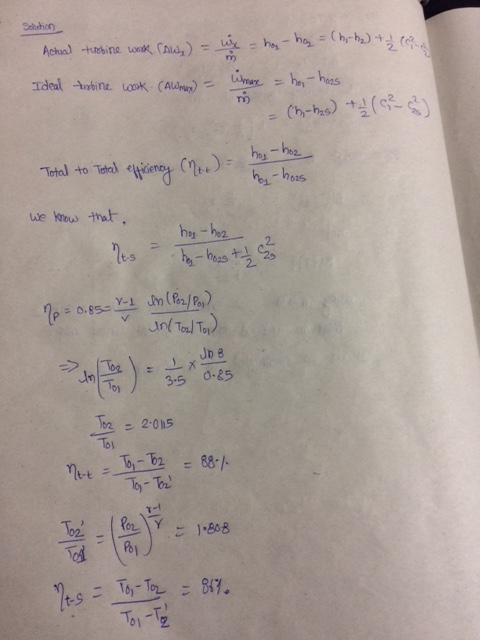

)An axial-flow turbine operating with an overall stagnation pressure of 8to 1 has a polytropic efficiency of 0.85. Determine the total-to-total efficiency of the turbine.b)If the exhaust Mach number of the turbine is 0.3, determine the total-to-static efficiency.c)If, in addition, the exhaust velocity of the turbine is 160 m/s, determine the inlet total temperature.Assume for the gas that Cp=1.175 kJ/(kg K) and R=287 kJ/(kg K).
Homework Answers
