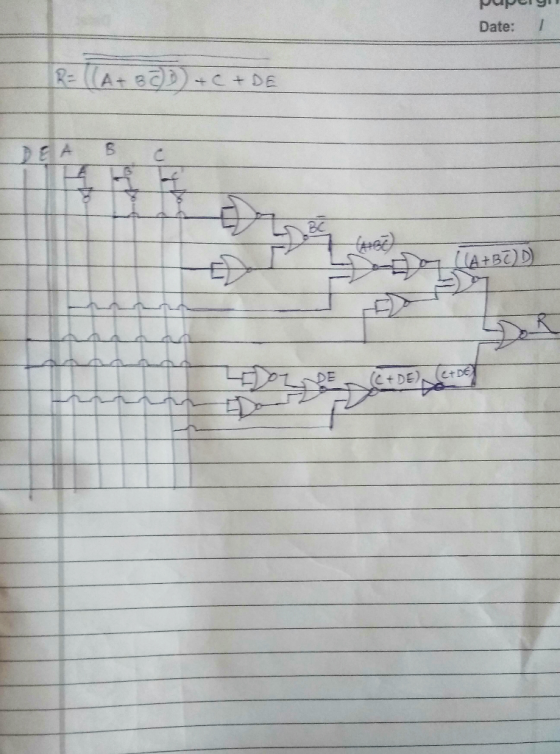

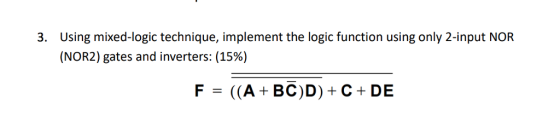

Using mixed-logic technique, implement the logic function using only 2-input NOR (NOR2) gates and inverters: (1596)...
Draw a logic diagram using only two-input NOR gates to implement the following function. Show your work. You must use only NOR gates for this solution, no other gates. You may assume that the inverted inputs are available. Example: if you need A’ as a circuit input, just write A’ as an input name. (15 points) F(A, B, C, D) = (A B)’ (C D) a. Show your work, using Boolean algebra to expand the function to its...
4. Implement the function using only NOR gates (20 pts) (A B+C).D Sketch the logic gate schematic and verify your circuit by truth table.
3. () Use only NAND gates to implement the Boolean function F AC +BC. (ii) Use only NOR gates to implement the Boolean function F AB+BC. Write the truth tables and draw the logic circuits for the following Boolean functions: (i) F A +BC'. (ii) F AB +C'+D. 4.
Problem E2: Using only inverters and NOR gates (and only a minimum number of these), show the design of a 2:4 decoder whose output lines are low when inactive. Assume the input enable is active high. Be sure to use the convention that the active line is the one whose subscript is the decimal equivalent of the applied binary address.
[10] Using the 1s of the function, create a minimum circuit using only inverters and NOR gates for the function ? (?,?, ?, ?) =(0,2,5,7,8,10,13) + ??(1,9,11).
[10] Question 2: Fig. 1 shows a logic function, implemented by NOR gates. Please answer the following X1 X2 De X3 Fig. 1: Logic function. questions: 1) What is the logic function of the output in the form of product-of-sum? 2) Based on the derived logic function, please sketch transistor level compound gates. Assume both truth and complementary inputs are provided. 3) In many cases, more than 3 inputs may be required to carry out a logic function, e.g. 3-input...
1. Implement the four-input odd-parity function with AND and OR gates using bubbled inputs and outputs. Note: Rather than draw inverters explicitly, a common practice is to add “bubbles” to the inputs or outputs of a gate to cause the logic value on that input line or output line to be inverted.
3. Realize AND logic and X-OR logic using NOR gates only. Clearly show the working for the logic realization and draw the resulting logic circuit diagram, which must only have NOR gates and nothing else.
3. Implement the following gates using only one TTLİCİ (1 point) TEL EL (a) Example: One 4-input OR gate (b) One 2-input NAND gate and one 2-input OR gate (c) One inverter, one 2-input NAND and one 3-input NAND (d) One 2-input XOR gate and one 2-input XNOR (e) One 4-input XNOR gate 2346 GND 2-input OR 7432 1 Porcuits Simplify the following expressions, and implement them with two-level NAND gate circuits: 4. Minterms, K-map and two-level NAND/NAND logic: F...
1. Determine 2 ways to implement an inverter with a 2-input NAND gate. 2. Implement a 3-input NAND gate function using 2-input NAND gates only, draw schematics. 3. Implement a 2-input OR function using 2-input NAND gates only, draw schematics. 4. (A) Implement the function using one 2-input OR gate, one 2- input AND gate and one 2-input NAND gate. (B) Implement the same function with only NAND gates. (C) Make up the truth table for the function. What is...
