A crate with a mass of 189.5 kg is suspended from the end of a uniform boom with a mass of 95.1 kg. The upper end of the boom is supported by a cable attached to the wall and the lower end by a pivot (marked X) on the same wall. Calculate the tension in the cable.
| You'll need to get the various positions from the graph. Many are exactly on one of the tic marks.) |

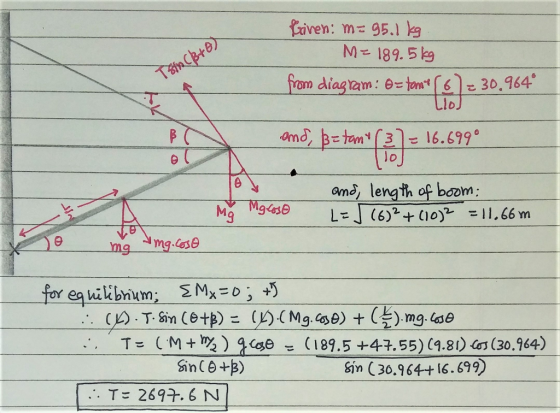

Homework Answers
Alright Dude, If that worked for you... don't forget to give THUMBS
UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving down vote.
and, Thanks for using Chegg- Smarter way to study.
