B. In each of the following circuits: [2 marks] Determine whether each silicon diode is forward biased or reverse biased

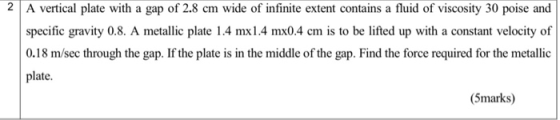

2 A vertical plate with a gap of 2.8 cm wide of infinite extent contains a fluid of viscosity 30 poise and specific gravity 0
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

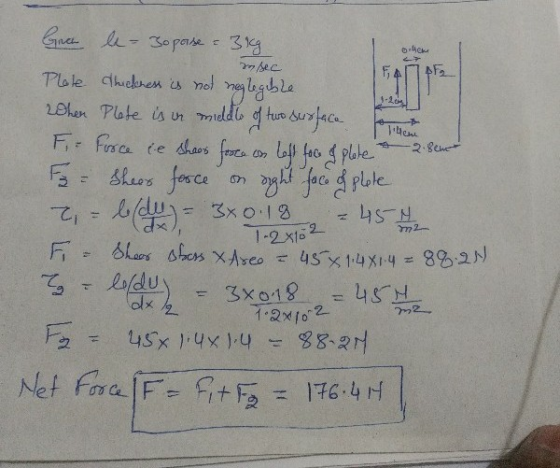

o hem FA DF 20 1-24 Tilene -2.8eme Gre le-Jopose = 31g msec Plate Chickness is not neglegable coher Plate is in middle of twoIn first question circuit is not given so I didnot solve it

Thanks

0 0
Add a comment
Know the answer?
Add Answer to:
B. In each of the following circuits: [2 marks] Determine whether each silicon diode is forward...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • ELTR 197 Analog Determine whether each silicon diode is forward or reverse biased. a) 1. b)...

    ELTR 197 Analog Determine whether each silicon diode is forward or reverse biased. a) 1. b) 10ka 100V B) Forward Bia sE OForwod Biase 5600 5V 8V d) 10KO 10ka 1.0kn $1.5kn -20V 10V -30V 4.7ka 4.7kQ 2. Using the practical diode model, determine the values of VR1, Vr2, and Vo. Vo R1 4 k7 D1 hika 22KS) R2 10V Via- 5V 13 -n the forward current of a diode with 1. Determine whether each silicon diode is forward or...

  • 5. Determine whether each silicon diode in Figure 2-92 is forward-biased or reverse-biased. 6. Determine the...

    5. Determine whether each silicon diode in Figure 2-92 is forward-biased or reverse-biased. 6. Determine the voltage across each diode in Figure 2-92, assuming the practical model. 7. Determine the voltage across each diode in Figure 2-92, assuming an ideal diode. 8. Determine the voltage across each diode in Figure 2-92, using the complete diode model with ra = 10 1 and rk = 100 MO. 100V 102 35600 { 5

  • 2. Sketch Vout VS Vin and Vout if Vin-10sin(2TT60t) for each of the following circuits. You may a...

    2. Sketch Vout VS Vin and Vout if Vin-10sin(2TT60t) for each of the following circuits. You may assume that the forward diode drops for the diodes equals zero Vout s v out Vin 5 V Vout out 3. Repeat problem 2 but with forward diode drops equal to 0.7 V 4. What are the primary mechanisms for current flow in a. A forward biased diode. b. A reverse biased diode not in breakdown. c. A reverse biased diode in breakdown...
