Mobile cell phone signals are transmitted at a frequency of 900 MHz. If cell phone towers...

Mobile cell phone signals are transmitted at a frequency of 900 MHz. If cell phone towers are spaced 5 km apart, how many wavelengths of a cell phone signal correspond to the separation distance between two towers?

Group of answer choices

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

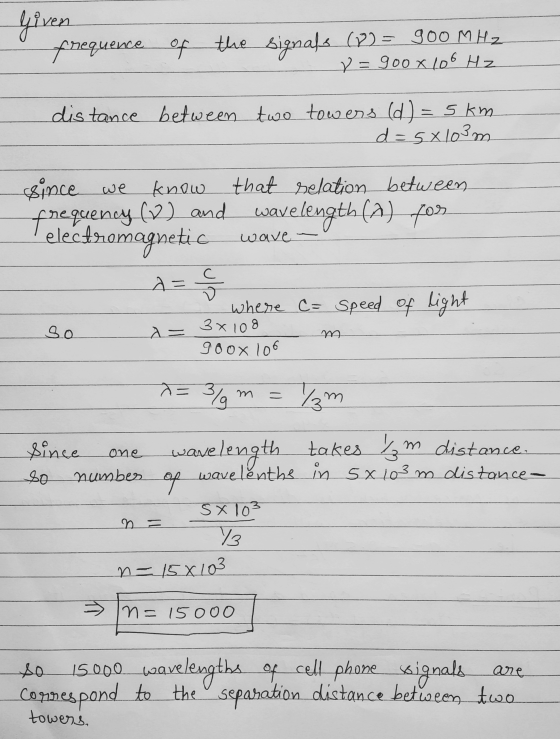

Given frequence of the signals (7) = 900 MHz y=goox 106 Hz distance between two towers (d) = 5km d=5x103m since we know that Thus answer is 15000 wavelenths.

Add a comment
