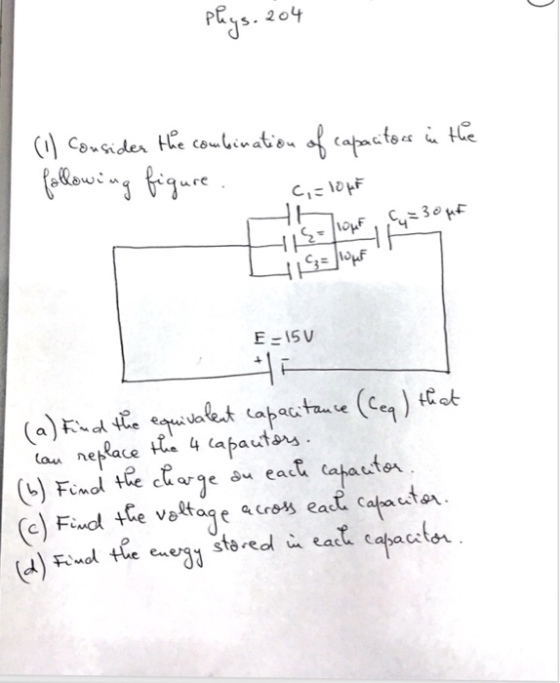

Ps. 2o4 I C Cに1ド Eは Eご15V (a ter d) Fcwol the emea

Question

Question

science physics

Answer 1

Answer #1

1. (a) C1, C2 and C3 are in parallel.

C = C1 + C2 + C3 = 30 uF

now C and C4 are in series,

Ceq = C C4 / (C + C4) = 15 uF

(b) Q4 = Q = CEq E = 225 uC

Q1 = Q2 = Q3 = 225/3 = 75 uC

(C) V1 = V2 = V3 = 75uC / 10uF = 7.5 Volt

V4 = 225 / 30 = 7.5 Volt

(d) U = C V^2 /2

U1 = U2 = U3 = 281 x 10^-6 J

U4 = 843.7 x 10^-6 J

Answer 2

Similar Homework Help Questions

Please answer problem 6, parts A,B and C. b) dcett 50.3 ご ·412 375 303 Go1325...

Please answer problem 6, parts A,B and C. b) dcett 50.3 ご ·412 375 303 Go1325 Pa Problem 6 The P-V diagram relates to a fixed quantity of O2, assumed to be an ideal gas. The temperature at point C is 130°C. P. 6o7.95 6atm i3Goc (a) What is the total mass of O2? (8 points) 130个273t. T, 403 k, Pa 0.08 265 7 rno1に 2 atm A-ヤ13 3 liters 8 liters V (b) What is the heat added to...
Use the following values ifneeded: e=1.6x10"C; に90x10,Nnr/e. Solve the problems below if the location of some...

Use the following values ifneeded: e=1.6x10"C; に90x10,Nnr/e. Solve the problems below if the location of some points are given as: Point A is at position (-3.0j +4.0k)cm; Point B is at position (4.0k)m Point C is at position (3.0i-2)+5.0k)cm Point D is at position (-3.0jam 1. Charges of-4.0 uC and +9.0 C are at A and B respectively. What is the electric field at point D? 2. Charges of-40pC and +90 μC are at A and B respectively. What is...

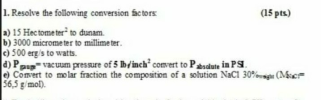

1. Resolve the following conversion factors. (15 pts) a) 15 Hec tome ter to dunam. b)...
