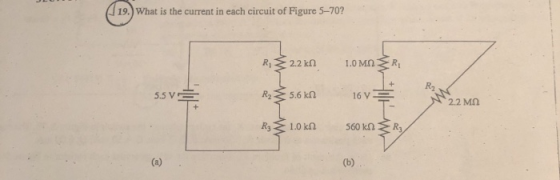

19. What is the current in each circuit of Figure 5-70? RS 1.0 MnR 2.2 kn...

Question

Question

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

Riz Ga tor 2.2 kN > w 5.6 k 2023 R4Z 10.0 k 12 +12 V...

Riz Ga tor 2.2 kN > w 5.6 k 2023 R4Z 10.0 k 12 +12 V R2 Z 4.7 k12 Figure 10–3 As a check on your solution of the circuit in Figure 10-3, apply Kirchhoff's voltage law to each of two separate paths around the circuit. Show the application of the law. 3. Show the application of Kirchhoff's current law to the junction of R, and Rs of the circuit in Figure 10-3.
for the circuit in the figure above, what are the currents through and potential's across each...

for the circuit in the figure above, what are the currents through and potential's across each of the resistors? RS RG w RT For the circuit in the figure above. V - 12 V. R2 -5 0.12 -10 . R3 - 8 OR-20Rs - 3 . R - 70. and Ry - 90. What are the currents through and potentials across each of the resistors?
The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three...

The circuit shown in the figure below contains three resistors (R1, R2, and Rs) and three batteries (VA. Vg, and Vc). The resistor values are: R1-2 Ohms, R-R3=8 Ohms, and the battery voltages are VA-25 V, V3=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA ve R2 R3 O 0.75 W 1.25 W 267 W 4.2 w O 5.5 W

Voltage and Current Division For the circuit shown, calculate V. V and Vs when V. =...

Voltage and Current Division For the circuit shown, calculate V. V and Vs when V. = 7 V, R; = 18 2. R2 = 66 2. R3 = 57 2. R4 = 37 and Rs = 332 Express your answer to two significant figures, with appropriate units View Available Hint(s) @? R-180 R2 = 660 + V + 12 0.597 V = 7 V R3 - 570 V 1.89 V R$ = 33 R = 37 Vs + - V4...
R R2 V RS 두 R3 RA The figure shows a circuit with a battery and...

R R2 V RS 두 R3 RA The figure shows a circuit with a battery and five resistors. What is the current through and the potential difference across resistors R1 and Rz? R1 = 7.00 2, R2 = 5.00 2, R3 = 3.00 2, R4 = 14.0 2, R3 = 4.002, and V = 23.0 v. Current through R : Potential difference across R : Current through R2: Potential difference across R2: | Submit Answer Tries 0/6
Solve each practice problem. TYPE solutions in engineering notation TYPE solutions in engineering notation. Calcula...

Solve each practice problem. TYPE solutions in engineering notation TYPE solutions in engineering notation. Calculate the component voltages and branch currents for the circuit shown in Figure 6.40, along with the values of I, and Rr. 3. R3 2 kn R4 4.7 k R1 10 k Vs 26 V R5 3.3 k R2 3 kn FIGURE 6.40 Calculate the component currents and loop voltages for the circuit shown in Figure 6.42, along with the values of I and Rr 5....

3-F) b. Vout = 0.99 Vin 3-E) For the following circuit, with Ri 18 k2, R2...

3-F) b. Vout = 0.99 Vin 3-E) For the following circuit, with Ri 18 k2, R2 15 k(2, R6 = 40 kQ, V,-10 V, and V,-7 V, find: 22 k2, R 30 k2, R4 20 kQ, Rs- a) the current through Ri, R3, & R6 b) the voltage across R2, R4, & Rs Rs V, 3-F) For the following circuit, what is Vout in terms of Vin for each case? a) R1-100 ?, R2-1 k(2, and R3 = 1.0 M(2...
Q2. For the op-amp circuit as shown below, given that RS = 49.5 k, RL =...

Q2. For the op-amp circuit as shown below, given that RS = 49.5 k, RL = 12 k 2, R1 = 10 kO, R2 = 9 ㏀, R3 = 7.5 ko, R4 = 5 ㏀R5 = 2.2 k2 Ry vo Ry Ri Rs (a) Determine the voltage gain G1-vo1/vs: Submit Answer Tries o/5 (b) Determine the voltage gain G2-vo/vs: Submit Answer Tries o/5 Q3. For the op-amp circuit shown below, find the value of VO, where R1 = 20 Ω,...
Consider the electric circuit shown in the figure. Assume that V = 21.4 V, R1 =...

Consider the electric circuit shown in the figure. Assume that V = 21.4 V, R1 = R2 = R3 = R4 = R5 = 3.00 2. R , R2 R3 RA RS What is the equivalent resistance of the circuit? Submit Answer Tries 0/12 What is the electric current flowing through resistor R2? Submit Answer Tries 0/12

or all the calculations and simulations use the circuit given in Figure 3.1 using the following...

or all the calculations and simulations use the circuit given in Figure 3.1 using the following values 1.5 k, R2 1 kQ, R 3.3 kQ, R4 5.6 k2, Rs 2k2, Vs1 6 V, and Vs2 -10 V R5 2 V1 2 R3 V3 V4 1,5 3.3 R435 S2 SI Vo Figure 3.1-Circuit containing 5 nodes 43
