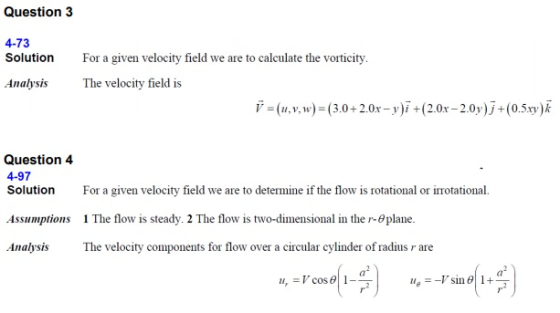

Question 3 4-73 Solution For a given velocity field we are to calculate the vorticity Analysis...
Question 1 (10 points) Rotational Flow and Vorticity The velocity components for a two-dimensional flow are...
Question 1 (10 points) Rotational Flow and Vorticity The velocity components for a two-dimensional flow are u = ln hie) v = created where C is a constant. Is the flow irrotational?
. Consider the following two dimensional velocity field ~v(x, y) = −xy3ˆi + y 4 ˆj....
. Consider the following two dimensional velocity field ~v(x, y) = −xy3ˆi + y 4 ˆj. (a) Sketch a figure of the streamlines for this flow field. Include arrows on your streamlines to indicate the direction of the flow. (b) Is this flow field incompressible or compressible? Show all work. (c) Derive an expression for the vorticity vector ~ζ for this flow field. (d) Is this flow field rotational or irrotational? Provide some evidence in support of your answer
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti...
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti – 2 yı where the velocity is in ft/s when x, y, and t are in feet and seconds, respectively. (a) Is flow steady or unsteady (b) Determine the expression of acceleration (c) Check if the flow is compressible or incompressible (d) Check if the flow is rotational or irrotational (e) Sketch the streamlines of t= ls on a x-y plane W
Problem M.7 The velocity and pressure are given at two points in the flow field. Assume...
Problem M.7 The velocity and pressure are given at two points in the flow field. Assume that the two points lie in a horizontal plane and that the fluid density is uniform in the flow field and is equal to 1000 kg/m3. Assume steady flow. Do necessary computation, then determine which of the following statements is true (a) The flow in the contraction is nonuniform and irrotational. (b) The flow in the contraction is uniform and irrotational. (c) The flow...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u = -Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y ? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and lines (if exist) of the flow field. Briefly explain how...
Consider the following steady, two-dimensional, incompressible velocity field V - (10x +2) i+ (-10y -4) j....
Consider the following steady, two-dimensional, incompressible velocity field V - (10x +2) i+ (-10y -4) j. Is this flow field irrotational? If so, generate an expression for the velocity potential function. 5.
can you solve the last question (e) Q1. Consider a steady, two-dimensional, incompressible flow field has...
can you solve the last question
(e)
Q1. Consider a steady, two-dimensional, incompressible flow field has the velocity potential a) b) c) 2 (x-7)(x+y) Determine the velocity components and verify that continuity is satisfied. [4 marks] Verify that the flow is irrotational. [2 marks] Determine the corresponding stream function. [4 marks) Now, consider a steady, two-dimensional, incompressible flow defined by velocity components u = ax + b&v=-ay + cx, where a, b and care constants. Neglect gravity. d) e) Show...
3. (4 pts) Write down the velocity potential for a lifting circular cylinder in a uniform...
3. (4 pts) Write down the velocity potential for a lifting circular cylinder in a uniform flow of velocity V. Find the velocity components in this flow field. For what value of the circulation will the stagnation point be located on the surface of the cylinder at: (a) (r, 8) = (RO), (b) (r,®) = (R, -*/2).
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1200 kg/m2, Uoo- 20 m/s and cylinder radius R 0.01 m 1 cm and Az 1 m Note: The flow does not cross streamlines, so there is no flow across the side boundaries. Exit (2) NO SCALE Variable u vs y at x2-0 Inlet (1) y- H1 and v 0 constant u Uo constant v0 A) Find mass...
Question 1 (10 points) Rotational Flow and Vorticity The velocity components for a two-dimensional flow are u = ln hie) v = created where C is a constant. Is the flow irrotational?
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti – 2 yı where the velocity is in ft/s when x, y, and t are in feet and seconds, respectively. (a) Is flow steady or unsteady (b) Determine the expression of acceleration (c) Check if the flow is compressible or incompressible (d) Check if the flow is rotational or irrotational (e) Sketch the streamlines of t= ls on a x-y plane W
Problem M.7 The velocity and pressure are given at two points in the flow field. Assume that the two points lie in a horizontal plane and that the fluid density is uniform in the flow field and is equal to 1000 kg/m3. Assume steady flow. Do necessary computation, then determine which of the following statements is true (a) The flow in the contraction is nonuniform and irrotational. (b) The flow in the contraction is uniform and irrotational. (c) The flow...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u = -Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y ? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and lines (if exist) of the flow field. Briefly explain how...
Consider the following steady, two-dimensional, incompressible velocity field V - (10x +2) i+ (-10y -4) j. Is this flow field irrotational? If so, generate an expression for the velocity potential function. 5.
can you solve the last question
(e)
Q1. Consider a steady, two-dimensional, incompressible flow field has the velocity potential a) b) c) 2 (x-7)(x+y) Determine the velocity components and verify that continuity is satisfied. [4 marks] Verify that the flow is irrotational. [2 marks] Determine the corresponding stream function. [4 marks) Now, consider a steady, two-dimensional, incompressible flow defined by velocity components u = ax + b&v=-ay + cx, where a, b and care constants. Neglect gravity. d) e) Show...
3. (4 pts) Write down the velocity potential for a lifting circular cylinder in a uniform flow of velocity V. Find the velocity components in this flow field. For what value of the circulation will the stagnation point be located on the surface of the cylinder at: (a) (r, 8) = (RO), (b) (r,®) = (R, -*/2).
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1200 kg/m2, Uoo- 20 m/s and cylinder radius R 0.01 m 1 cm and Az 1 m Note: The flow does not cross streamlines, so there is no flow across the side boundaries. Exit (2) NO SCALE Variable u vs y at x2-0 Inlet (1) y- H1 and v 0 constant u Uo constant v0 A) Find mass...
