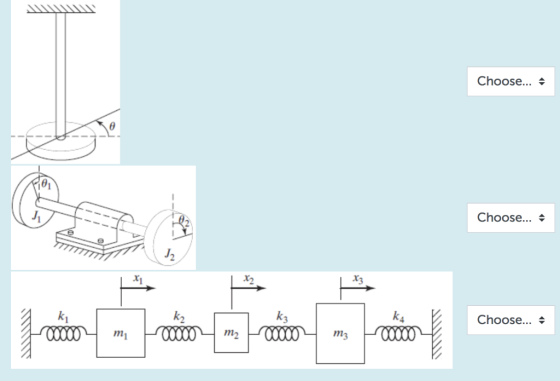

Match. The degree of freedom of these systems.

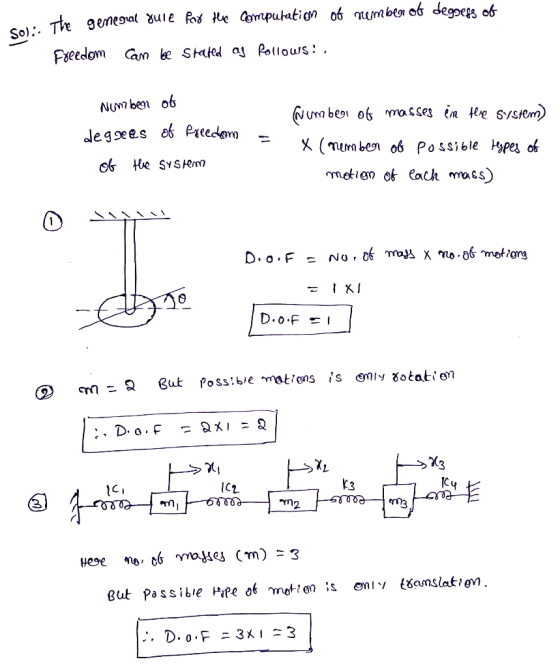

Homework Answers
Add Answer to:
Match. The degree of freedom of these systems.
Choose... + 01 Choose... + Ху k2 Choose......
Please provide references to the Model/Equations used from the textbook. 1. A Three Degree of Freedom...
Please provide references to the Model/Equations used from the
textbook.
1. A Three Degree of Freedom discretized lumped parameter system is shown in the figure. (a). Derive the equations of motion for the system using Newton's Second Law of Motion or Energy Methods. (b). Transform the ordinary differential equations obtained into the matrix form. (C). Estimate the fundamental frequency of vibration of the system, assuming the mode shape and the following system parameters: ka=k, k2= 2k, k3 = 3k, m1...
A one-degree-of-freedom system has the following equation of motion 12)L cos where ki, k2 and k3...
A one-degree-of-freedom system has the following equation of motion 12)L cos where ki, k2 and k3 are known spring constants, L is a known length, is the generalized coordinate to describe the dynamical behavior of the system, c is a known damping constant. 1. Linearize equation 1 with respect to 0. 14 Points 2. Using the linearized equation previously obtained, calculate the natural circular frequency wn and the natural cyclical frequency f, [14 Points 3. Using the linearized equation previously...
Consider the multi-degree of freedom system shown in Fig 1. Let the first four spring constants...
Consider the multi-degree of freedom system shown in Fig 1. Let the first four spring constants k; = 1 N/m {i=1,..4}, the final spring constant be kg = 2 N/m, the exterior masses mi = m = 3 kg, and the interior masses m2 = m3 = 1 kg. Jovit cum alv Lampu Milli MÁV DLİNE Derive the set of scalar equations of motion of the system, written in ma- trix/vector form.
0.642 sin (21) 483. Consider the following two systems, and in each case determine if a...
0.642 sin (21) 483. Consider the following two systems, and in each case determine if a resonance response occurs. Imio ËL kj + kz - Kz7 L - K2 K2 - 1 kg + kz - K 0.23500 mi sin (2.7565561) L - K2 K2_ L2.97922 ( D0 m2 4kg, ki = 25 N/m, m2 = 9 kg, and k2 = 5 N/m. (a) O m 2 +
How many rotational degrees of freedom are there for linear and nonlinear molecules? Match the items...
How many rotational degrees of freedom are there for linear and nonlinear molecules? Match the items in the left column to the appropriate blanks in the sentences on the right. Reset Help one moment Linear molecules have of inertia; therefore, they have of freedom. two moments Nonlinear molecules have of inertia; therefore, they have of freedom. three moments four moments one rotational degree two rotational degrees three rotational degrees four rotational degrees
Determine the natural frequencies and vibration modes of the two degree of freedom rectilinear system shown...
Determine the natural frequencies and vibration modes of the two
degree of freedom rectilinear system shown in the following
figure.
please detail all the steps
ans:
k m, ww m2 DCL LEE LFF Оn1 — 0 k(m1+m2) Wn2 7ш.Тш X1 X2 -т, — Х, ( X2 X1 т2
b) A mechanism with 3-degree of freedom (DOF) is shown in the following figure. d3 02...
b) A mechanism with 3-degree of freedom (DOF) is shown in the following figure. d3 02 01 (3 marks) (4 marks) (6 marks) Assign coordinate frames as necessary based on D-H representation. Fill out the parameter table. iii) Determine the homogenous transformation matrix UTH ARi) "To Determine all the A matrices and iv) (2 marks)
b) A mechanism with 3-degree of freedom (DOF) is shown in the following figure. d3 02 01 (3 marks) (4 marks) (6 marks) Assign coordinate...
Find the number of degree of freedom Semester 1 2020 Topic1: Introduction Tutorial questions Questionl: Find...
Find the number of degree of freedom
Semester 1 2020 Topic1: Introduction Tutorial questions Questionl: Find dof of the following: zi to 01 22 A2 Z Z3 b)
14. There is a two-degree-of-freedom system with no external force as shown in Figure 4. Here,...
14. There is a two-degree-of-freedom system with no external force as shown in Figure 4. Here, kı=kz=k=10kN/m, ka=ks=2kN/m and m:=m2=2kg, answer the following. (25 points) 14-1. Find the equation of motion in matrix-vector form. 14-2. Find the natural frequencies W1, W2 (rad/sec) through the eigenvalue problem. 14-3. Find the eigenvectors corresponding to the eigenfrequencies through the eigenvalue problem, except that the first element is 1. X + ke ki 111; W ke Figure 4. Two degree of freedom model
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx =...
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx = F(1) Derive the condition that leads to divergent oscillations in each of the following cases: (a) when the forcing function is proportional to the displacement, F(t) = F,x(t); when the forcing function is proportional to the velocity, F(t) = Fox(t); and (c) when the forcing function is proportional to the acceleration, F(t) = F,x(t).
Please provide references to the Model/Equations used from the
textbook.
1. A Three Degree of Freedom discretized lumped parameter system is shown in the figure. (a). Derive the equations of motion for the system using Newton's Second Law of Motion or Energy Methods. (b). Transform the ordinary differential equations obtained into the matrix form. (C). Estimate the fundamental frequency of vibration of the system, assuming the mode shape and the following system parameters: ka=k, k2= 2k, k3 = 3k, m1...
A one-degree-of-freedom system has the following equation of motion 12)L cos where ki, k2 and k3 are known spring constants, L is a known length, is the generalized coordinate to describe the dynamical behavior of the system, c is a known damping constant. 1. Linearize equation 1 with respect to 0. 14 Points 2. Using the linearized equation previously obtained, calculate the natural circular frequency wn and the natural cyclical frequency f, [14 Points 3. Using the linearized equation previously...
Consider the multi-degree of freedom system shown in Fig 1. Let the first four spring constants k; = 1 N/m {i=1,..4}, the final spring constant be kg = 2 N/m, the exterior masses mi = m = 3 kg, and the interior masses m2 = m3 = 1 kg. Jovit cum alv Lampu Milli MÁV DLİNE Derive the set of scalar equations of motion of the system, written in ma- trix/vector form.
0.642 sin (21) 483. Consider the following two systems, and in each case determine if a resonance response occurs. Imio ËL kj + kz - Kz7 L - K2 K2 - 1 kg + kz - K 0.23500 mi sin (2.7565561) L - K2 K2_ L2.97922 ( D0 m2 4kg, ki = 25 N/m, m2 = 9 kg, and k2 = 5 N/m. (a) O m 2 +
How many rotational degrees of freedom are there for linear and nonlinear molecules? Match the items in the left column to the appropriate blanks in the sentences on the right. Reset Help one moment Linear molecules have of inertia; therefore, they have of freedom. two moments Nonlinear molecules have of inertia; therefore, they have of freedom. three moments four moments one rotational degree two rotational degrees three rotational degrees four rotational degrees
Determine the natural frequencies and vibration modes of the two
degree of freedom rectilinear system shown in the following
figure.
please detail all the steps
ans:
k m, ww m2 DCL LEE LFF Оn1 — 0 k(m1+m2) Wn2 7ш.Тш X1 X2 -т, — Х, ( X2 X1 т2
b) A mechanism with 3-degree of freedom (DOF) is shown in the following figure. d3 02 01 (3 marks) (4 marks) (6 marks) Assign coordinate frames as necessary based on D-H representation. Fill out the parameter table. iii) Determine the homogenous transformation matrix UTH ARi) "To Determine all the A matrices and iv) (2 marks)
b) A mechanism with 3-degree of freedom (DOF) is shown in the following figure. d3 02 01 (3 marks) (4 marks) (6 marks) Assign coordinate...
Find the number of degree of freedom
Semester 1 2020 Topic1: Introduction Tutorial questions Questionl: Find dof of the following: zi to 01 22 A2 Z Z3 b)
14. There is a two-degree-of-freedom system with no external force as shown in Figure 4. Here, kı=kz=k=10kN/m, ka=ks=2kN/m and m:=m2=2kg, answer the following. (25 points) 14-1. Find the equation of motion in matrix-vector form. 14-2. Find the natural frequencies W1, W2 (rad/sec) through the eigenvalue problem. 14-3. Find the eigenvectors corresponding to the eigenfrequencies through the eigenvalue problem, except that the first element is 1. X + ke ki 111; W ke Figure 4. Two degree of freedom model
3. Consider the equation of motion of a single-degree-of-freedom system: mi + ci + kx = F(1) Derive the condition that leads to divergent oscillations in each of the following cases: (a) when the forcing function is proportional to the displacement, F(t) = F,x(t); when the forcing function is proportional to the velocity, F(t) = Fox(t); and (c) when the forcing function is proportional to the acceleration, F(t) = F,x(t).
