Homework Answers

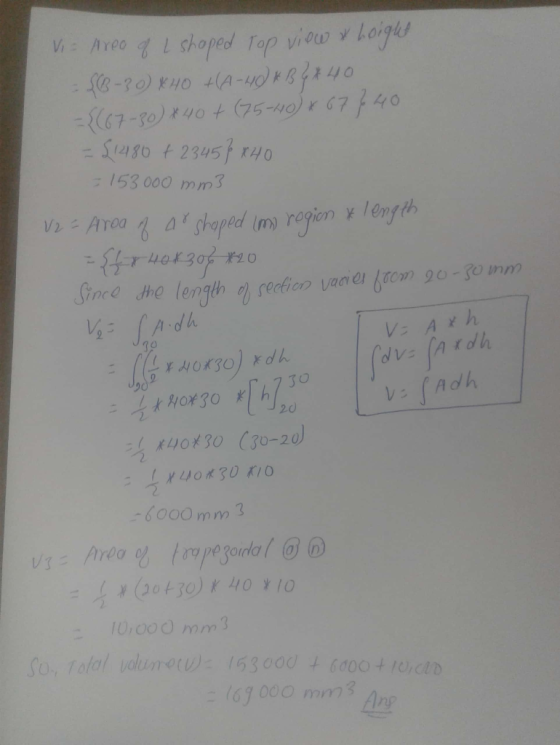

The question that you have
posted is unclear , i have problem whether (B or 8 ) on the given
orthographic projection , but i tried my best .Somewhat difficulty
is also there , so i request you to see this solution and think
comparing given problem in real life and start to solve other
problem. There in slope section opposite side have not same length
so i used integration . This type of question will be easy to you
if and only you are starting thinking practically . THANK YOU.
Add Answer to:

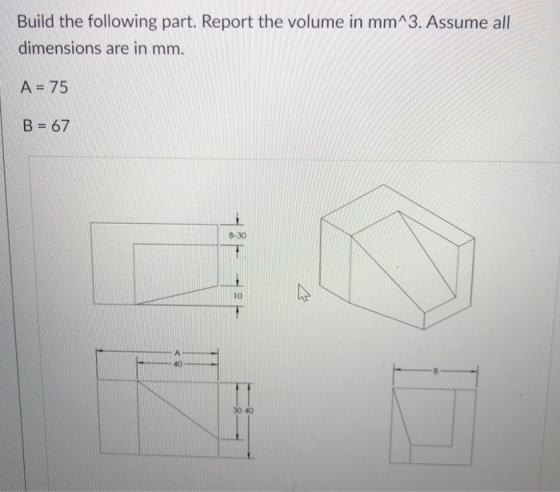

Build the following part. Report the volume in mmA3. Assume all dimensions are in mm. A-75...
