Question

Hello I just need the code for this GUI thanks

Also computer screenshot of the code will be helpful

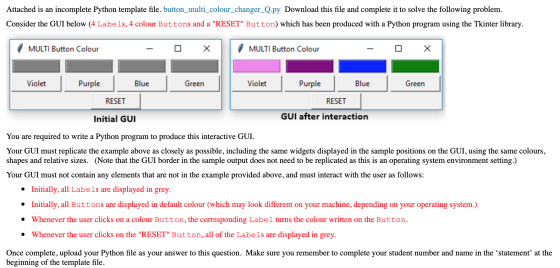

Attached is an incomplete Python template file. button_multi_colour_changer_Q.py Download this file and complete it to solve the following problem. Consider the GUI below (4 Labels, 4 colour Buttons and a "RESET" Button) which has been produced with a Python program using the Tkinter library. MULTI Button Colour - a X MULTI Button Colour - O X Violet Purple Blue | Green | Violet Purple Blue Green RESET RESET Initial GUI GUI after interaction You are required to write a Python program to produce this interactive GUI. Your GUI must replicate the example above as closely as possible, including the same widgets displayed in the sample positions on the GUI, using the same colours, shapes and relative sizes. (Note that the GUI border in the sample output does not need to be replicated as this is an operating system environment setting.) Your GUI must not contain any elements that are not in the example provided above, and must interact with the user as follows: • Initially, all Labels are displayed in grey. • Initially, all Buttons are displayed in default colour (which may look different on your machine, depending on your operating system.) • Whenever the user clicks on a colour Button, the corresponding Label turns the colour written on the Button. • Whenever the user clicks on the "RESET" Button, all of the Labels are displayed in grey. Once complete, upload your Python file as your answer to this question. Make sure you remember to complete your student number and name in the 'statement at the beginning of the template file.

Answer 1

Detailed input (Source code) screenshots and output screenshots have been provided for user convenience please go through it and modify any thing if required.

Thank You.

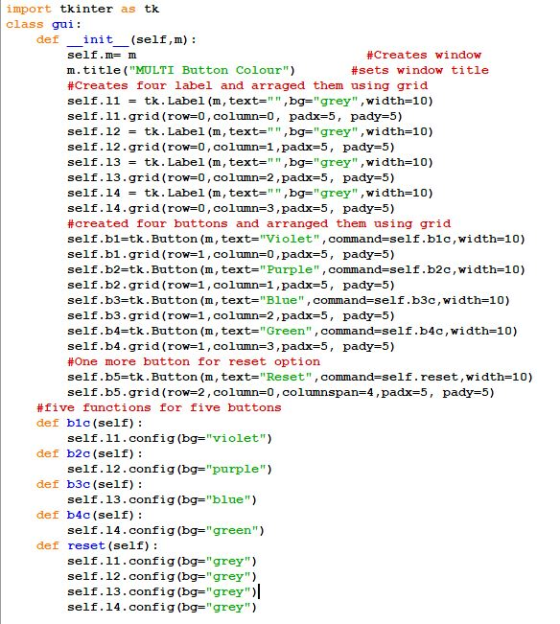

source code:

import tkinter as tk
class gui:
def __init__(self,m):
self.m= m #Creates window
m.title("MULTI Button Colour") #sets window title

#Creates four label and arraged them using grid
self.l1 = tk.Label(m,text="",bg="grey",width=10)
self.l1.grid(row=0,column=0, padx=5, pady=5)
self.l2 = tk.Label(m,text="",bg="grey",width=10)
self.l2.grid(row=0,column=1,padx=5, pady=5)
self.l3 = tk.Label(m,text="",bg="grey",width=10)
self.l3.grid(row=0,column=2,padx=5, pady=5)
self.l4 = tk.Label(m,text="",bg="grey",width=10)
self.l4.grid(row=0,column=3,padx=5, pady=5)
#created four buttons and arranged them using grid
self.b1=tk.Button(m,text="Violet",command=self.b1c,width=10)
self.b1.grid(row=1,column=0,padx=5, pady=5)
self.b2=tk.Button(m,text="Purple",command=self.b2c,width=10)
self.b2.grid(row=1,column=1,padx=5, pady=5)
self.b3=tk.Button(m,text="Blue",command=self.b3c,width=10)
self.b3.grid(row=1,column=2,padx=5, pady=5)
self.b4=tk.Button(m,text="Green",command=self.b4c,width=10)
self.b4.grid(row=1,column=3,padx=5, pady=5)
#One more button for reset option
self.b5=tk.Button(m,text="Reset",command=self.reset,width=10)
self.b5.grid(row=2,column=0,columnspan=4,padx=5, pady=5)
#five functions for five buttons
def b1c(self):
self.l1.config(bg="violet")
def b2c(self):
self.l2.config(bg="purple")
def b3c(self):
self.l3.config(bg="blue")
def b4c(self):
self.l4.config(bg="green")
def reset(self):
self.l1.config(bg="grey")
self.l2.config(bg="grey")
self.l3.config(bg="grey")
self.l4.config(bg="grey")

root=tk.Tk()
gui = gui(root)
root.mainloop()

import tkinter as tk class gui def init (self,m) self.m m #Creates window m. title ("MULTI Button Colour") #sets window title #Creates four label and arraged them using grid self.11 tk. Label (m, text="", bg = " grey", width - 10) self.11.grid (row-0, column=0, padx-5, pady- 5) self.12 tk. Label (m, text ="", bg -"grey", width = 10) self.12.grid (row-0, column=1,padx-5, pady- 5) self.13 tk. Label (m, text ="", bg-"grey", width =10) self.13.grid (row-0, column=2, padx-5, pady- 5) tk. Label (m, text="", bg=" grey", width= 10) self.14.grid (row-0, column=3,padx-5, pady- 5) self.14 #created four buttons and arranged them using grid self.bl-tk. Button (m, text="Violet",command-self.blc, width=10) self.bl.grid (row-1, column-0,padx-5, pady- 5) self.b2=tk. Button (m, text="Purple", command-self.b2c, width=10) self.b2.grid (row-1, column=1,padx-5, pady-5) self.b3-tk. Button (m, text= "Blue", command-self.b3c,width =10) self.b3.grid (row-1, column-2,padx-5, pady-5) self.b4-tk. Button (m, text="Green", command-self.b4c,width =10) self.b4.grid (row-1, column=3,padx-5, pady- 5) #One more button for reset option self.b5-tk. Button (m, text="Reset", command-self.reset, width =10) self.b5.grid (row-2, column=0, columnspan-4,padx-5, pady-5) #five functions for five buttons def blc (self) self.11.config (bg="violet") def b2c (self) self.12.config (bg-"purple") def b3c (self) self.13.config (bg-"blue") def b4c (self) self.14.config (bg="green") def reset (self) self.11.config (bg- "grey") self.12.config (bg="grey") self.13.config (bg=" grey") self.14.config (bg-"grey")

root- tk. Tk ) gui gui (root) = root.mainloop (

output:

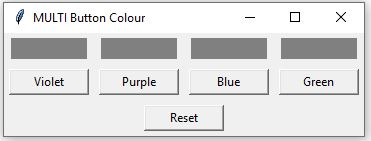

MULTI Button Colour X Violet Purple Blue Green Reset

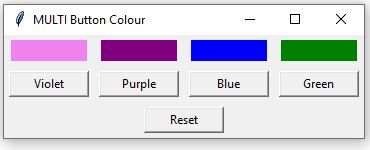

MULTI Button Colour X Violet Purple Blue Green Reset
