Find Fbc, Ax, Ay 1. Determine the reactions at the pin 4 and the tension in...

Question

Question

Find Fbc, Ax, Ay

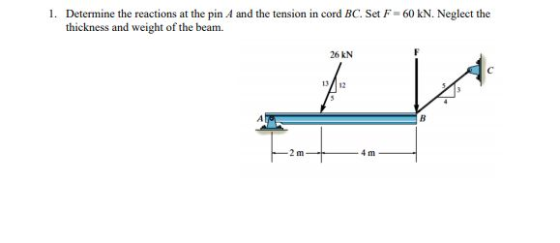

1. Determine the reactions at the pin 4 and the tension in cord BC. Set F-60 KN. Neglect the thickness and weight of the beam

engineering Mechanical-Engineering

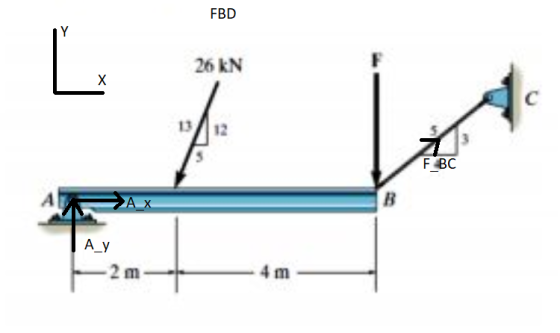

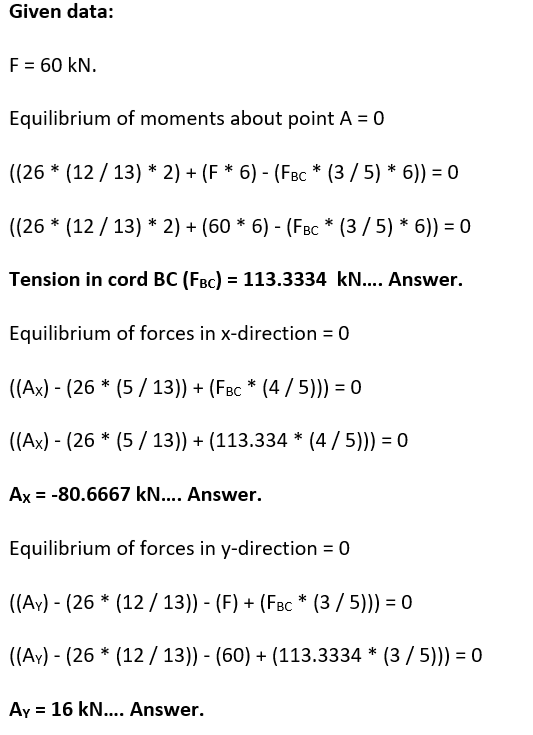

Answer 1

Answer #1

Hey, in case of any doubt feel free to drop me a comment.

Answer 2
