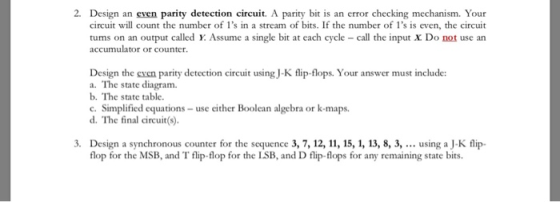

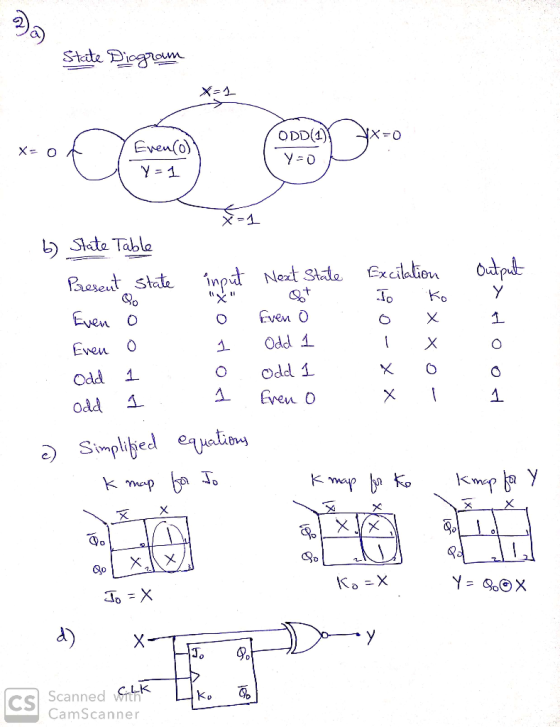

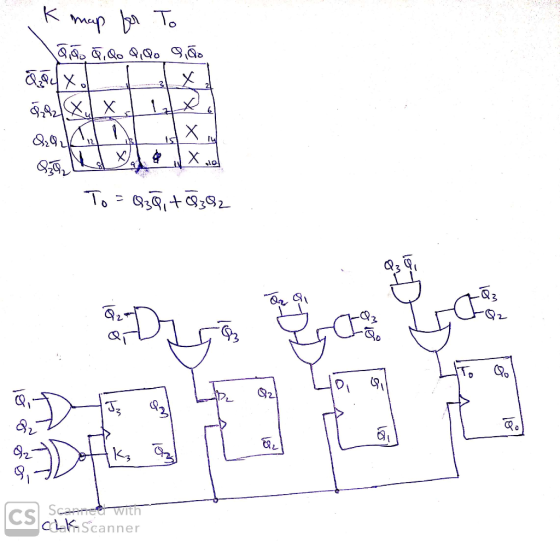

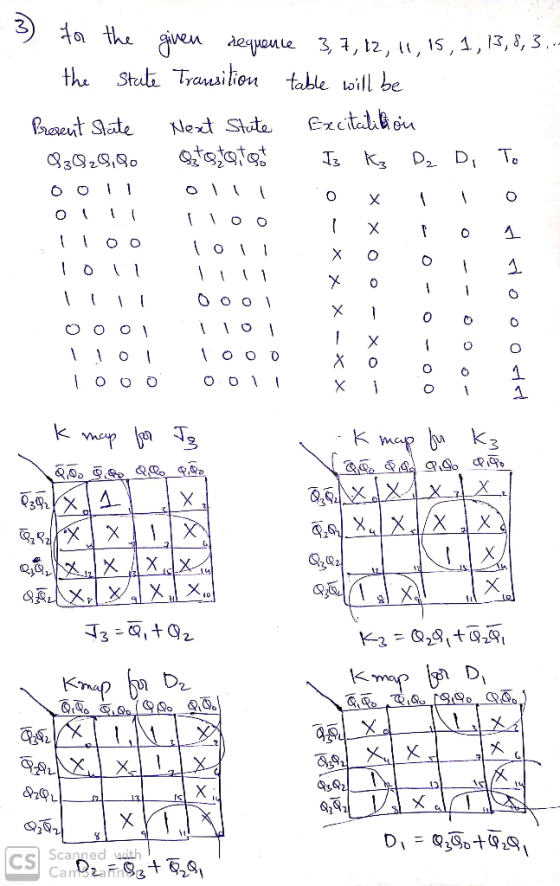

2. Design an even parity detection circuit. A parity bit is an error checking mechanism. Your...
design 4-bit synchronous up counter using JK flip flop. show truth table, k-maps, and circuit digram using logic gates.
Design a sequential circuit for a sequence detector that detects the sequence 10011. A continuous bit stream is fed at the input of the circuit. Every time the circuit detects the sequence 10011, an output line is made HIGH a) Sketch Mealy FSM for the sequence detector. b) Tabulate the state table c) Using K-maps, write down the simplified Boolean expressions of the flip-flops input equations using T flip-flops d) Sketch the logic circuit diagram
1) Design a synchronous 3-bit binary UP/DOWN counter uses the following counting pattern 10.2.3.7.6.40.1.3...) the counter will count in this pattern indefinitely when the input X is equal to 1. When the input the counter will reverse direction and count in the opposite pattern 0. 4 7310) Complete the state diagram, transition table, New state s and solve for the recitation equations for flipflops that will perform this function. (You do not need to draw the flip-flops Use the state...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
design a serial even parity generator, a binary sequence of arbitrary length will be presented to the partity generator circuit on input x. when a given bit is presented on input x, the corresponding even parity bit is to appear during the same clock cycle on output z. to indicate that a sequence is complete and that the circuit is to be initialized to receive another sequence, the input Y becomes 1 for one clock cycle. draw the state diagram...
Design a synchronous sequential circuit with an input Y'. The circuit must count in ascending 3-bit Gray code if Y'=1, and in descending order if Y'=0. Use J-K flip flops activated by a rising signal.
please show your work
4. Design a sequential circuit using D flip-flops that produces the following state table: 1 Present Next QU Q.Qo Qu Q.Qo 0 00 XX 0 01 00 0 10 01 0 11 0 10 00 01 01 10 10 0 11 11 X XX 1 1 1 There are three bits of state split into a single bit Qu and an unsigned two-bit number Q1 Qo. You may assume that the counter does not start in...
Design a synchronous sequential counter circuit that has the state diagram shown in figure 1. Use both D-type and T-type Flip Flops in your design. Show all your work in details. Extra credit will be given for implementation using other types of Flip Flops 3 4 Figure 1 Deliverables: 1. State Transition Table 2. K-Maps 3. Logical Expressions (Minimal Form) 4. Schematic Diagrams of the two designs 5. Verification steps for both designs.
help with the next problem Design a digital circuit that is a 2-bit, upstream and descending synchronous counter that with an input A, defines whether to ascend or descend. Comply with: A x 0 (ascending) A s 1 (descend), use Flip-Flop type D that is cyclic.
For error detection in a 3 bit data (XYZ): a) Design an odd parity generator. b) Design an odd parity checker
