A d.c shunt motor has armature and field resistance of 0.2 Ω and 110 Ω respectively....

A d.c shunt motor has armature and field resistance of 0.2 Ω and 110 Ω respectively. The motor is running at 1200 rpm and drawing 15 A from 110 V supply. If the field resistance is decreased by 10%, calculate the new steady state armature current and speed of the motor. Assume the load torque to be constant
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

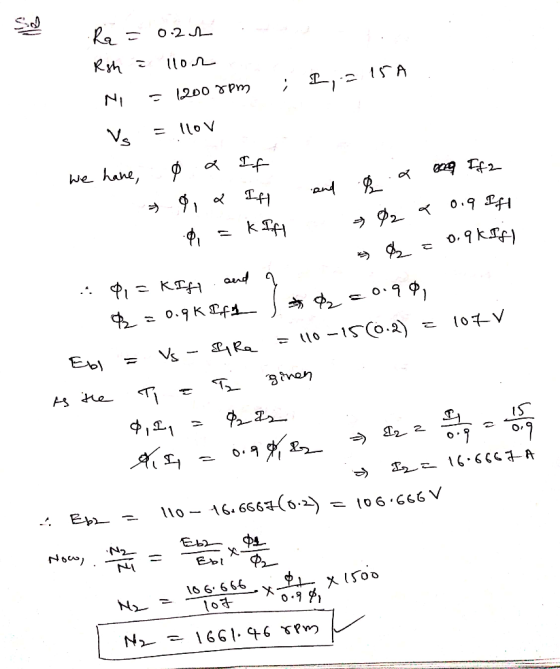

we hahe 2一 1o 6. 6 66
