Question

Integer division is division that ignores remainder. All digits behind the decimal point are discarded. In other words, decimal point division reports 4/2 = 2.0 and 4/3 = 1.33. In integer division, 4/2 = 2 and 4/3 = 1. Similarly, in integer division, 6/2 = 3 and 7/2 = 3. Create the truth table. Implement an IDIV4 component that completes integer divisionby-4 on a 4-bit input using a VHDL with-select architecture. (Think about the maximum 4-bit input value 15. What is the maximum output? Well, 15/4 = 3.75 = 3 in integer division. Thus, the maximum output is 3 and a 2-bit output bus is required.) Simulate to verify correct operation. Print VHDL, RTL, and simulation waveforms as part of your submission packet

Answer 1

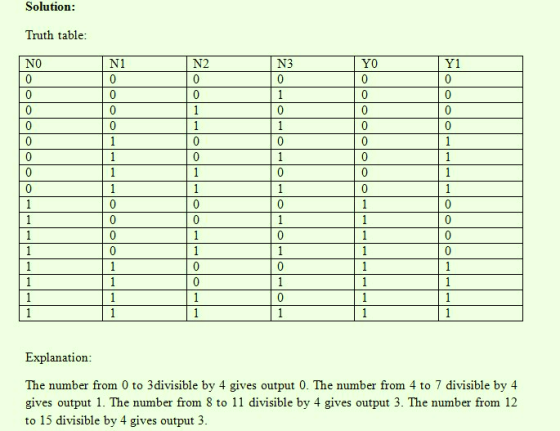

Solution Truth table N0 N1 N2 N3 YO Y1 Explanation The number from 0 to 3divisible by 4 gives output 0. The number from 4 to 7 divisible by 4 gives output 1. The number from 8 to 11 divisible by 4 gives output 3. The number from 12 to 15 divisible by 4 gives output 3
