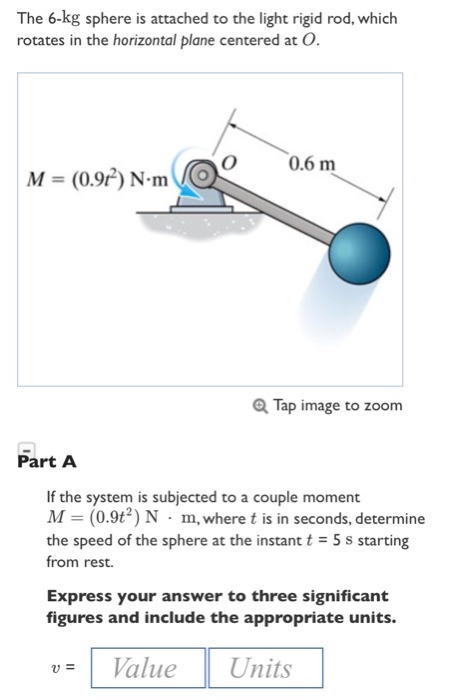

The 6-kg sphere is attached to the light rigid rod, which rotates in the horizontal plane...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

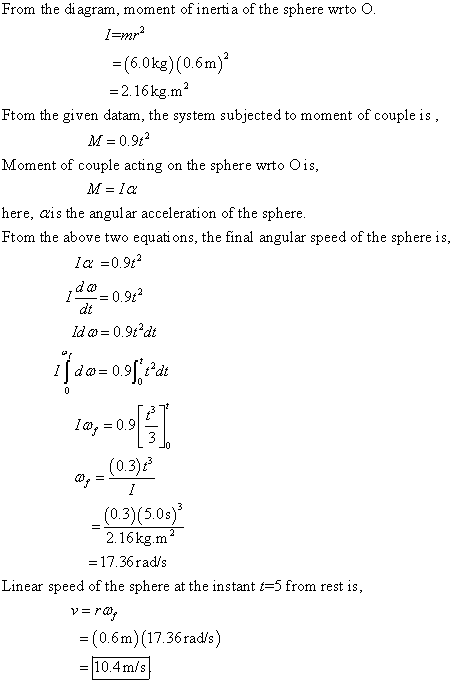

From the diagram, moment of inerti a of the sphere wrto O (6.0kg)(0.6m) 2.16kg.m2 Ftom the given datam, the system subjected

Answer 2
