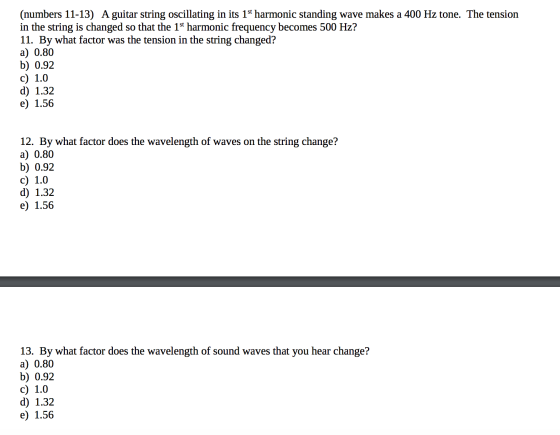

A guitar string oscillating in its 1^st harmonic standing wave makes a 400 Hz tone. The...

Question

Question

A guitar string oscillating in its 1^st harmonic s

science physics

Answer 1

Answer #1

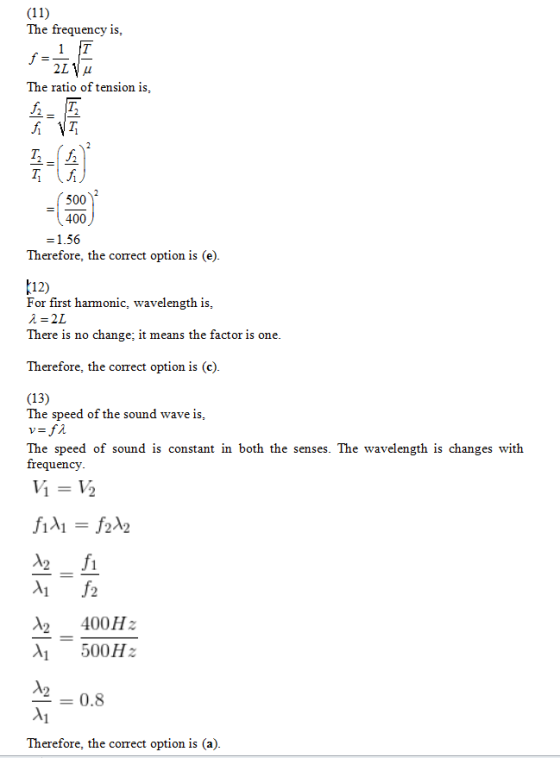

The frequency is, The ratio of tension is, T, f 500 400 Therefore, the correct option is (e) (12) For first harmonic, wavelen

Answer 2
