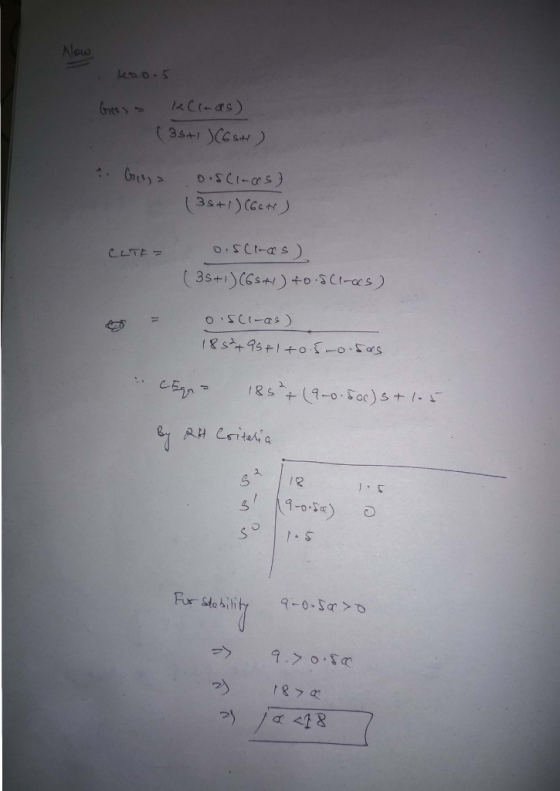

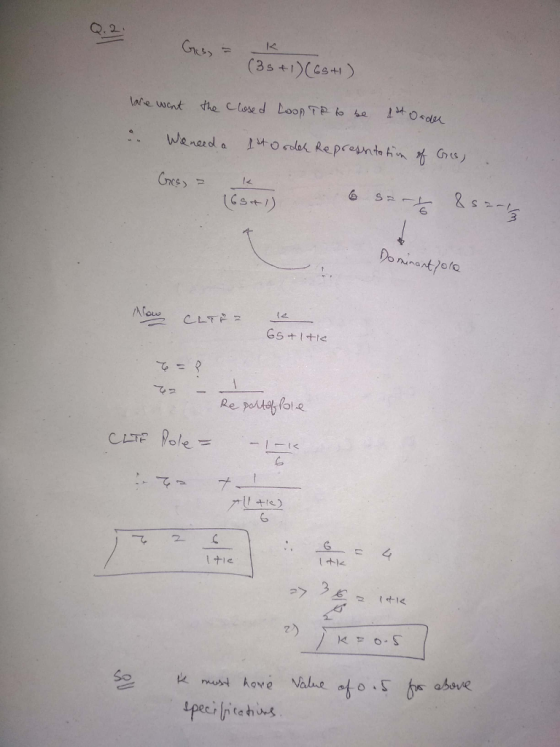

This is what i could
understand.I have provided the solution.Hope this helps.
Add Answer to:

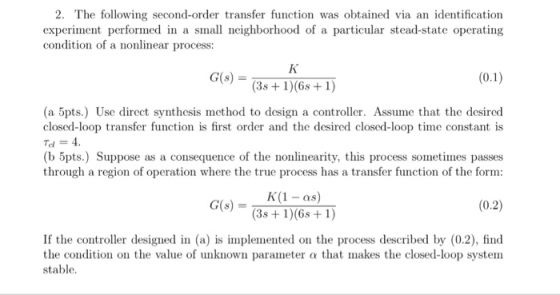

2. The following second-order transfer function was obtained via an identification experiment performed in a small...
A second-order process is described by its transfer function G(s) = (s+1)(843) and a PI controlle...
A second-order process is described by its transfer function G(s) = (s+1)(843) and a PI controller by Consider feedback control with unit feedback gain as shown in Figure 1 A disturbance D(s) exists, and to achieve zero steady-state error, a small integral component is applied. Technical limitations restrict the controller gain kp to values of 0.2 or less. The goal is to examine the influence of the controller parameter k on the dynamic response. D(s) Controller Process X(s) Y(s) Figure...
show steps please 10 A second-order open-loop system with transfer function G(s) = is to be...
show steps please
10 A second-order open-loop system with transfer function G(s) = is to be $2+45+10 controlled with unity negative feedback. (a) Derive the error transfer functions E(s) of the closed-loop system subjected to a unit step input, when using a P controller and a PI controller, respectively, in terms P control gain kp, and PI control gains kp and ki, respectively. [7] (b) Determine the steady-state errors in (a). Briefly comment on the differences in control performance by...
b) Given a second order system with the following open loop transfer function where damping ratio,...
b) Given a second order system with the following open loop transfer function where damping ratio, } = 0.707 and natural frequency, Wn= 2.5. wn? G(S) = S2 + 23wns +wn? i. Determine the steady state error to an appropriate input via a calculation method using the transfer function. Compare your answer with the steady state error from the exact frequency response for this system given in Figure Q4(b). (5 marks) ii. Evaluate the difference of the exact frequency response...
Question 2 20 Marks Consider the transfer function, (6-1)(8-2) (82 7s 12)(s +13) G(s) = 1....
Question 2 20 Marks Consider the transfer function, (6-1)(8-2) (82 7s 12)(s +13) G(s) = 1. Using direct synthesis, synthesize a biproper controller with integral action for this process The desired complementary sensitivity function is given by: (T(s)d- where r is a positive integer to be specified in the design, η1 and η2 are constants to be assigned. 2. What will be the dominant feature of the closed-loop response of the output to a step change in the set-point? Justify...
I am stuck on how to create the transfer function to be suitable for a bide plot, then actually plotting the Bode diagram Question 3 A third order process is to be controlled by a proportional con...
I am stuck on how to create the transfer function to
be suitable for a bide plot, then actually plotting the Bode
diagram
Question 3 A third order process is to be controlled by a proportional controller (Kp) and is to havea unity feedback closed loop arrangement. The process consists of three first order lags that have the following parameters GP1-1s+1) GP2 8/(s+2) GP3 5(s+0.2) A) Draw the system closed block diagram 3 marks B) Using the Log-Linear graph paper...
Tutorial -On PID control (Control System: Instructor slides and lab) Consider a second order mass...
part 2 & part 3 please...
Tutorial -On PID control (Control System: Instructor slides and lab) Consider a second order mass-force system to study its behavior under various forms of PID control xtn fon force In Disturbance force: 50) (i.e. wind force) Part I (dealing with the plant/process) 1. What is the model of this system, in other words, write the ODE of the system 2. Derive the transfer function of the above system from Fls) to X(s) 3. What...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
A second-order process is described by its transfer function G(s) = (s+1)(843) and a PI controller by Consider feedback control with unit feedback gain as shown in Figure 1 A disturbance D(s) exists, and to achieve zero steady-state error, a small integral component is applied. Technical limitations restrict the controller gain kp to values of 0.2 or less. The goal is to examine the influence of the controller parameter k on the dynamic response. D(s) Controller Process X(s) Y(s) Figure...
show steps please
10 A second-order open-loop system with transfer function G(s) = is to be $2+45+10 controlled with unity negative feedback. (a) Derive the error transfer functions E(s) of the closed-loop system subjected to a unit step input, when using a P controller and a PI controller, respectively, in terms P control gain kp, and PI control gains kp and ki, respectively. [7] (b) Determine the steady-state errors in (a). Briefly comment on the differences in control performance by...
b) Given a second order system with the following open loop transfer function where damping ratio, } = 0.707 and natural frequency, Wn= 2.5. wn? G(S) = S2 + 23wns +wn? i. Determine the steady state error to an appropriate input via a calculation method using the transfer function. Compare your answer with the steady state error from the exact frequency response for this system given in Figure Q4(b). (5 marks) ii. Evaluate the difference of the exact frequency response...
Question 2 20 Marks Consider the transfer function, (6-1)(8-2) (82 7s 12)(s +13) G(s) = 1. Using direct synthesis, synthesize a biproper controller with integral action for this process The desired complementary sensitivity function is given by: (T(s)d- where r is a positive integer to be specified in the design, η1 and η2 are constants to be assigned. 2. What will be the dominant feature of the closed-loop response of the output to a step change in the set-point? Justify...
I am stuck on how to create the transfer function to
be suitable for a bide plot, then actually plotting the Bode
diagram
Question 3 A third order process is to be controlled by a proportional controller (Kp) and is to havea unity feedback closed loop arrangement. The process consists of three first order lags that have the following parameters GP1-1s+1) GP2 8/(s+2) GP3 5(s+0.2) A) Draw the system closed block diagram 3 marks B) Using the Log-Linear graph paper...
part 2 & part 3 please...
Tutorial -On PID control (Control System: Instructor slides and lab) Consider a second order mass-force system to study its behavior under various forms of PID control xtn fon force In Disturbance force: 50) (i.e. wind force) Part I (dealing with the plant/process) 1. What is the model of this system, in other words, write the ODE of the system 2. Derive the transfer function of the above system from Fls) to X(s) 3. What...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
