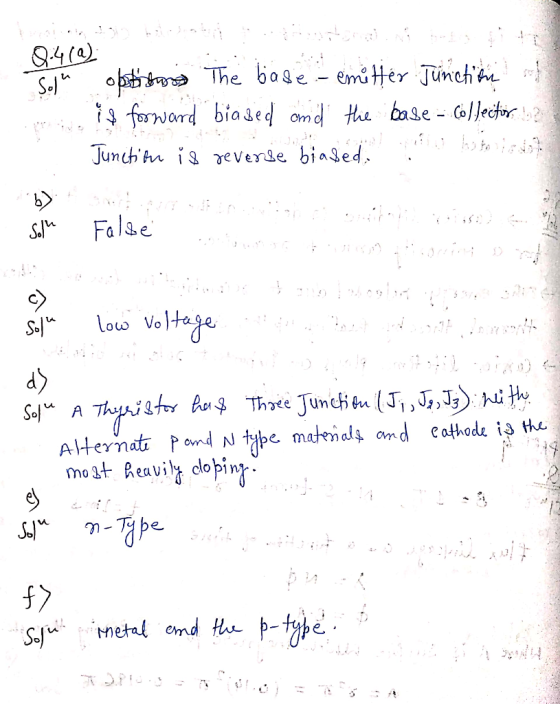

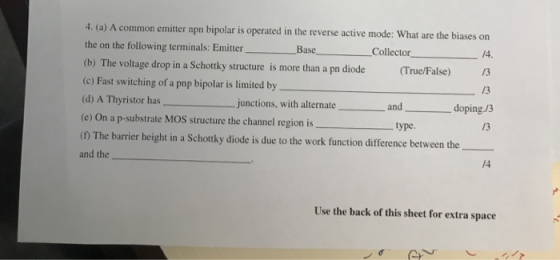

4. (a) A common emitter npn bipolar is operated in the reverse active mode: What are...
3. A silicon npn bipolar transistor is uniformly doped and biased in the forward active region with the base-collector junction reverse biased by 2.5 V. The metallurgical base width is 1.5 μm. The emitter, base collector doping concentrations are 5 × 1017, 1016, 2 × 1015 cm-3 respectively. a. At T-300 K, calculate the base-emitter voltage at which the minority carrier electron concentration at x-0 is 20% of the majority carrier hole concentration. At this voltage calculate the minority carrier...
Problem 2. A silicon NPN bipolar transistor has the following specifications: Emitter: N+: ND =1018 cm-3 , base: p-type, NA=1015 cm-3, collector: N-type, ND=5x1015 cm-3 . 1. Draw the energy band diagram of the transistor at thermal equilibrium, 2. If the transistor is biased at Normal Active Mode, emitter-base junction forward biased with 1 V, and collector-base junction is reverse biased with 4V, draw the energy band diagram.
question 3 and 4
Problem2 (30 points) Consider an npn bipolar transistor with the following characteristics Base Collector Emitter Na-5x 1016 cm3 Ng- 1015 cm3 N1018 cm3 DC- 12 cm-/sec DE 8 cm-/sec (diff coef.) DB 15 cm-/sec sec TEO 108 sec (life time) tB0 5x 10 tCo 10 sec xp 0.7 um (Base width) xg 0.8 um (emitter width) D Remember D/u= KT /q, and L n.p n.p A forward bias of 0.5 V is applied to the emitter-base...
