Question

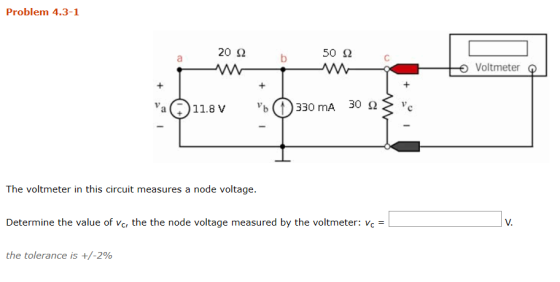

Problem 4.3-1 2012 bwa 50 12 • Voltmeter o a 11.8v 330 mA 302 3 vc The voltmeter in this circuit measures a node voltage. Det

0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
Problem 4.3-1 2012 bwa 50 12 • Voltmeter o a 11.8v 330 mA 302 3 vc...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • Please solve showing all the details Problem # 333 A d'Arsenval voltmeter is shown. Determine the value...

    Please solve showing all the details Problem # 333 A d'Arsenval voltmeter is shown. Determine the value of R, for a full-scale reading of 5 Volts. 0 50 mV 1 mA Voltmeter 10 Problem # 3.34 The d'Arsenval voltmeter described in Problem # 3.33 is used to measure the voltage across the 240 resistor. 5.52 24 2 20 mA Problem # 333 A d'Arsenval voltmeter is shown. Determine the value of R, for a full-scale reading of 5 Volts. 0...

  • Using a 2 mA, 1-KΩ movement, design a 50-V voltmeter. show the circuit and component value.

    Using a 2 mA, 1-KΩ movement, design a 50-V voltmeter. show the circuit and component value.

  • 9:31 Search Name EET 302-Assignment Voltmeter, Ammeter, and ohmmeter L.You have a 0-0-S0-HA de cu...

    9:31 Search Name EET 302-Assignment Voltmeter, Ammeter, and ohmmeter L.You have a 0-0-S0-HA de cureat meter that has n intemal resistance of 4500 2 whag value of shunt resistor is nooded to make the meter mad 0 )50 μΑ fan scale? A de curent meter is in series with a 12-0 load that is connected across a 9-V de bat- tery. How much current Bows in the meter if it is assumed that boch meter and bat- tery are ideal?...

  • can you sovle this problem, also I need the code for part d. thanks Problem #5 Ri Vy= Probe I R- 1502 o VOLTMETER IN...

    can you sovle this problem, also I need the code for part d. thanks Problem #5 Ri Vy= Probe I R- 1502 o VOLTMETER INPUT CIRCUIT Probe 2 Express resistance in ohms (2) and voltage in volts (V) Requirements-Part 1 (voltmeter not attached yet) a) Suppose you want to produce a voltage of 1 V across resistor R2 (i.e. Vor 1 V) Use the voltage divider equation to find the value of Ri that is needed to do this. b)...

  • Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1...

    Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...

  • Example 7.2-3 See Example 7.2-3 in the textbook for the solution to a similar problem. (See...

    Example 7.2-3 See Example 7.2-3 in the textbook for the solution to a similar problem. (See Example Z.2-3 in the textbook for the solution to a similar problem.) i(), mA 1 23 (S) -6 123(S) -9 is figure shows a circuit together with two plots. The plots represent the current and voltage of the capacitor in the circuit. Determine the value of the capacitance, C, in mF. 50 c= mF the tolerance is +/-2%

  • trical Engineering Il - The ECTPRA2/102/0/2019 EXPERIMENT 4 FIELD EFFECT TRANSISTORS (FETs) RS De Figure 4...

    trical Engineering Il - The ECTPRA2/102/0/2019 EXPERIMENT 4 FIELD EFFECT TRANSISTORS (FETs) RS De Figure 4 Using the Multisim simulation software of whatever version you have (possibly the latest version) connect the circuit in figure 4 above. Use an n-channel JFET model number 2N3821 for the circuit. Do not edit the model parameters of the JFET, use it as it is (5) 42 Connect an ammeter in series with R, to measure the drain current lo, a voltmeter in parallel...

  • Problem #3: If the circuit in Problem #1 was designed to supply voltage to a load...

    Problem #3: If the circuit in Problem #1 was designed to supply voltage to a load (RL) to be connected between node C and node D as shown below Vs=5 V R1 =2702 R2 = 990 22 R3 = 990 22 R4 = 1100 12 R5 = 330 22 s (a) [20] Determine the Thevenin equivalent circuit for the load (RL). (b) [5] Calculate the power transferred to the load if RL = 990 32. (C) [5] What is the...

  • please help with 1&2 Problem i. Common-Gate Amplifier: Assume kp = 2 mA/V, VTp = -1...

    please help with 1&2 Problem i. Common-Gate Amplifier: Assume kp = 2 mA/V, VTp = -1 V.=y=0. Determine the following: (5 pt) 1) Vos and VDS (5 pt) 2) The small-signal parameters, go andro (7.5 pt) 3) Draw small-signal equivalent circuit (7.5 pt) 4) Input Resistance, Rin (7.5 pt) 5) Output Resistance, Rout (15 pt) 6) Small-signal Voltage Gain; A, = Yout +15 V -15 V ima 0 1 ko 50 kn Rout (50 pt) Problem 2. Common-Source Amplifier: Assume...

  • Q1. You are given a 12 V DC power supply. You are expected to develop a voltage divider to achieve a voltage of no...

    Q1. You are given a 12 V DC power supply. You are expected to develop a voltage divider to achieve a voltage of nominal 5V value using a pair of resistors from the E 12 range, with the restrition that you are not expected to draw a current of more than 1 mA from the 12 V DC supply i. Develop a simple circuit showing the possible values for each resistor pair, and the range of the DC output possible...
