Find the tension in the string between m1 and m2 in the following figure, given that...

Question

Question

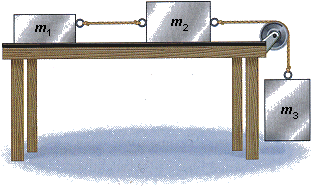

Find the tension in the string between m₁ and m₂ in the following figure, given that m₁ = 0.6 kg, m₂ = 2.2 kg, and m₃ = 3.2 kg.

FTl Ftt Ft1

science physics

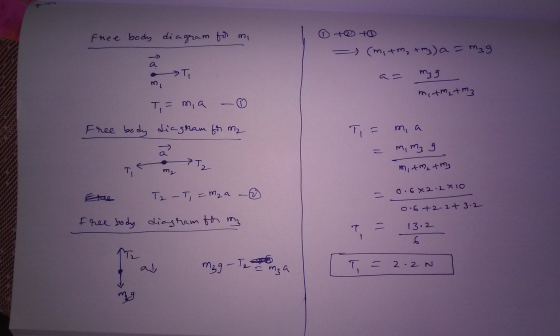

Answer 1

Answer #1

Answer 2
