Question

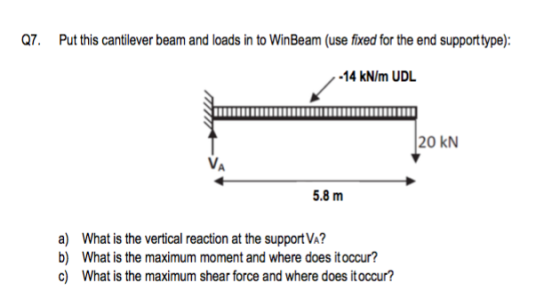

Q7. Put this cantilever beam and loads in to WinBeam (use fixed for the end supporttype): -14 kN/m UDL 20 KN 5.8 m a) What is

0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
Q7. Put this cantilever beam and loads in to WinBeam (use fixed for the end supporttype):...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • Q13. Consider a cantilever beam of 10m length fixed at right end. It carries 5 stones...

    Q13. Consider a cantilever beam of 10m length fixed at right end. It carries 5 stones of length 2 m each placed on the beam. The load of each stone is 5 kN/m. A rod of 10 kN load is placed on the beam at 2 m from fixed end and another rod of load 12kN at midpoint of the beam. All the loads are acting downwards. Draw the beam with the loads and fixed condition. Mark the fixed end...

  • A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions....

    A cantilever beam supports the applied loads and moments as shown. (a) Calculate the support reactions. (b) Use the graphical method to construct the shear-force and bending moment diagrams for the beam. Also label the values of shear-force and bending=moment at all key points. 30 kN/m 25 kN 12 kN/m 80 kN.m х A В C D E F 1 m 3 m 1 m 1 m 1 m

  • A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....

    A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume mm, by - 85 mm, 5 mm, 9 mm. Determine - 0.5 m, P. - 4.0 kN, Pg - 7.5 kN, Pe-2.0 kN, -85 (a) the maximum vertical shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress. See the coordinate system for the beam in the problem figure with the origin of the x axis at the feed...

  • 9. A beam ABC is subjected to a combination of UDL, point loads and applied moments...

    9. A beam ABC is subjected to a combination of UDL, point loads and applied moments as shown below. Draw to scale the shear force and bending moment diagrams. Label all local maximum and minimum values. Also sketch the deflected shape and indicate the location of any points of inflexion. (Ans: Moment at point D= 105kNm) 50 kNm 120 KN 20 kNm w = 10 kN/m BOTIT be 3 m 3 m 4 m Figure 5 Deflected shape Shear force...

  • 1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure....

    1. (28 pts) A cantilever beam is subjected to the loads as shown in the figure. Va) Draw a free-body diagram and determine the supports at point 0. b) Draw shear and moment diagrams and find the values at key points (i.e. x = 0, 6 and 10 ft). If possible, please show your calculations. c) Find shear force V(x) and bending moment M(x) for () <x<6 ft. 12 10 kip 2 kip/ft skip سے 40 kip.lt 611 4 11...

  • The cantilever beam is subjected to the point loads P1=3kN and P2=6kN The cantilever beam is...

    The cantilever beam is subjected to the point loads P1=3kN and P2=6kN The cantilever beam is subjected to the point loads P 3 kN and P 6 kN 250 mm250mm-+ -300 mm 20m.m 70 mm 20 mm 50 mm Part A Determine the maximum shear stress acting at section a a of the cantilevered strut Express your answer to three significant figures and include appropriate units. x2.65 MPa max Submit Previous Answers Request Answer

  • 2.(49 points) The cantilever beam below is fixed at point B.Draw the shear and bending moment...

    2.(49 points) The cantilever beam below is fixed at point B.Draw the shear and bending moment diagrams for the beam, and determine the location and absolute value of the maximum bending moment. 4 kN 3 kN/m 2 m

  • QI A cantilever beam carries a horizontal point load of 100 kN at its end, as...

    QI A cantilever beam carries a horizontal point load of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m and the maximum allowable longitudinal stress of the beam is 200 N/mm². Figure QI (a)...

  • Q1 A cantilever beam carries a horizontal point load P of 100 kN at its end,...

    Q1 A cantilever beam carries a horizontal point load P of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m² and the maximum allowable longitudinal stress of the beam is 200 N/mm2.K b P=...

  • please help both parts thx so much for help Question 3 1) Consider Beam ACB in...

    please help both parts thx so much for help Question 3 1) Consider Beam ACB in Figure Q3(1), determine the maximum positive moment at point C (mid-point of span AB) of the beam and show the corresponding locations of the moving loads. A moment rendering the beam bottom tension is considered positive. (14 marks) 8 kN 4 kN 6 kN 5 m Figure Q3(1) 2) Consider the cantilever shown in Figure Q3(2), draw the influence lines for (a) the moment...
