In a diesel engine, the piston compresses air at 306 K to a volume that is...

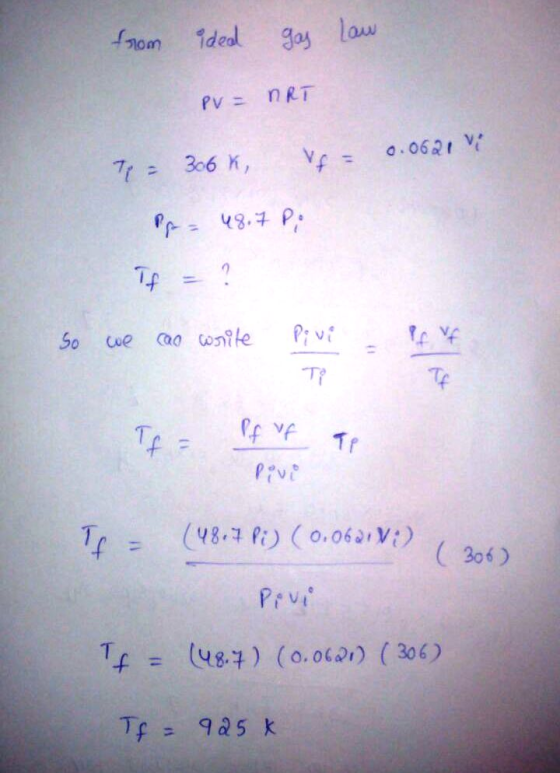

In a diesel engine, the piston compresses air at 306 K to a volume that is 0.0621 of the original volume and a pressure that is 48.7 times the original pressure. What is the temperature of the air after the compression?
Homework Answers
Add Answer to:
In a diesel engine, the piston compresses air at 306 K to a
volume that is...
Problem 2: One cylinder in the diesel engine of a truck has an initial volume of...
Problem 2: One cylinder in the diesel engine of a truck has an initial volume of 550 cm3. Air is admitted to the cylinder at 25∘C and a pressure of 1.0 atm. The piston rod then does 500 J of work to rapidly compress the air. a) What is its final temperature and volume? (Hint: It’s hot. Diesel engines use compression to ignite a gas/air mixture without the aide of spark plugs.)
In an internal combustion engine, air at atmospheric pressure and a temperature of about 11 ∘C...
In an internal combustion engine, air at atmospheric pressure and a temperature of about 11 ∘C is compressed in the cylinder by a piston to 1/8 of its original volume (compression ratio = 8.0). Estimate the temperature of the compressed air, assuming the pressure reaches 44 atm . In an internal combustion engine, air at atmospheric pressure and a temperature of about 17 ∘C is compressed in the cylinder by a piston to 1/8 of its original volume (compression ratio...
8. In a diesel engine, a temperature of 450C is desired at the end of the...
8. In a diesel engine, a temperature of 450C is desired at the end of the compression process. The compression process obeys the law pvC. The temperature at the start of the compression process is 40C. a. Determine the compression ratio required (ie. the ratio of the volume before compression to the volume after compression) b. Given that the initial volume of the system was o.035m2 and the original pressure was 100kPa, determine the work of compression.
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 2...
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 298 K (piston is at BDC). The air is then compressed isentropically with a compression ratio of 20. Fuel, n-dodecane, is then introduced and combusted with the air, which produces work output (i.e. pushes the piston back to BDC). At the end of the power stroke, the temperature of the combustion products is 1020 K. The amount of heat lost to...
During a compression stroke of a cylinder in a diesel engine, the air pressure in the...
During a compression stroke of a cylinder in a diesel engine, the air pressure in the cylinder increases from 1.0×105N/m2 to 60 ×105N/m2, and the temperature increases from 26 ∘C to 544 ∘C. A.) Determine the compression ratio for this engine. Should be written as V2/V1
2. The following information is known for a turbocharged 4-stroke Diesel engine, when running at a...
2. The following information is known for a turbocharged 4-stroke Diesel engine, when running at a certain operating point onboard a vessel: (Geometric) compression ratio: Volumetric ratio: Combustion efficiency Heat input efficiency: Mechanical efficiency Entrapped air efficiency: Intake manifold pressure: Intake manifold temperature: v2 / v, = 20 comb = 98% = 75% m = 90% trap = 100% 3.5 bar (abs) 50°C In the above (see also the figure given at the bottom of the back page). VI: Volume...
During a compression stroke of a cylinder in a diesel engine, the air pressure in the...
During a compression stroke of a cylinder in a diesel engine, the air pressure in the cylinder increases from 1.0 to 60 , and the temperature increases from 26 to 517 . Part A Determine the compression ratio for this engine. Express your answer using two significant figures. ANSWER: = Also accepted: = 4.4×10−2 SEE ANSWER PLEASE SHOW ALL STEPS AND ALL FORMULAS USED
Constants PartA In an internal combustion engine, air at atmospheric pressure and a temperature of about...
Constants PartA In an internal combustion engine, air at atmospheric pressure and a temperature of about 20 °C is compressed in the cylinder by a piston to 5.0 Estimate the temperature of the compressed air, assuming the pressure reaches 38 atm of its original volume (compression ratio 8.0). oC Submit est Ans Provide Feedback
At the beginning of the compression process of an air standard Diesel cycle, the pressure is 109 ...
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
Problem 1 A diesel engine has a compression ratio r = 20 and uses air as...
Problem 1 A diesel engine has a compression ratio r = 20 and uses air as the working fluid. The state of air at the beginning of the compression process is P1 = 95 kPa and T = 20°C. However, the isentropic expansion normally occuring between state 3 and state 4 is replaced by a polytropic process along which: Pul.35 = constant. The maximum temperature in the cycle is not to exceed 2200 K. In this analysis, the variation of...
8. In a diesel engine, a temperature of 450C is desired at the end of the compression process. The compression process obeys the law pvC. The temperature at the start of the compression process is 40C. a. Determine the compression ratio required (ie. the ratio of the volume before compression to the volume after compression) b. Given that the initial volume of the system was o.035m2 and the original pressure was 100kPa, determine the work of compression.
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 298 K (piston is at BDC). The air is then compressed isentropically with a compression ratio of 20. Fuel, n-dodecane, is then introduced and combusted with the air, which produces work output (i.e. pushes the piston back to BDC). At the end of the power stroke, the temperature of the combustion products is 1020 K. The amount of heat lost to...
2. The following information is known for a turbocharged 4-stroke Diesel engine, when running at a certain operating point onboard a vessel: (Geometric) compression ratio: Volumetric ratio: Combustion efficiency Heat input efficiency: Mechanical efficiency Entrapped air efficiency: Intake manifold pressure: Intake manifold temperature: v2 / v, = 20 comb = 98% = 75% m = 90% trap = 100% 3.5 bar (abs) 50°C In the above (see also the figure given at the bottom of the back page). VI: Volume...
Constants PartA In an internal combustion engine, air at atmospheric pressure and a temperature of about 20 °C is compressed in the cylinder by a piston to 5.0 Estimate the temperature of the compressed air, assuming the pressure reaches 38 atm of its original volume (compression ratio 8.0). oC Submit est Ans Provide Feedback
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
Problem 1 A diesel engine has a compression ratio r = 20 and uses air as the working fluid. The state of air at the beginning of the compression process is P1 = 95 kPa and T = 20°C. However, the isentropic expansion normally occuring between state 3 and state 4 is replaced by a polytropic process along which: Pul.35 = constant. The maximum temperature in the cycle is not to exceed 2200 K. In this analysis, the variation of...
