Homework Answers

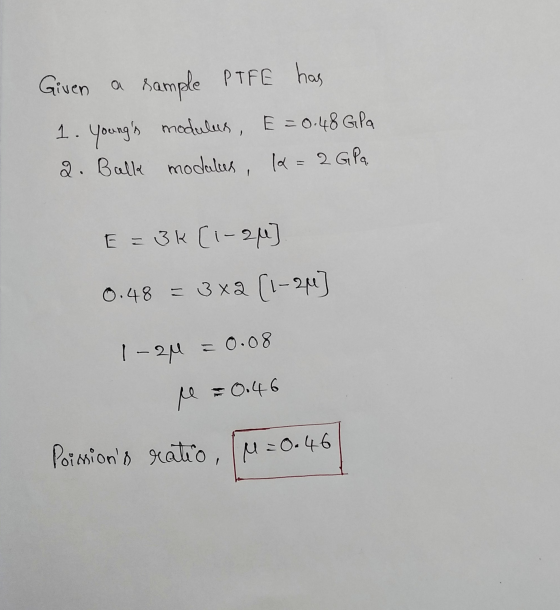

![Given a sample PTFE has 1. Youngs modulus, E=0.48 Gla 2. Balk modalus, 16 = 2 Gla. E=3K (i-2 ] 0.48 = 3x2 (1-24] 1-2M = 0.08](http://img.homeworklib.com/questions/9badde40-0dea-11ec-b8a8-fd361ecace2e.png?x-oss-process=image/resize,w_560)
Add Answer to:

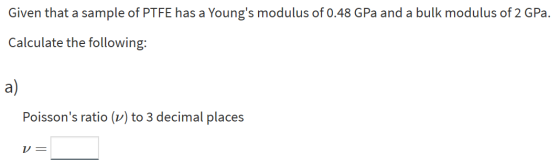

Given that a sample of PTFE has a Young's modulus of 0.48 GPa and a bulk...
