Show all steps: A thermometer with a wet cloth attached to its bulb reads 20C when...

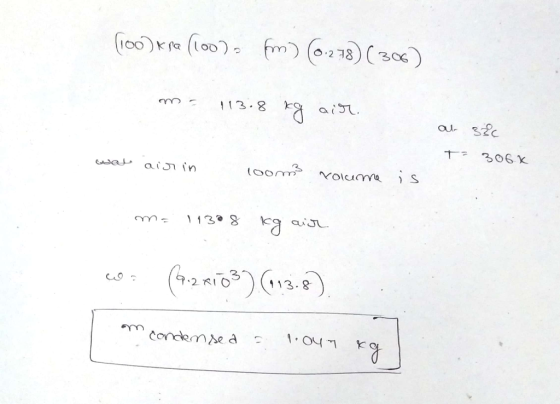

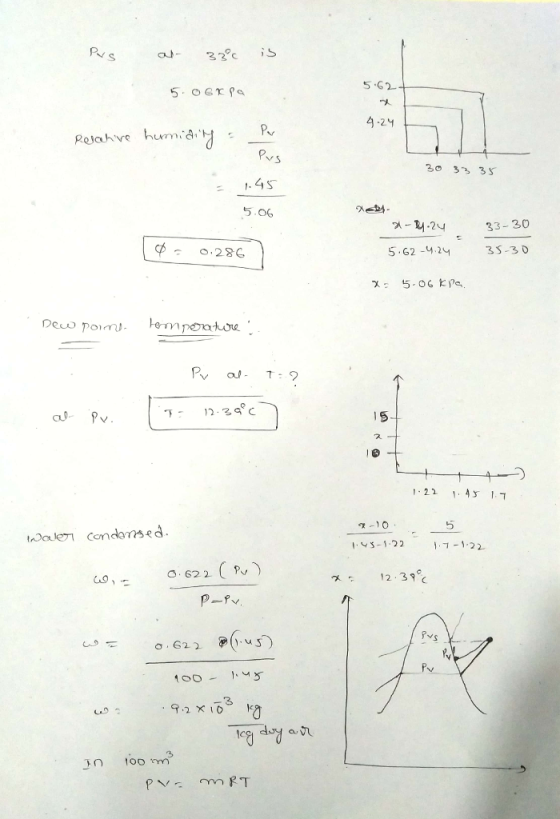

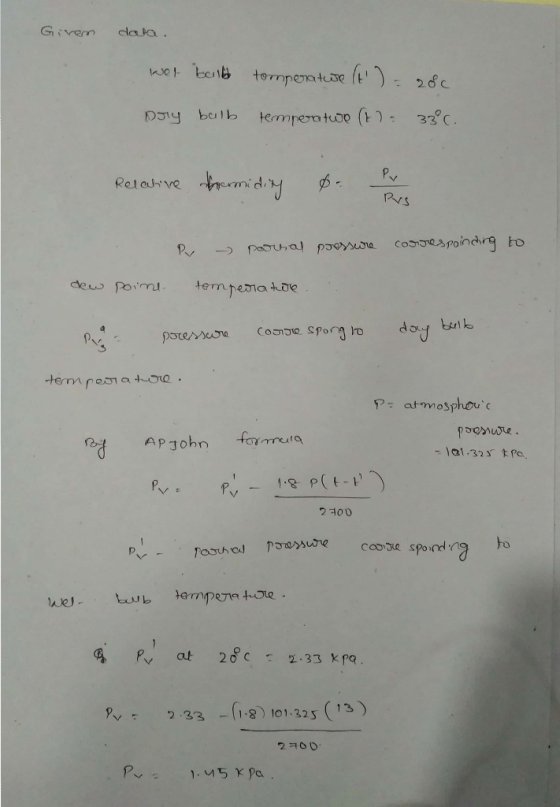

Show all steps: A thermometer with a wet cloth attached to its bulb reads 20C when air is blowing around it. If the air has a dry bulb temperature of 33C, what is the relative humidity and dew point temperature? How much water could be condensed out of a 100 m3 volume? (Ans: 1.04kg)
Homework Answers
Add Answer to:
Show all steps: A thermometer with a wet cloth attached to its
bulb reads 20C when...
3. Air at a dry bulb temperature of 40C and a wet bulb temperature of 20C...
3. Air at a dry bulb temperature of 40C and a wet bulb temperature of 20C is first heated in a heater to a dry bulb temperature of 90C. Then it is passed through a bed of apricot slices to dry them. The air exiting from the top of the apricot bed is at a dry bulb temperature of 60C. It is then passed through a dehumidifier to reduce its relative humidity to 10%. Clearly show the various paths of...
1. The specific heat of water is 1.0 Btu/lb * °F and its density is 62.4...
1. The specific heat of water is 1.0 Btu/lb * °F and its density is 62.4 lb/ft3. Determine the specific heat capacity of water. 2.The specific heat of concrete is 0.27 Btu/lb * °F and its density is 140.0lb/ft3. Determine the specific heat capacity of concrete. 3. Moist air (at sea level) is at a dry bulb temperature of 80°F and a wet bulb temperature of 67°F. Find the relative humidity and the dew point temperature. 4.The wet bulb thermometer...
Exercise 2 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 40°C...
Exercise 2 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 40°C and a wet bulb temperature of 320C. Using both the equations for the moist air properties and the psychrometric chart find: g) the partial pressure of the water vapor h) humidity ratio i) relative humidity j) dew-point temperature k) specific volume 1) enthalpy of moist air Insert the data and the results from the chart in the following table: Enthalpy Specific kJ/kg m/kg Humidity...
Air in a factory for drying apricots had dry bulb temperature of (Tdry) 25oC and wet...
Air in a factory for drying apricots had dry bulb temperature of (Tdry) 25oC and wet bulb temperature of (T wet) 15oC. What are the RH, dew point, Humidity ratio, specific volume and vapour pressure values. Second we are drying 10 Kg apricots of 85% moisture in batch production ending up with 60 % moisture content using a fan that blows hot air. We measured the air characteristics and found that Tdry = 35 oC and Twet=28 oC. The fan...
The atmospheric air 32 °C dry bulb temperature and 70% relative humidity supplied to the cooling...
The atmospheric air 32 °C dry bulb temperature and 70% relative humidity supplied to the cooling coil at a rate of 45m3/min. The air cooling to the saturated state and leaving at a temperature of 16 °C. Determine: a- Specific humidity at each state. b- Wet bulb and dew point temperatures at the final state c- Final relative humidity. d- Mass of water condensed. e- Rate of heat removed from the air in kW. f- Show the process on Psychrometric...
Please show clear working Qn.7. Adiabatic mixing 300 m3/min of fresh air at 30 °C DBT...
Please show clear working
Qn.7. Adiabatic mixing 300 m3/min of fresh air at 30 °C DBT and 50% RH is to be mixed with 800 m3/min of recirculated air at 22 °C DBT and 10 °C wet bulb temperature. Determine the (1) enthalpy, (2) specific volume, (3) relative humidity, (4) dry-bulb temperature and (5) dew point temperature of the mixture. Ans. [(1) 38.24 kJ/kg, (2) 0.849 m/kg (3) 29%, (4) 24.2 °C, (5) 5°C]
Exercise 3 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 29...
Exercise 3 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 29 C and a wet bulb temperature of 22°C. Using the psychrometric chart and the table for saturated vapor find the following air properties: Pr T- 40 a) the partial pressure of the water vapor b) humidity ratio c) relative humidity d) dew-point temperature e) specific volume ) enthalpy of moist air
(10 pts) Six-thousand cubic feet per minutes (C.F.M.) of atmospheric air at 28°C (dry bulb) having...
(10 pts) Six-thousand cubic feet per minutes (C.F.M.) of atmospheric air at 28°C (dry bulb) having a wet bulb temperature of 23°C is to be cooled in an air conditioning system. The air conditioning system lowers the dry bulb temperature of the air to 20° C. Cooling with dehumidification is accomplished using chilled water loop. The chilled water enters the loop at 5°C at a rate of 280 kg/min and experience a 5°C temperature increase. The atmospheric pressure is 1...
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40...
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40 percent, and a total pressure of 160 kPa is contained in a rigid vessel having a volume of 1.65 m3. The air is cooled until the dry bulb temperature reaches 23°C. Determine the amount of heat transferred, the final pressure of the air, and the amount of water vapor condensed during the process.
An air conditioner operating at steady state takes in moist air at 30 °C, 1 bar and a wet bulb temperature of 25
An air conditioner operating at steady state takes in moist air at 30 °C, 1 bar and a wet bulb temperature of 25 °C. The moist air is cooled in the dehumidifier unit and some of the water is removed. There is 10 tons of cooling in the dehumidifier (also called the evaporator of an air conditioner). The condensate and the saturated air stream discharging the section is at 10 °C The moist air is then heated in the heater...
Exercise 2 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 40°C and a wet bulb temperature of 320C. Using both the equations for the moist air properties and the psychrometric chart find: g) the partial pressure of the water vapor h) humidity ratio i) relative humidity j) dew-point temperature k) specific volume 1) enthalpy of moist air Insert the data and the results from the chart in the following table: Enthalpy Specific kJ/kg m/kg Humidity...
Please show clear working
Qn.7. Adiabatic mixing 300 m3/min of fresh air at 30 °C DBT and 50% RH is to be mixed with 800 m3/min of recirculated air at 22 °C DBT and 10 °C wet bulb temperature. Determine the (1) enthalpy, (2) specific volume, (3) relative humidity, (4) dry-bulb temperature and (5) dew point temperature of the mixture. Ans. [(1) 38.24 kJ/kg, (2) 0.849 m/kg (3) 29%, (4) 24.2 °C, (5) 5°C]
Exercise 3 Moist air at 1 atm. barometric pressure has a dry bulb temperature of 29 C and a wet bulb temperature of 22°C. Using the psychrometric chart and the table for saturated vapor find the following air properties: Pr T- 40 a) the partial pressure of the water vapor b) humidity ratio c) relative humidity d) dew-point temperature e) specific volume ) enthalpy of moist air
(10 pts) Six-thousand cubic feet per minutes (C.F.M.) of atmospheric air at 28°C (dry bulb) having a wet bulb temperature of 23°C is to be cooled in an air conditioning system. The air conditioning system lowers the dry bulb temperature of the air to 20° C. Cooling with dehumidification is accomplished using chilled water loop. The chilled water enters the loop at 5°C at a rate of 280 kg/min and experience a 5°C temperature increase. The atmospheric pressure is 1...
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40 percent, and a total pressure of 160 kPa is contained in a rigid vessel having a volume of 1.65 m3. The air is cooled until the dry bulb temperature reaches 23°C. Determine the amount of heat transferred, the final pressure of the air, and the amount of water vapor condensed during the process.
