Choose the correct answer: Use source transformations to exchange the partial circuit shown into an equivalent...

Question

Question

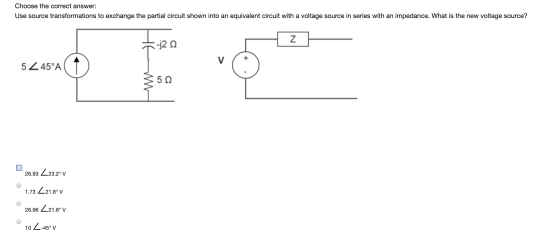

Choose the correct answer: Use source transformations to exchange the partial circuit shown into an equivalent circuit with a

engineering Electrical-Engineering

Answer 1

Answer #1

Impedance Z = (5 - j2) ohm = 5.385 <-21.80 ohm

Voltage V = IZ = (5 < 450) (5.385 <-21.80) = 26.925 <23.20

Answer 2
