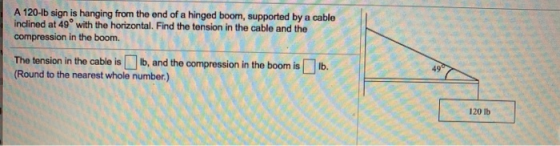

A 120-15 sign is hanging from the end of a hinged boom, supported by a cable...

Question

Question

math trigonometry

Answer 1

Answer #1

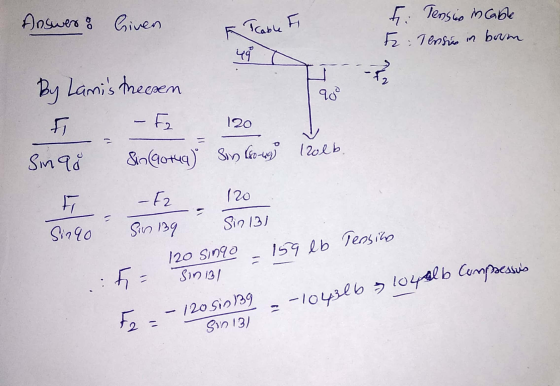

Answer 8 Civen I Table F Tensis in cable Tenhuo in born By Lanis treesen 7 - F2 Sina8 Sin (qorua) 120 Sin (so-ugo loeb. 120

Answer 2

Similar Homework Help Questions

A 1190 N uniform boom is supported by a cable perpendicular to the boom, as seen...

A 1190 N uniform boom is supported by a cable perpendicular to the boom, as seen in the figure below. HHHHHHHH .................. The boom is hinged at the bottom, and an m = 2140 N weight hangs from its top. Assume the angles to be a = 64.6° and 6 = 90.0° - a. Find the tension in the supporting cable. Submit Answer Tries 0/10 Find the x-components of the reaction force exerted on the boom by the hinge (choose...
27. A sign of mass 100.0 kg is hanging by a cable from the end of...

27. A sign of mass 100.0 kg is hanging by a cable from the end of a support rod 0.400 m long. The support rod is perpendicular to the wall. Another cable, making an angle of 60 with the wall, is attached to the end of the support rod. The support rod has a mass of 36.0 kg, and has uniform density so its center of mass is in the middle of the rod. a. Calculate the tension in the...
A 202 kg uniform, beam is hinged at one end and at the other is supported...

A 202 kg uniform, beam is hinged at one end and at the other is supported by a cable that is at 23 degrees to the left of the vertical. The beam is 2.8 m long and is at 6 degrees above the horizontal. Calculate the tension in the cable (in N)

A 1,500-N uniform boom at q = 63.0° to the horizontal is supported by a cable...

A 1,500-N uniform boom at q = 63.0° to the horizontal is supported by a cable at an angle 0 = 27.0° to the horizontal as shown in the figure below. The boom is pivoted at the bottom, and an object of weight w = 2,450 N hangs from its top. OL Pivot (a) Find the tension in the support cable. Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully....
A mass M=171 kg is suspended from the end of a uniform boom as shown. The...

A mass M=171 kg is suspended from the end of a uniform boom as shown. The boom (mass=76.0 kg, length=2.40 m) is at an angle =56.0 deg from the vertical, and is supported at its mid-point by a horizontal cable and by a pivot at its base. Calculate the tension in the horizontal cable. S M 2484.9 N Submit Answer Incorrect. Tries 3/20 Previous Tries
Plz show work A uniform sign of weight 500 N and length 3 m hangs from...

Plz show work A uniform sign of weight 500 N and length 3 m hangs from a 2000 N horizontal 6 m beam, hinged at the wall and supported by a cable. Find the tension in the cable.

A 22.6 kg floodlight in a park is supported at the end of a horizontal beam...

A 22.6 kg floodlight in a park is supported at the end of a horizontal beam of negligible mass that is hinged to a pole, as shown in the figure below. A cable at an angle of alpha = 29.0° with the beam helps to support the light. Find the tension in the cable. Tries 0/10 Find the horizontal force exerted on the beam by the pole. Tries 0/10 Find the vertical force exerted on the beam by the pole.
A 17.7 kg floodlight in a park is supported at the end of a horizontal beam...

A 17.7 kg floodlight in a park is supported at the end of a horizontal beam of negligible mass that is hinged to a pole, as shown in the figure below. A cable at an angle of a = 30.0° with the beam helps to support the light. Find the tension in the cable. Submit Answer Tries 0/10 Find the horizontal force exerted on the beam by the pole. Submit Answer Tries 0/10 Find the vertical force exerted on the...
A 120--wide sign hangs from a 5.3 , 200--long pole. A cable of negligible mass supports the end...

A 120--wide sign hangs from a 5.3 , 200--long pole. A cable of negligible mass supports the end of the rod as shown in the figure .What is the maximum mass of the signif the maximum tension in the cable without breaking is 340 ?

A crate with a mass of 161.5 kg is suspended from the end of a uniform...

A crate with a mass of 161.5 kg is suspended from the end of a uniform boom with a mass of 71.3 kg. The upper end of the boom is supported by a cable attached to the wall and the lower end by a pivot (marked X) on the same wall. Calculate the tension in the cable. A crate with a mass of 161.5 kg is suspended from the end of a uniform boom with a mass of 71.3 kg....
