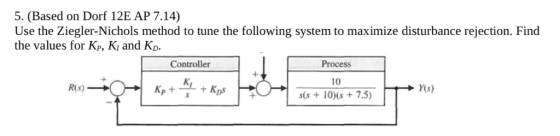

5. (Based on Dorf 12E AP 7.14) Use the Ziegler-Nichols method to tune the following system...
Assignment 1: PID tuning 1. Use the Ziegler-Nichols method to get an initial tuning of a...
Assignment 1: PID tuning 1. Use the Ziegler-Nichols method to get an initial tuning of a PID controller that improves the response of a svstem represented by the following openloop dynamics 0.75 s G(s) (s + 10)(s +1)s2 2. What is the cross over frequency, gain margin, and phase mar- gin of the uncompensated system? 3. Compare the cross over frequency, gain margin, and phase 4. Compare the step responses of both. Indicate how you gener- 5. How would you...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step t...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step test method for PID controller tuning. 3. (a) What are the other two ways to tune a PID controller? What are the advantages and disadvantages for the two methods? (10 marks) (b) A step test was carried out on an electrical oven. Using the data in Table Q3, process the reaction curve in Figure Q3 and produce the tuning parameters for a...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5) A proportional controller is used to control the system as shown in Figure 6 below: Y(s) R(s) + G(s) Figure 6: A control system with a proportional controller a) Assume Hp(s) is a proportional controller with the transfer function H,(s) kp. Determine, using the Routh-Hurwitz Stability Criterion, the value of kp for which the closed-loop system in Figure 6 is marginally stable. (6...
3. The following step response of system with a proportional controller when Kp is set 10...
3. The following step response of system with a proportional controller when Kp is set 10 and Ki=Kd=0. Design a PID controller using Ziegler-Nichols ultimate cycle tuning method. Show all the formulas that you are using. a) (5 points) Tu b) (5 points) Ku d) (10 points) Kir 1 2 3 4 5 6 e) (10 points) Kd=
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer f...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
10 Q.1 Figure Q1 shows a speed control system where Gi(s) 0.5s 1' and K(s)kp K(s) G,(s) Figure Q1: Speed Control System a) Determine the transfer function from d to y (4 marks) (b) Assuming the r...
10 Q.1 Figure Q1 shows a speed control system where Gi(s) 0.5s 1' and K(s)kp K(s) G,(s) Figure Q1: Speed Control System a) Determine the transfer function from d to y (4 marks) (b) Assuming the reference is zero, what is the steady-state error (e-r - y), in this case, you want yss since r 0) due to an unit step disturbance in d? What must the value of k be in order to make the steady-state error less than...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root lo...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
Feedback Control of Dynamic System Please Let me know how to solve this problem (5) For the following unity-feedback control system, Y(s) R(s)E D(s) (s+ 2) we want to design a controller D(s) D(s)+a)...
Feedback Control of Dynamic System
Please Let me know how to solve this problem
(5) For the following unity-feedback control system, Y(s) R(s)E D(s) (s+ 2) we want to design a controller D(s) D(s)+a) that makes the closed-loop stable for certain positive K values. Design the parameters a and b to satisfy the design condition through the root- locus method
(5) For the following unity-feedback control system, Y(s) R(s)E D(s) (s+ 2) we want to design a controller D(s) D(s)+a)...
QS. (a) A system has the transfer function 5+1 G(s) s'+33-10s - 24 Use the Routh-Hurwitz...
QS. (a) A system has the transfer function 5+1 G(s) s'+33-10s - 24 Use the Routh-Hurwitz stability check to determine whether this system is stable or not stable, and state why. [10 marks] (b) Consider the system shown in Figure 5.1, where R(s) is the system input, Y(s) is the system output, K, represents a proportional controller, G(s)=- s? +45 +8 1 and - 5 R(5) Y(s) K G(s) H(s) ) Figure 5.1 Determine the range of values of the...
QUESTION 1 17 marks] Consider the following system: K(s 5) S+ 2 (s - 1)(s + 4) where K 2 0. Use a...
QUESTION 1 17 marks] Consider the following system: K(s 5) S+ 2 (s - 1)(s + 4) where K 2 0. Use any method to determine all values of K (if any) that result in a stable closed-loop system.
QUESTION 1 17 marks] Consider the following system: K(s 5) S+ 2 (s - 1)(s + 4) where K 2 0. Use any method to determine all values of K (if any) that result in a stable closed-loop system.
Assignment 1: PID tuning 1. Use the Ziegler-Nichols method to get an initial tuning of a PID controller that improves the response of a svstem represented by the following openloop dynamics 0.75 s G(s) (s + 10)(s +1)s2 2. What is the cross over frequency, gain margin, and phase mar- gin of the uncompensated system? 3. Compare the cross over frequency, gain margin, and phase 4. Compare the step responses of both. Indicate how you gener- 5. How would you...
In 1942, Ziegler and Nichols published a classic paper that introduced the continuous cycling method and the step test method for PID controller tuning. 3. (a) What are the other two ways to tune a PID controller? What are the advantages and disadvantages for the two methods? (10 marks) (b) A step test was carried out on an electrical oven. Using the data in Table Q3, process the reaction curve in Figure Q3 and produce the tuning parameters for a...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5) A proportional controller is used to control the system as shown in Figure 6 below: Y(s) R(s) + G(s) Figure 6: A control system with a proportional controller a) Assume Hp(s) is a proportional controller with the transfer function H,(s) kp. Determine, using the Routh-Hurwitz Stability Criterion, the value of kp for which the closed-loop system in Figure 6 is marginally stable. (6...
3. The following step response of system with a proportional controller when Kp is set 10 and Ki=Kd=0. Design a PID controller using Ziegler-Nichols ultimate cycle tuning method. Show all the formulas that you are using. a) (5 points) Tu b) (5 points) Ku d) (10 points) Kir 1 2 3 4 5 6 e) (10 points) Kd=
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
10 Q.1 Figure Q1 shows a speed control system where Gi(s) 0.5s 1' and K(s)kp K(s) G,(s) Figure Q1: Speed Control System a) Determine the transfer function from d to y (4 marks) (b) Assuming the reference is zero, what is the steady-state error (e-r - y), in this case, you want yss since r 0) due to an unit step disturbance in d? What must the value of k be in order to make the steady-state error less than...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
Feedback Control of Dynamic System
Please Let me know how to solve this problem
(5) For the following unity-feedback control system, Y(s) R(s)E D(s) (s+ 2) we want to design a controller D(s) D(s)+a) that makes the closed-loop stable for certain positive K values. Design the parameters a and b to satisfy the design condition through the root- locus method
(5) For the following unity-feedback control system, Y(s) R(s)E D(s) (s+ 2) we want to design a controller D(s) D(s)+a)...
QS. (a) A system has the transfer function 5+1 G(s) s'+33-10s - 24 Use the Routh-Hurwitz stability check to determine whether this system is stable or not stable, and state why. [10 marks] (b) Consider the system shown in Figure 5.1, where R(s) is the system input, Y(s) is the system output, K, represents a proportional controller, G(s)=- s? +45 +8 1 and - 5 R(5) Y(s) K G(s) H(s) ) Figure 5.1 Determine the range of values of the...
QUESTION 1 17 marks] Consider the following system: K(s 5) S+ 2 (s - 1)(s + 4) where K 2 0. Use any method to determine all values of K (if any) that result in a stable closed-loop system.
QUESTION 1 17 marks] Consider the following system: K(s 5) S+ 2 (s - 1)(s + 4) where K 2 0. Use any method to determine all values of K (if any) that result in a stable closed-loop system.
