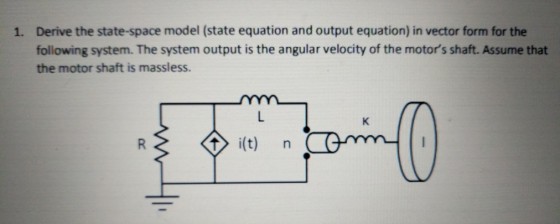

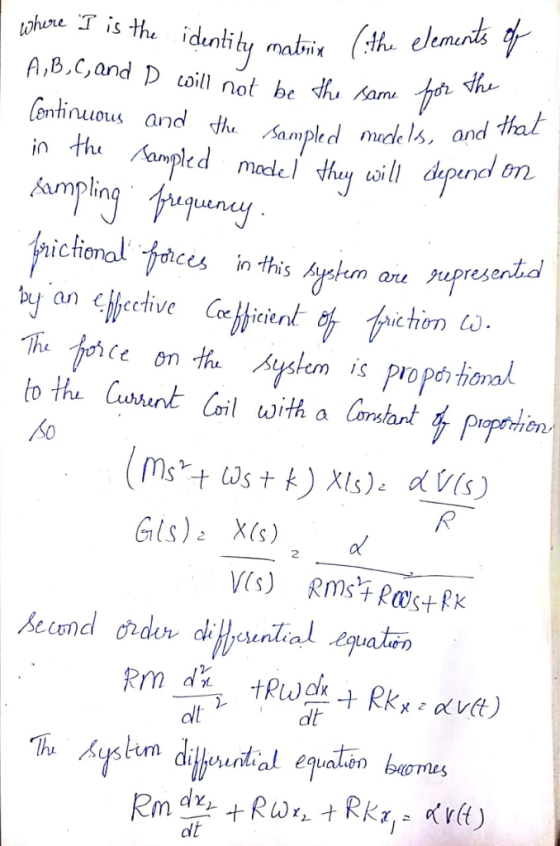

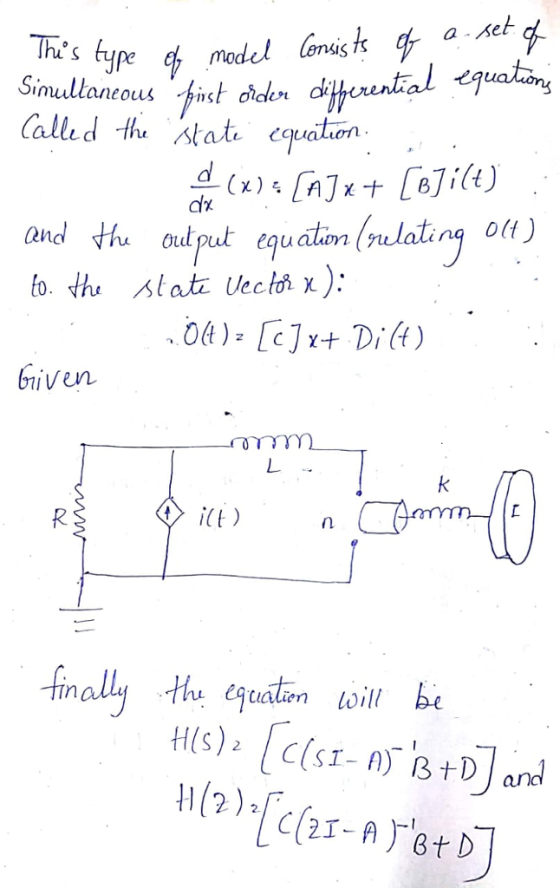

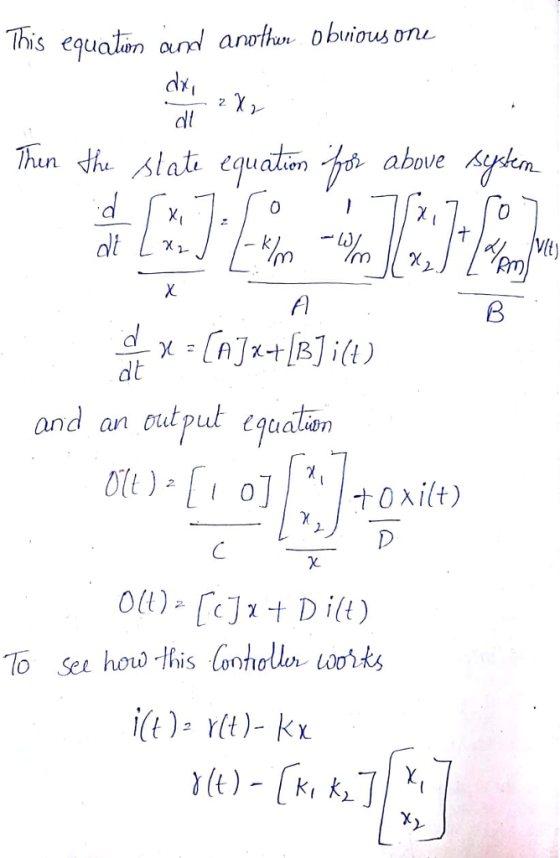

Derive the state-space model (state equation and output...
please write clearly so I can read it 4. The man pulls a 400 N box...
please write clearly so I can read it
4. The man pulls a 400 N box up a ramp using a system consisting of a rope and three frictionless pulleys with the rope parallel to the slope, as shown. The static and kinetic coefficients of friction are 0.4 and 0.35 respectively Determine the force P that the man must apply to the rope to get the box moving Side view Top view
could you please answer this question QUESTION 2 Consider a system with an open-loop trans fer function given by Y(s) s+7 U(s) s2 +3s-8 (a) (8 marks) Derive a state-space model for the system in...
could you please answer this question
QUESTION 2 Consider a system with an open-loop trans fer function given by Y(s) s+7 U(s) s2 +3s-8 (a) (8 marks) Derive a state-space model for the system in canonical form. (b) (4 marks) Check the observability of the system. (c) 8 marks) Design a suitable full-order state observer for the system. Explain your choice of the observer's poles. d) (10 marks) Design a PI controller for the system so the output of the...
please write clearly so i can read everything. i would be writing on the graphs themselves...
please write clearly so i can read everything. i would be
writing on the graphs themselves so please write on the graphs
also. thank you!
10. The MS, IR, 1HNMR and 13CNMR spectra (given in that order) are provided for a compound with the given molecular formula. Calculate the unsaturation index and using the spectra, deduce the structure of the unknown molecule. For each method of analysis (IR, MS, NMR) provide all structural information gained from the spectra (Note: providing...
Control System. please answere all the three questions. Please do not use wikipedia 13. If a state space descriptio...
Control System.
please answere all the three questions. Please do not use
wikipedia
13. If a state space description of a control system has 4 degrees of freedom on the state vector, what is the size of the system matrix A?. 14. Write down the equation for x in terms of x where x is the state vector and u is the input vector. 15. Now write down the equation for the output y
13. If a state space description...
3. For the non-ideal buck converter in Fig. 3, 1) Derive the state space model with state variable vector X as (it, vc), input variable vector U as (vi, io), output variable vector Y as vo. Deriv...
3. For the non-ideal buck converter in Fig. 3, 1) Derive the state space model with state variable vector X as (it, vc), input variable vector U as (vi, io), output variable vector Y as vo. Derive the coefficient matrices in the model below. Note that duty cycle should be considered and included. dt ) di di dt 2)Select the line of a L, ie., a L-4-i, +A2Mz + Bı'y4B12%.and use perturbation-and- dt linearization approach to derive its small-signal representation....
2 A robot-arm drive system for one joint can be represented by the differential equation dv...
2 A robot-arm drive system for one joint can be represented by the differential equation dv kvt)k2y(t)+ kyi(t) dt position, and i(t) is the control-motor current velocity, y(t) Where v(t) Derive the state-space equation of the system a) (5 marks) b) By using Routh-Hurwitz criterion, determine the conditions for k,k2,and ky so that the system remains stable? (5 marks)
2 A robot-arm drive system for one joint can be represented by the differential equation dv kvt)k2y(t)+ kyi(t) dt position, and...
The state space model of an interconnected three tank water storage system is given by the following equation -3 1 o 1[hi] dt The heights of water in the tanks are, respectively, hi, h2, hz. Each tan...
The state space model of an interconnected three tank water storage system is given by the following equation -3 1 o 1[hi] dt The heights of water in the tanks are, respectively, hi, h2, hz. Each tank has an independent input flow; the volume flow rates of input water into the three tanks are, respectively, qii,qi2, Oi3. Each tank also has a water discharge outlet and the volume flow rates of water coming out of the tanks are, respectively, qo1,...
The state space model of an interconnected three tank water storage system is given by the following equation: -3 1 0 1rh dt os lo 0 3] 10 1-3 The heights of water in the tanks are, respectively,...
The state space model of an interconnected three tank water storage system is given by the following equation: -3 1 0 1rh dt os lo 0 3] 10 1-3 The heights of water in the tanks are, respectively, h,h2,h3. Each tank has an independent input flow; the volume flow rates of input water into the three tanks are, respectively, qǐ1,W2,4a. Each tank also has a water discharge outlet and the volume flow rates of water coming out of the tanks...
For this underdamped system: 12.5 GS=2 so +0.24s +101 1) Derive a state space equation for...
For this underdamped system: 12.5 GS=2 so +0.24s +101 1) Derive a state space equation for the system. 2) Analyze the system's observability. 3) Design an observer so that to have its un-damped natural frequency 20 rad/sec and a damping ratio to 0.2. Determine the observer gain K.
can u please help me answer this question and also please write clearly so I can...
can u please help me answer this question and also
please write clearly so I can understand thank you so much also
please show all steps thank you so much
Q1 The following formula estimates an average person's lung capacity V (in liters, where 11-103 cm): V = 4.1 H-0.018 A-2.7 where H and A are the person's height (in meters) and age (in years), respectively. In this formula, what are the UNITS of the numbers 4.1, 0.018, and 2.7?...
please write clearly so I can read it
4. The man pulls a 400 N box up a ramp using a system consisting of a rope and three frictionless pulleys with the rope parallel to the slope, as shown. The static and kinetic coefficients of friction are 0.4 and 0.35 respectively Determine the force P that the man must apply to the rope to get the box moving Side view Top view
could you please answer this question
QUESTION 2 Consider a system with an open-loop trans fer function given by Y(s) s+7 U(s) s2 +3s-8 (a) (8 marks) Derive a state-space model for the system in canonical form. (b) (4 marks) Check the observability of the system. (c) 8 marks) Design a suitable full-order state observer for the system. Explain your choice of the observer's poles. d) (10 marks) Design a PI controller for the system so the output of the...
please write clearly so i can read everything. i would be
writing on the graphs themselves so please write on the graphs
also. thank you!
10. The MS, IR, 1HNMR and 13CNMR spectra (given in that order) are provided for a compound with the given molecular formula. Calculate the unsaturation index and using the spectra, deduce the structure of the unknown molecule. For each method of analysis (IR, MS, NMR) provide all structural information gained from the spectra (Note: providing...
Control System.
please answere all the three questions. Please do not use
wikipedia
13. If a state space description of a control system has 4 degrees of freedom on the state vector, what is the size of the system matrix A?. 14. Write down the equation for x in terms of x where x is the state vector and u is the input vector. 15. Now write down the equation for the output y
13. If a state space description...
3. For the non-ideal buck converter in Fig. 3, 1) Derive the state space model with state variable vector X as (it, vc), input variable vector U as (vi, io), output variable vector Y as vo. Derive the coefficient matrices in the model below. Note that duty cycle should be considered and included. dt ) di di dt 2)Select the line of a L, ie., a L-4-i, +A2Mz + Bı'y4B12%.and use perturbation-and- dt linearization approach to derive its small-signal representation....
2 A robot-arm drive system for one joint can be represented by the differential equation dv kvt)k2y(t)+ kyi(t) dt position, and i(t) is the control-motor current velocity, y(t) Where v(t) Derive the state-space equation of the system a) (5 marks) b) By using Routh-Hurwitz criterion, determine the conditions for k,k2,and ky so that the system remains stable? (5 marks)
2 A robot-arm drive system for one joint can be represented by the differential equation dv kvt)k2y(t)+ kyi(t) dt position, and...
The state space model of an interconnected three tank water storage system is given by the following equation -3 1 o 1[hi] dt The heights of water in the tanks are, respectively, hi, h2, hz. Each tank has an independent input flow; the volume flow rates of input water into the three tanks are, respectively, qii,qi2, Oi3. Each tank also has a water discharge outlet and the volume flow rates of water coming out of the tanks are, respectively, qo1,...
The state space model of an interconnected three tank water storage system is given by the following equation: -3 1 0 1rh dt os lo 0 3] 10 1-3 The heights of water in the tanks are, respectively, h,h2,h3. Each tank has an independent input flow; the volume flow rates of input water into the three tanks are, respectively, qǐ1,W2,4a. Each tank also has a water discharge outlet and the volume flow rates of water coming out of the tanks...
For this underdamped system: 12.5 GS=2 so +0.24s +101 1) Derive a state space equation for the system. 2) Analyze the system's observability. 3) Design an observer so that to have its un-damped natural frequency 20 rad/sec and a damping ratio to 0.2. Determine the observer gain K.
can u please help me answer this question and also
please write clearly so I can understand thank you so much also
please show all steps thank you so much
Q1 The following formula estimates an average person's lung capacity V (in liters, where 11-103 cm): V = 4.1 H-0.018 A-2.7 where H and A are the person's height (in meters) and age (in years), respectively. In this formula, what are the UNITS of the numbers 4.1, 0.018, and 2.7?...
