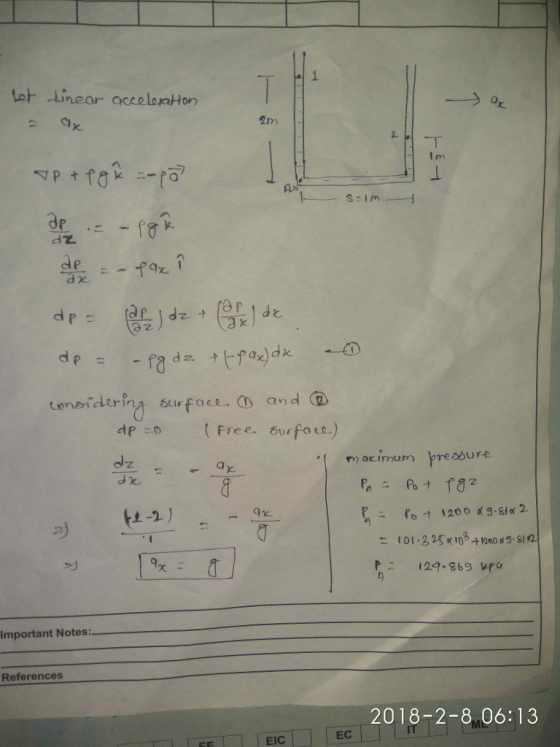

For what linear acceleration will the U-tube shown in Figure
below will take the configuration shown? At that configuration,
what is the maximum pressure in the liquid with the density of
1,200 kg/m3 ?
Homework Answers
Add Answer to:
For what linear acceleration will the U-tube shown in Figure
below will take the configuration shown?...
A liquid is poured into a U-tube as shown in the figure below. The left arm...
A liquid is poured into a U-tube as shown in the figure below.
The left arm of the tube has cross sectional area A1 of 20.0 cm2,
and the right arm has a cross-sectional area A2 of 10.0 cm2. 0.200
kg of water is then poured into the right arm as shown. The liquid
rises in the left arm by a distance h = 2.15 cm. The density of
water is 1.00 × 103 kg/m3. (a) Determine the length of...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer (a device for detecting pressure differences) that is attached to a pipe along which water is flowing from left to right. The water pipe has a circular cross-section. At A the diameter of the water pipe is 5.6 cm and the speed of the water is 2.80 m/s. At B the diameter of the pipe is 3 cm. The fluid in the manometer is...
Static Fluids U Tube
A “U” shaped tube (with a constant radius) is filled with water and oil as shown. The water is a height h1 = 0.39 m above the bottom of the tube on the left sideof the tube and a height h2 = 0.14 m above the bottom of the tube on the right side of the tube. The oil is a height h3 = 0.32 m above the water. Around the tubethe atmospheric pressure is PA = 101300 Pa. Water...
Air at 20 C flows through the tube shown in (Figure 1). Assume that air is...
Air at 20 C flows through the tube shown in (Figure 1). Assume
that air is an ideal fluid. The density of air is 1.20
kg/m3, the density of mercury is 13600 kg/m3.
Suppose that d1 = 2 mm and
d2 = 1.4 cm.
(A) What is the air speed of v1 at point 1? = 149
m/s
(B) What is the air speed v2 at point 2? =
????
(C) What is the volume flow rate? = 4.7*10-4
m3/s...
An inverted U tube as shown in the figure below is used to measure the pressure...
An inverted U tube as shown in the figure below is used to measure the pressure difference between two points A and B which has wate 0.3 m, a = 7. X flowing. The difference in level h 0.25 m and b 0.15 m. Calculate the pressure difference pB- pA (psi) if the top of the manometer is filled with: (b) oil of relative (a) air (10 pts) density 0.8. (10 pts)
2. Two liquids, 1 and 2, are in equilibrium in a U-tube that is open at...
2. Two liquids, 1 and 2, are in equilibrium in a U-tube that is open at both ends, as in the drawing The liquids don t mix, and liquid i rests on top of liquid 2. How s the density to the density p2 of liquid 2? 10t i quid 1 reiated (a) p1 is equal to p2 because the liquids are in equilibrium (b) (b) p1 is greater than p2, because (c) ρ 1 is less than p2, because...
The Venturi tube shown in the figure below may be used as a fluid flowmeter. Suppose...
The Venturi tube shown in the figure below may be used as a fluid flowmeter. Suppose the device is used at a service station to measure the flow rate of gasoline (p 7.00 x 102 kg/m3) through a hose having an outlet radius of 1.47 cm. The difference in pressure is measured to be P1 P2 1.10 kPa and the radius of the inlet tube to the meter is 2.94 cm (a) Find the speed of the gasoline as it...
A Review Constants Periodic Table Part A Air flows through the tube shown in (Figure 1)...
A Review Constants Periodic Table Part A Air flows through the tube shown in (Figure 1) at a rate of 1100 cm/s. Assume that air is an ideal fluid. The density of mercury is 13600 kg/m3 and the density of air is 1.20 kg/m3 What is the height h of mercury in the right side of the U-tube? Suppose that di = 2.4 cm and d2 = 5.0 mm Express your answer with the appropriate units. Figure < 1 of...
Question 5 (2 points) In the U-tube below, the density of the fluid that fills the...
Question 5 (2 points) In the U-tube below, the density of the fluid that fills the upper part of the left-hand portion is 831 kg/m3. The density of the fluid that fills the right-hand portion is unknown. PA PB Th3 The heights of three different sections as labeled on the diagram are h1 = 7.0 cm, ha = 3.0, cm and h3 = 5.0 cm, respectively. The density of the fluid on the right side of the U-tube is most...
h3 h2 A "U" shaped tube (with a constant radius) is filled with water and oil...
h3 h2 A "U" shaped tube (with a constant radius) is filled with water and oil as shown. The water is a height h1 0.38 m above the bottom of the tube on the left side of the tube and a height h 0.12 m above the bottom of the tube on the right side of the tube The oil is a height h3-0.32 m above the water. Around the tube the atmospheric pressure is PA 101300 Pa. Water has...
A liquid is poured into a U-tube as shown in the figure below.
The left arm of the tube has cross sectional area A1 of 20.0 cm2,
and the right arm has a cross-sectional area A2 of 10.0 cm2. 0.200
kg of water is then poured into the right arm as shown. The liquid
rises in the left arm by a distance h = 2.15 cm. The density of
water is 1.00 × 103 kg/m3. (a) Determine the length of...
8. (10 points extra credit) Consider the figure shown below. It shows a U-shaped mercury manometer (a device for detecting pressure differences) that is attached to a pipe along which water is flowing from left to right. The water pipe has a circular cross-section. At A the diameter of the water pipe is 5.6 cm and the speed of the water is 2.80 m/s. At B the diameter of the pipe is 3 cm. The fluid in the manometer is...
Air at 20 C flows through the tube shown in (Figure 1). Assume
that air is an ideal fluid. The density of air is 1.20
kg/m3, the density of mercury is 13600 kg/m3.
Suppose that d1 = 2 mm and
d2 = 1.4 cm.
(A) What is the air speed of v1 at point 1? = 149
m/s
(B) What is the air speed v2 at point 2? =
????
(C) What is the volume flow rate? = 4.7*10-4
m3/s...
An inverted U tube as shown in the figure below is used to measure the pressure difference between two points A and B which has wate 0.3 m, a = 7. X flowing. The difference in level h 0.25 m and b 0.15 m. Calculate the pressure difference pB- pA (psi) if the top of the manometer is filled with: (b) oil of relative (a) air (10 pts) density 0.8. (10 pts)
2. Two liquids, 1 and 2, are in equilibrium in a U-tube that is open at both ends, as in the drawing The liquids don t mix, and liquid i rests on top of liquid 2. How s the density to the density p2 of liquid 2? 10t i quid 1 reiated (a) p1 is equal to p2 because the liquids are in equilibrium (b) (b) p1 is greater than p2, because (c) ρ 1 is less than p2, because...
The Venturi tube shown in the figure below may be used as a fluid flowmeter. Suppose the device is used at a service station to measure the flow rate of gasoline (p 7.00 x 102 kg/m3) through a hose having an outlet radius of 1.47 cm. The difference in pressure is measured to be P1 P2 1.10 kPa and the radius of the inlet tube to the meter is 2.94 cm (a) Find the speed of the gasoline as it...
A Review Constants Periodic Table Part A Air flows through the tube shown in (Figure 1) at a rate of 1100 cm/s. Assume that air is an ideal fluid. The density of mercury is 13600 kg/m3 and the density of air is 1.20 kg/m3 What is the height h of mercury in the right side of the U-tube? Suppose that di = 2.4 cm and d2 = 5.0 mm Express your answer with the appropriate units. Figure < 1 of...
Question 5 (2 points) In the U-tube below, the density of the fluid that fills the upper part of the left-hand portion is 831 kg/m3. The density of the fluid that fills the right-hand portion is unknown. PA PB Th3 The heights of three different sections as labeled on the diagram are h1 = 7.0 cm, ha = 3.0, cm and h3 = 5.0 cm, respectively. The density of the fluid on the right side of the U-tube is most...
h3 h2 A "U" shaped tube (with a constant radius) is filled with water and oil as shown. The water is a height h1 0.38 m above the bottom of the tube on the left side of the tube and a height h 0.12 m above the bottom of the tube on the right side of the tube The oil is a height h3-0.32 m above the water. Around the tube the atmospheric pressure is PA 101300 Pa. Water has...
