Homework Answers
Add Answer to:

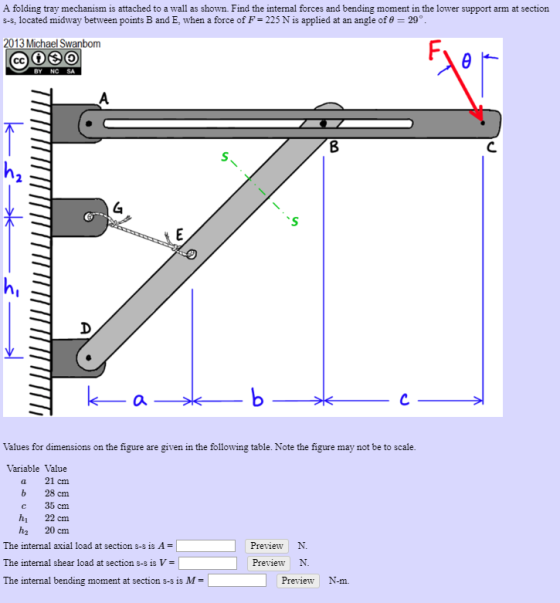

A folding tray mechanism is attached to a wall as shown. Find the internal forces and...
(12 points) Difficulty (4/5) a b c h1h1 h2h2 20 cm 30 cm 36 cm 27...
(12 points) Difficulty (4/5)
a
b
c
h1h1
h2h2
20 cm
30 cm
36 cm
27 cm
21 cm

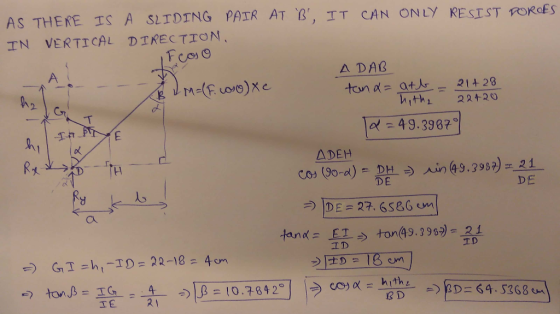

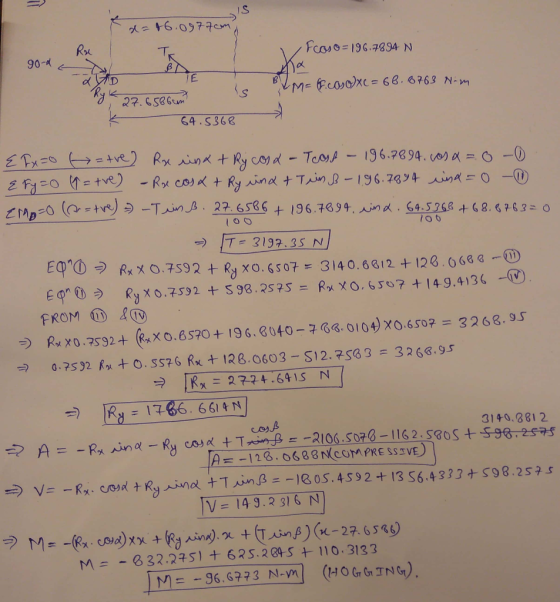

A folding tray mechanism is attached to a wall as shown. The
assembly has the dimensions given above. When a force of F = 175 N
is applied at an angle of θθ = 31 degrees, find the internal forces
indicated in the table below.
Forces: (Denote rightward or
upward forces with positive values; leftward or downward forces
with negative values.)...
Determ ine the internal forces at point J for the structure shown, where member BD can...
Determ ine the internal forces at point J for the structure shown, where member BD can only carry axial forces. Take the dimension a 176 mm and the external load P 500 M a mm 225 mm B 120 mm 225 mm A P NV 135 mm axial force: Number Units (tolerance 1 N, magnitude only) FJ shear force: SF= Number Units (tolerance 1 N, magnitude only) bending moment Number Units (tolerance 100 N mm, magnitude only) BMJ
Determ ine...
2013 Michael Swanbom 08 O Cross Section Dimensions 106 cm 25 cm 32 mm 33 mm Problem Statement A c...
2013 Michael Swanbom 08 O Cross Section Dimensions 106 cm 25 cm 32 mm 33 mm Problem Statement A cantilever beam has a cross-section shaped as a sector of a circle. It is supported at A and loaded with a concentrated load of F 870 N and a concentrated moment of M = 361 N*m. The dimensions of the beam are given in the table above. Find the normal stresses at points D, E, and G in the cross-section, at...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is
supported by a pin at A and a cable at B. Two
loads P = 13 kN are applied straight down from the
centerline of the bottom face. Determine the state of stress at the
point shown (Figure 2) in a section 2 m from the wall. The
dimensions are w = 5.2 cm , h = 10.5 cm ,
L = 0.8 m , a = 1.5 cm , and b = 4...
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker...
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker at C and a pin at A. Point D is located half way between A and B. Point E is located half way between B and C. Make sure all internal effects (A, V, & M) on FBD's are drawn in the assumed positive direction Represent distributed loads as an equivalent point load, no need to solve for internal effects. 200 N/m 100 N/m...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is supported by a pin at A
and a cable at B. Two loads P = 13 kN are applied
straight down from the centerline of the bottom face. Determine the
state of stress at the point shown (Figure 2) in a section 2 m from
the wall. The dimensions are w = 5.2 cm , h =
10.5 cm , L = 0.8 m , a = 1.5 cm , and b
= 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at...
The beam shown (Figure 1) is supported by a pin at A and a cable at
B. Two loads P = 13 kN are applied straight down
from the centerline of the bottom face. Determine the state of
stress at the point shown (Figure 2) in a section 2 m from the
wall. The dimensions are w = 5.2 cm , h = 10.5 cm
, L = 0.8 m , a = 1.5 cm , and b = 4...
The flanged member shown below is subjected to an internal axial force of P = 6500...
The flanged member shown below is subjected to an internal axial force of P = 6500 lb, an internal shear force of V = 4500 lb, and an internal bending moment of M = 19200 lb-ft, acting in the directions shown. d M Iw y HI a y Ilk thu The dimensions of the cross section are: bf = 8.0 in. tp = 0.61 in. d = 11.0 in. tw = 0.38 in. The cross-sectional area of the flanged shape...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a cable at B. Two loads P = 18 kN are applied straight down from the centerline of the bottom face. Determine the state of stress at the point shown (Figure 2) in a section 2 m from the wall. The dimensions are w = 5.4 cm , h = 12 cm, L = 0.8 m, a = 1.5 cm , and b = 4...
(Q2) For the shown beam, a uniformly distributed load is applied across the beam length. The...
(Q2) For the shown beam, a uniformly distributed load is applied across the beam length. The beam cross section is symmetrical. The beam length and cross-sectional dimensions are shown in figure. 40 mm B С 300 mm 10 N/m N A 40 mm 300 mm 40 mm 500 mm 1- Plot the Shear Force Distribution (with values) 2- Plot the Bending Moment Distribution (with values) 3. Determine the maximum Moment value and indicate the most critical section 4- Calculate the...
(12 points) Difficulty (4/5)
a
b
c
h1h1
h2h2
20 cm
30 cm
36 cm
27 cm
21 cm
A folding tray mechanism is attached to a wall as shown. The
assembly has the dimensions given above. When a force of F = 175 N
is applied at an angle of θθ = 31 degrees, find the internal forces
indicated in the table below.
Forces: (Denote rightward or
upward forces with positive values; leftward or downward forces
with negative values.)...
Determ ine the internal forces at point J for the structure shown, where member BD can only carry axial forces. Take the dimension a 176 mm and the external load P 500 M a mm 225 mm B 120 mm 225 mm A P NV 135 mm axial force: Number Units (tolerance 1 N, magnitude only) FJ shear force: SF= Number Units (tolerance 1 N, magnitude only) bending moment Number Units (tolerance 100 N mm, magnitude only) BMJ
Determ ine...
2013 Michael Swanbom 08 O Cross Section Dimensions 106 cm 25 cm 32 mm 33 mm Problem Statement A cantilever beam has a cross-section shaped as a sector of a circle. It is supported at A and loaded with a concentrated load of F 870 N and a concentrated moment of M = 361 N*m. The dimensions of the beam are given in the table above. Find the normal stresses at points D, E, and G in the cross-section, at...
The beam shown (Figure 1) is
supported by a pin at A and a cable at B. Two
loads P = 13 kN are applied straight down from the
centerline of the bottom face. Determine the state of stress at the
point shown (Figure 2) in a section 2 m from the wall. The
dimensions are w = 5.2 cm , h = 10.5 cm ,
L = 0.8 m , a = 1.5 cm , and b = 4...
Hw0642 Internal- The beam is subjected to the distributed loads shown and supported by a rocker at C and a pin at A. Point D is located half way between A and B. Point E is located half way between B and C. Make sure all internal effects (A, V, & M) on FBD's are drawn in the assumed positive direction Represent distributed loads as an equivalent point load, no need to solve for internal effects. 200 N/m 100 N/m...
The beam shown (Figure 1) is supported by a pin at A
and a cable at B. Two loads P = 13 kN are applied
straight down from the centerline of the bottom face. Determine the
state of stress at the point shown (Figure 2) in a section 2 m from
the wall. The dimensions are w = 5.2 cm , h =
10.5 cm , L = 0.8 m , a = 1.5 cm , and b
= 4...
The beam shown (Figure 1) is supported by a pin at A and a cable at
B. Two loads P = 13 kN are applied straight down
from the centerline of the bottom face. Determine the state of
stress at the point shown (Figure 2) in a section 2 m from the
wall. The dimensions are w = 5.2 cm , h = 10.5 cm
, L = 0.8 m , a = 1.5 cm , and b = 4...
The flanged member shown below is subjected to an internal axial force of P = 6500 lb, an internal shear force of V = 4500 lb, and an internal bending moment of M = 19200 lb-ft, acting in the directions shown. d M Iw y HI a y Ilk thu The dimensions of the cross section are: bf = 8.0 in. tp = 0.61 in. d = 11.0 in. tw = 0.38 in. The cross-sectional area of the flanged shape...
Learning Goal: The beam shown (Figure 1) is supported by a pin at A and a cable at B. Two loads P = 18 kN are applied straight down from the centerline of the bottom face. Determine the state of stress at the point shown (Figure 2) in a section 2 m from the wall. The dimensions are w = 5.4 cm , h = 12 cm, L = 0.8 m, a = 1.5 cm , and b = 4...
(Q2) For the shown beam, a uniformly distributed load is applied across the beam length. The beam cross section is symmetrical. The beam length and cross-sectional dimensions are shown in figure. 40 mm B С 300 mm 10 N/m N A 40 mm 300 mm 40 mm 500 mm 1- Plot the Shear Force Distribution (with values) 2- Plot the Bending Moment Distribution (with values) 3. Determine the maximum Moment value and indicate the most critical section 4- Calculate the...
