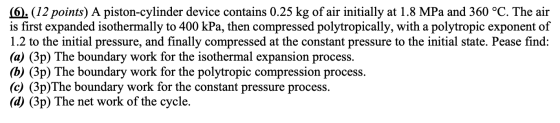

(6). (12 points) A piston-cylinder device contains 0.25 kg of
air initially at 1.8 MPa and 360 °C. The air is first expanded
isothermally to 400 kPa, then compressed polytropically, with a
polytropic exponent of 1.2 to the initial pressure, and finally
compressed at the constant pressure to the initial state. Pease

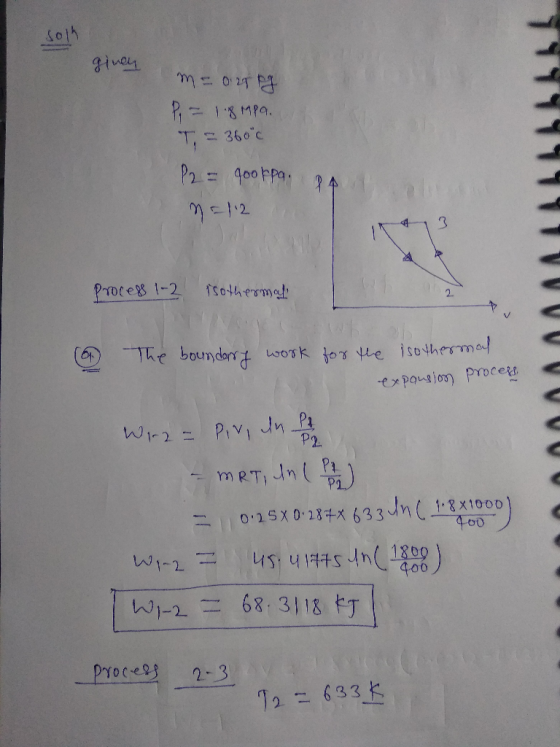

find: (a) (3p) The boundary work for the isothermal expansion

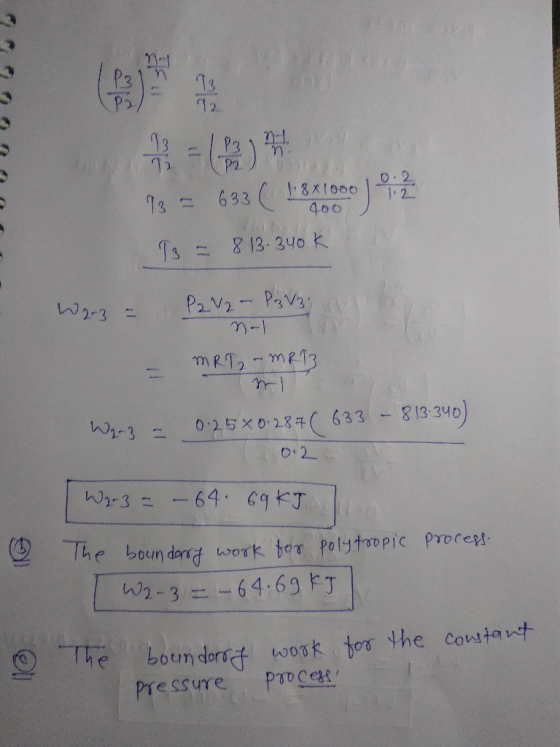

process. (b) (3p) The boundary work for the polytropic compression

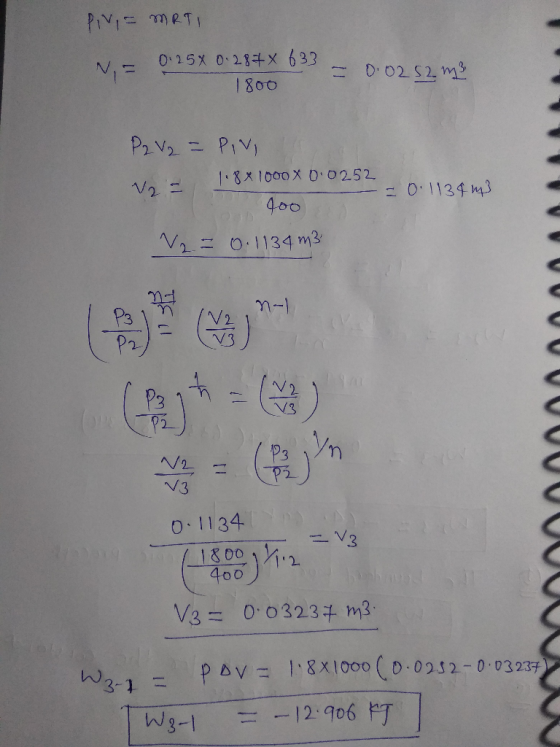

process. (c) (3p)The boundary work for the constant pressure

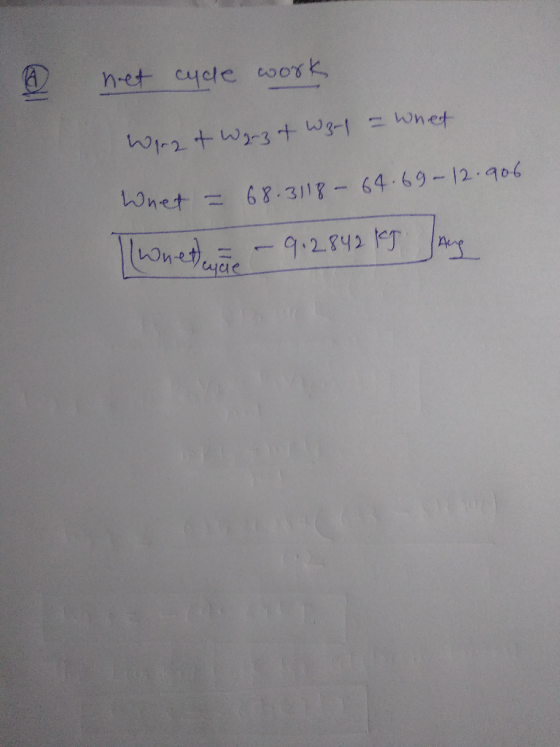

process. (d) (3p) The net work of the cycle.
