An X-ray photon of unknown wavelength is scattered from a free electron at rest and the...

An X-ray photon of unknown wavelength is scattered from a free electron at rest and the scattered X-ray is observed at 24.2 degrees to the incident X-ray. What is the Compton shift(in pm)?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

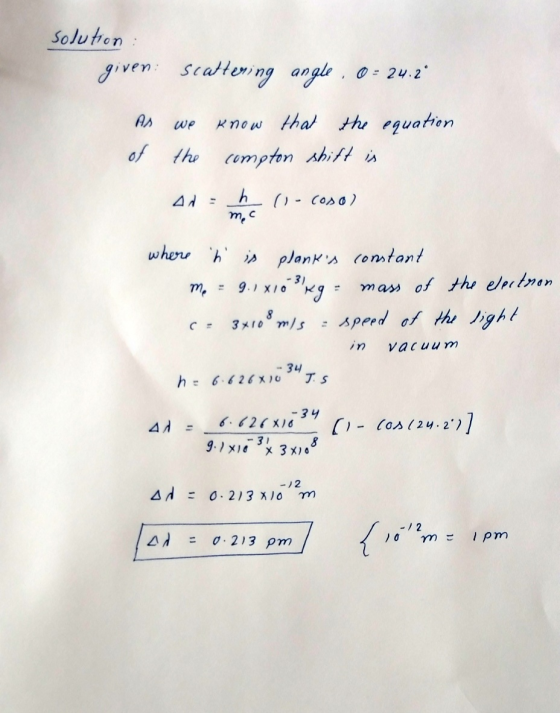

solution : given scattering angle . 0= 24.2° we know that the equation of the the compton shift is 4 = h (1-coso) mec where h

0 0
Add a comment
Know the answer?
Add Answer to:
An X-ray photon of unknown wavelength is scattered from a free electron at rest and the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An X-ray photon of wavelength 0.5 nm collides with a stationary free electron and scattered at...

    An X-ray photon of wavelength 0.5 nm collides with a stationary free electron and scattered at 180° angle. If the Compton wavelength has the value rc=2.4x10-'nm, then: (a) find the wavelength and the Compton Shift of the scattered photon, (6 marks) (b) find the energy of the incident and scattered photon (in joule). (4 marks)

  • An x-ray photon is scattered from a free electron (mass m) at rest. The wavelength of...

    An x-ray photon is scattered from a free electron (mass m) at rest. The wavelength of the scattered photon is λ′, and the final speed of the struck electron is v. Part A Part complete What was the initial wavelength λ of the photon? Express your answer in terms of λ′, v, m, and the appropriate constants. For the wavelength of the scattered photon λ′ use the notation λf. (Hint: Use the relativistic expression for the electron kinetic energy.) Express...

  • An X-ray photon is scattered at an angle of = 180.0° from an electron that is...

    An X-ray photon is scattered at an angle of = 180.0° from an electron that is initially at rest. After scattering, the electron has a speed of 4.70 × 106 m/s. Find the wavelength of the incident X-ray photon.

  • An X-ray photon is scattered at an angle of = 180.0° from an electron that is...

    An X-ray photon is scattered at an angle of = 180.0° from an electron that is initially at rest. After scattering, the electron has a speed of 3.91 × 106 m/s. Find the wavelength of the incident X-ray photon. Please help, especially with all the math steps to the end. I'm struggling to solve for lamda in the equation KE=hc/lamda - hc/lamda' since there are 2 fractions with lamda in.

  • In the Compton effect an X-ray photon scatters from a free electron. In such an experiment,...

    In the Compton effect an X-ray photon scatters from a free electron. In such an experiment, an X-ray photon of wavelength 0.141 nm scatters at an angle of 135® from the incident direction. what is the momentum of the incident photon? Give your answer to at least three significant figures. Your answer must be accurate to 1%, 4.699340x104 kg m/s Previous Tries no.isisseaneenoonties Your receipt no. is 155-2231 What is the energy of the incident photon? Give your answer to...

  • An X-ray photon scatters from a free electron at rest at an angle of 105 relative...

    An X-ray photon scatters from a free electron at rest at an angle of 105 relative to the incident direction Part A If the scattered photon has a wavelength of 0.340 nm, what is the wavelength of the incident photon? Express your answer using three significant figures. IVO ACO ? = nm Submit Request Answer Part B Determine the energy of the incident photon. Express your answer using three significant figures. ΤΡΙ ΑΣΦ ? EN keV Submit Request Answer Part...

  • An X-ray scattering from a free electron is observed to change its wavelength by 3.73 pm...

    An X-ray scattering from a free electron is observed to change its wavelength by 3.73 pm Part A At what angle to the incident direction does the scattered X-ray move? Express your answer to three significant figures.

  • Photons of wavelength 65.0 pm are Compton-scattered from a free electron which picks up a kinetic...

    Photons of wavelength 65.0 pm are Compton-scattered from a free electron which picks up a kinetic energy of 0.78 keV from the collision. What is the wavelength of the scattered photon?

  • 1.In the Compton effect, an X-ray photon of wavelength 0.23 nm is incident on a stationary...

    1.In the Compton effect, an X-ray photon of wavelength 0.23 nm is incident on a stationary electron. Upon collision with the electron, the scattered X-ray photon continues to travel in the same direction as the incident photon. 1.What is the wavelength λ' of the scattered photon? λ' = 2.A particle (m = 3.7 × 10-28 kg) starting from rest, experiences an acceleration of 2.4 × 107 m/s2 for 5.0 s. What is its de Broglie wavelength λ at the end...

  • 7. An x-ray photon with wavelength of 1.92 pm scatters off of an electron at rest,...

    7. An x-ray photon with wavelength of 1.92 pm scatters off of an electron at rest, deflecting through an angle of 120°. What's the scattered photon's frequency?
