Question

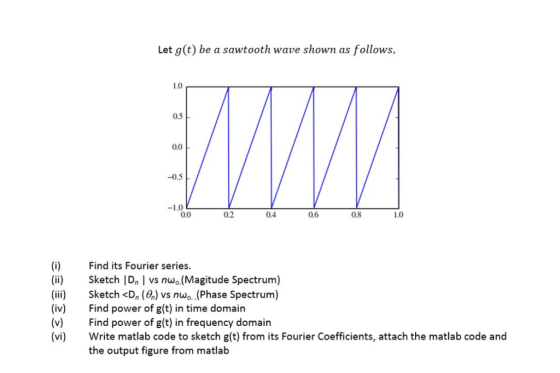

Let g(t) be a sawtooth wave shown as follows, 1.0 0.5 0.0 -0.5 0.0 0.2 0.4 0.6 08 1.0 (i Find its Fourier series. () Sketch IDn I vs nwa.(Magitude Spectrum) Sketch Dn (en) vs nwo. (Phase Spectrum) iv) Find power of g(t) in time domain (v) Find power of g(t) in frequency domain (vi) Write matlab code to sketch g(t) from its Fourier Coefficients, attach the matlab code and the output figure from matlab

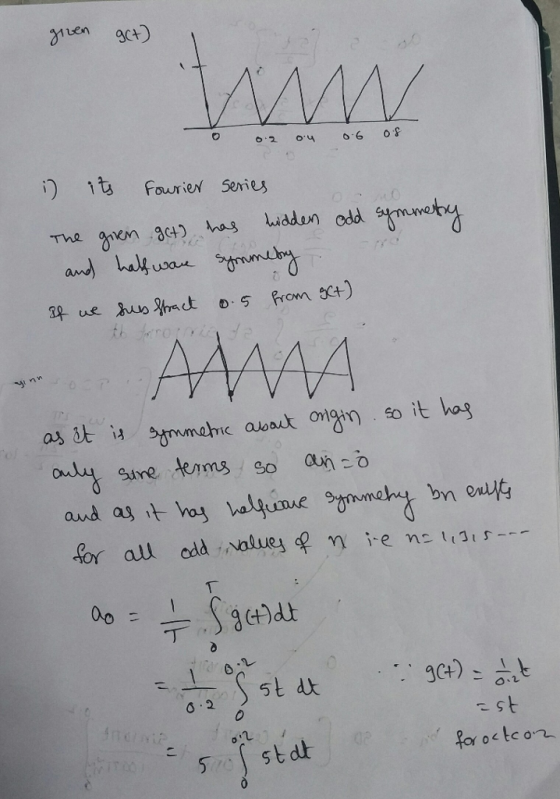

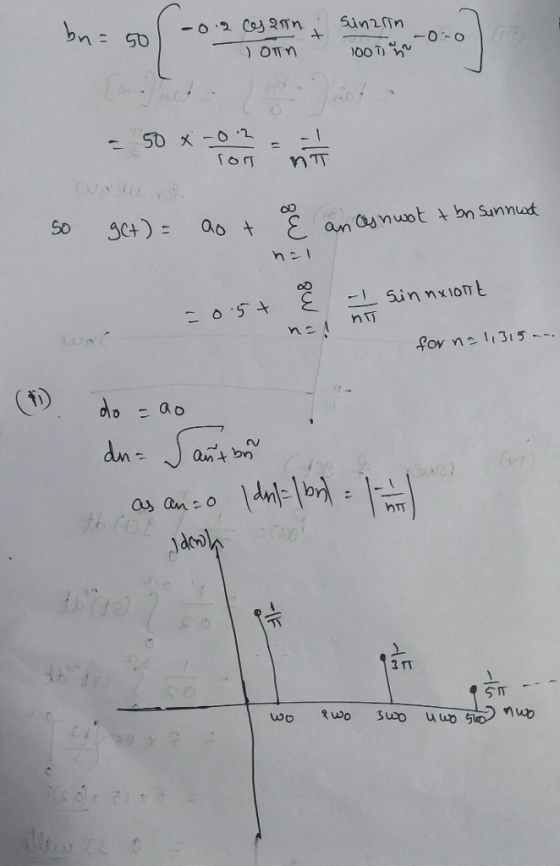

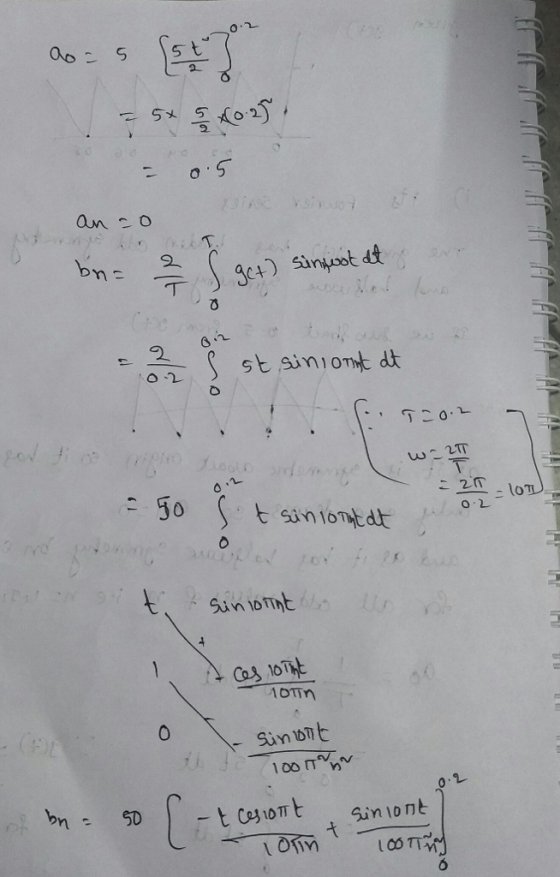

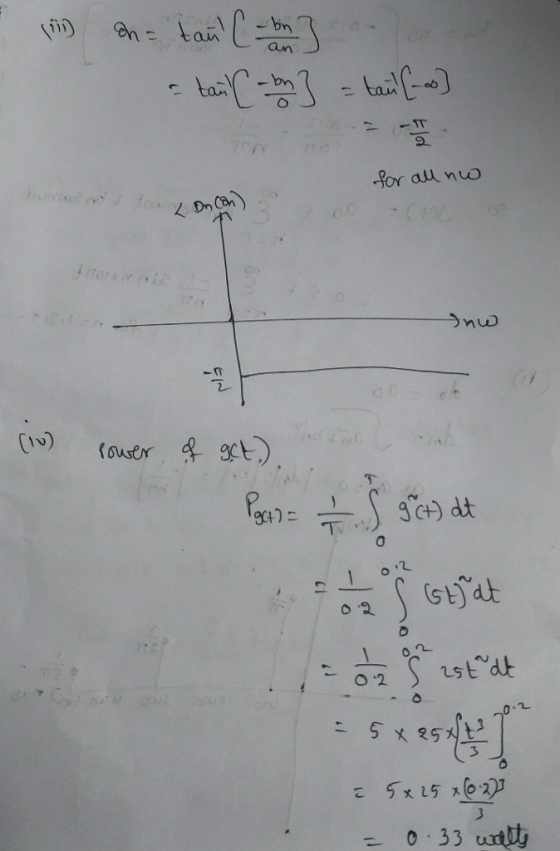

Answer 1
