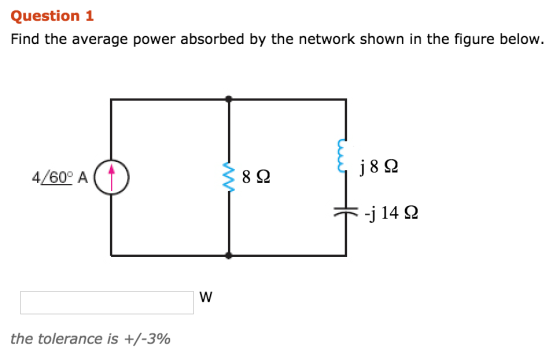

Question 1 Find the average power absorbed by the network shown in the figure below 4L602...

Question

Question

Question 1 Find the average power absorbed by the network shown in the figure below 4L602 A the tolerance is +/-390

engineering Electrical-Engineering

Answer 1

Answer #1

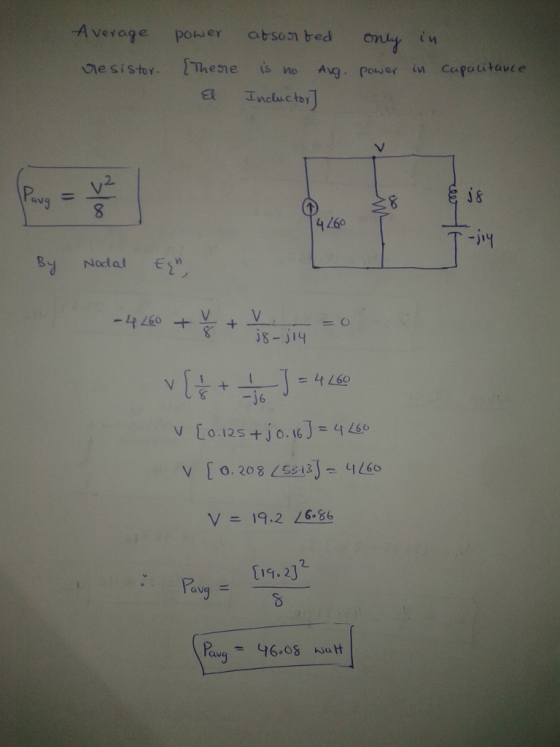

-Average power abson red out 2. 4 260 2 J 6 Po 4605 AN

Answer 2

Similar Homework Help Questions

Chapter 9, Problem 9.026 Determine the average power absorbed by the 26-2 resistor in the network...

Chapter 9, Problem 9.026 Determine the average power absorbed by the 26-2 resistor in the network shown in the figure below 2 02 -4? 2/0° A the tolerance is +/-2%
Question 1 Given the network in the figure below, find (a) the power supplied by the...

Question 1 Given the network in the figure below, find (a) the power supplied by the source and the average power absorbed by each element (b) 9-2 resistor, (c) 2-2 resistor, (d) inductor, (e) capacitor. 4/30° A 3 0 -ji ? Find the power supplied at t 0 Click if you would like to Show Work for this question: Open Show Work
Part 1 In the network in the figure below, find RL for maximum power transfer and...

Part 1 In the network in the figure below, find RL for maximum power transfer and the maximum power transferred to this load. First find the Thevenin Equivalent Resistance. RTH the tolerance is +/-5% Click if you would like to Show Work for this question: Qpen Show Work ▼ Part 2 Next find the load resistance for maximum power transfer. Part 3 Now find the Thevenin Equivalent Voltage TH = the tolerance is +/-5% Click if you would like to...

Chapter 9, Problem 9.026 Determine the average power absorbed by the 38-2 resistor in the network...

Chapter 9, Problem 9.026 Determine the average power absorbed by the 38-2 resistor in the network shown in the figure below. w . 20 - 42 12/0°v {j20 02/0ºA 380
Find the value of Ru in the network in the figure below for maximum power transfer...

Find the value of Ru in the network in the figure below for maximum power transfer MA 10Ω 10Ω the tolerance is +/-5% Click if you would like to Show Work for this question: Open Show Work
Find the power absorbed by the network in the figure. ΑΚΟ 9 kg 25 V 36...

Find the power absorbed by the network in the figure. ΑΚΟ 9 kg 25 V 36 kg 8 ΚΩ 2 kg mW

E9.2 Given the network in Fig. E9.2, find the average power absorbed by each passive circuit element and the total average power supplied by the current source.

Given the network in Fig. E9.2, find the average power absorbed by each passive circuit element and the total average power supplied by the current source.
Find R in the network in the figure below in order to achieve maximum power transfer....

Find R in the network in the figure below in order to achieve maximum power transfer. 2 ΚΩ ΑΛΛ- 4 ΚΩ +2V 4 ΚΩ 1 ΚΩ RL RL k2 the tolerance is +/-2%
1.19 Find I and the power absorbed by each element in the network of Fig. 1.30....

1.19 Find I and the power absorbed by each element in the network of Fig. 1.30. 8A9v 6 Figure 1.30 For Prob. 1.19. 1.20 Find V, and the power absorbed by each element in the circuit of Fig. 1.31. 1.- 2A 28 V 12 V TIA 28 V 30 V + 6A1 Figure 1.31 For Prob. 1.20.

Given the circuit and find the average Power absorbed by the 10 Ohm resistor. Question 4...

Given the circuit and find the average Power absorbed by the 10 Ohm resistor. Question 4 [20] Given the circuit of Fig. 3.4 find the average power absorbed by the 100 resistor -50 40 8V 220° ontv 0.1VO 81 50 Fig. 3.4 Question 5 65 lagging power factor and an efficiency
