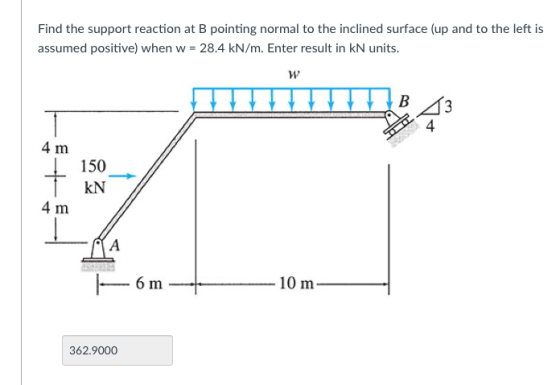

Find the support reaction at B pointing normal to the inclined surface (up and to the left is assumed positive) when w = 28.4 kN/m. Enter result in kN units. 4 4 m し 150 4 m 362.9000

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

✔ Recommended Answer
Answer #1

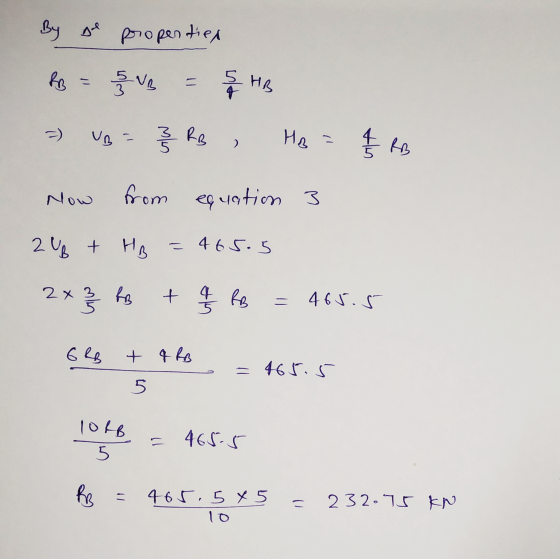

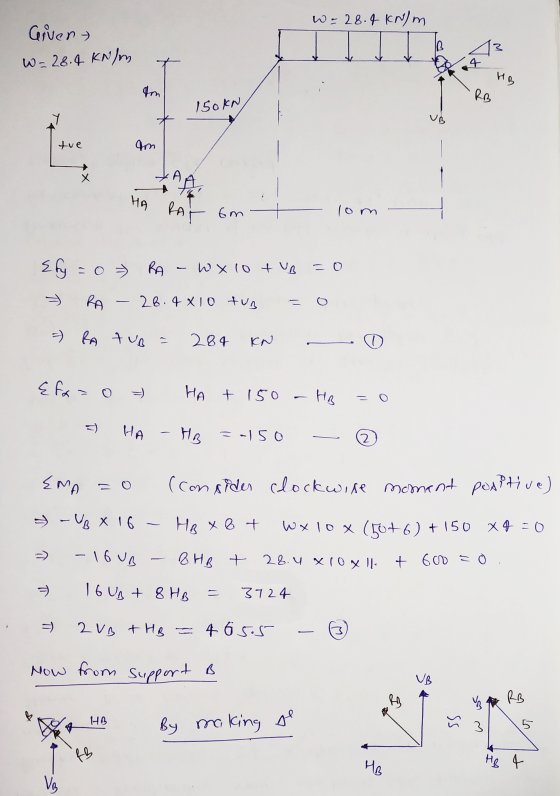

By ge propertier RB ve 5 HB انم) = Un = 3 RB Ho 2 12 45 RB Now from equation 3 3 2 UB + HB = 465.5 2x 33 kB t as RB = 465.5 6

Support reaction at B Normal to inclined surface is 232.75 KN
