Question

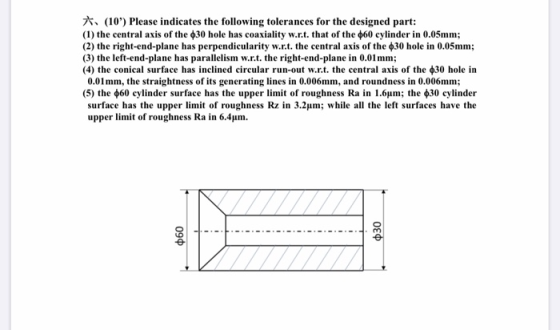

*(10') Please indicates the following tolerances for the designed part: (1) the central axis of the $30 hole has coaxiality w.r.t. that of the 60 cylinder in 0.05mm; (2) the right-end-plane has perpendicularity w.r.t. the central axis of the $30 hole in 0.05mm; (3) the left-end-plane has parallelism w.r.t. the right-end-plane in 0.01 mm; (4) the conical surface has inclined circular run-out w.r.t. the central axis of the $30 hole in 0.01 mm, the straightness of its generating lines in 0.006mm, and roundness in 0.006mm; (5) the $60 cylinder surface has the upper limit of roughness Ra in 1.6um; the $30 cylinder surface has the upper limit of roughness Rz in 3.2um; while all the left surfaces have the upper limit of roughness Ra in 6.4um. 060 030

Answer 1

Ans :

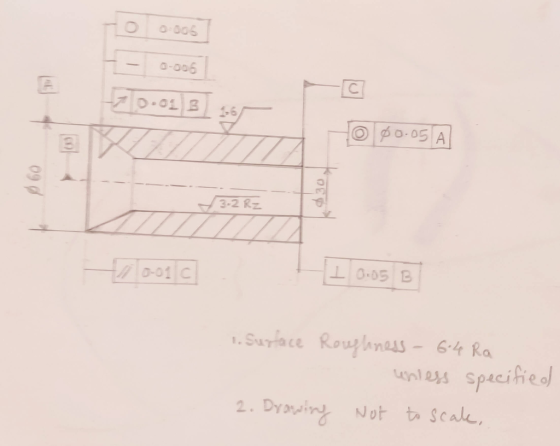

The drawing along with given geometrical tolerances is attached in jpeg format

0-005 0.006 -0.013 O $0.05 A 2000 060 30 -3-2Rz -70-0110 II 0.05 B 1. Surface Roughness - 64 Ra unless specified 2. Drowing Not to scale,
