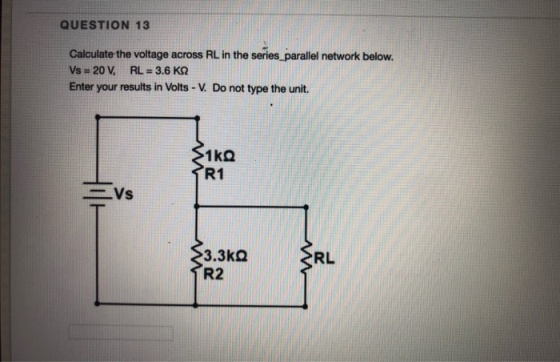

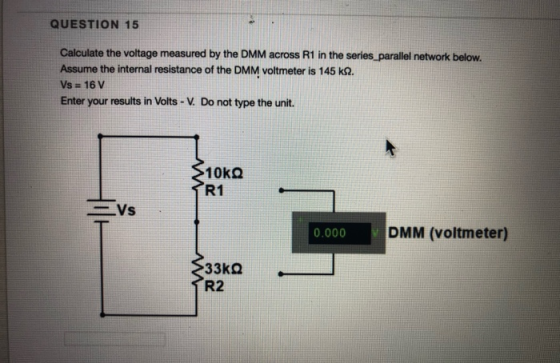

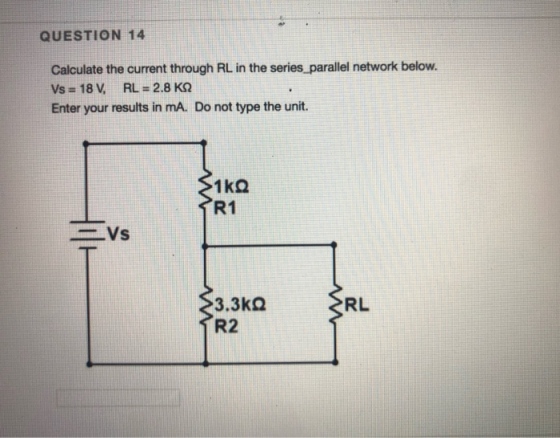

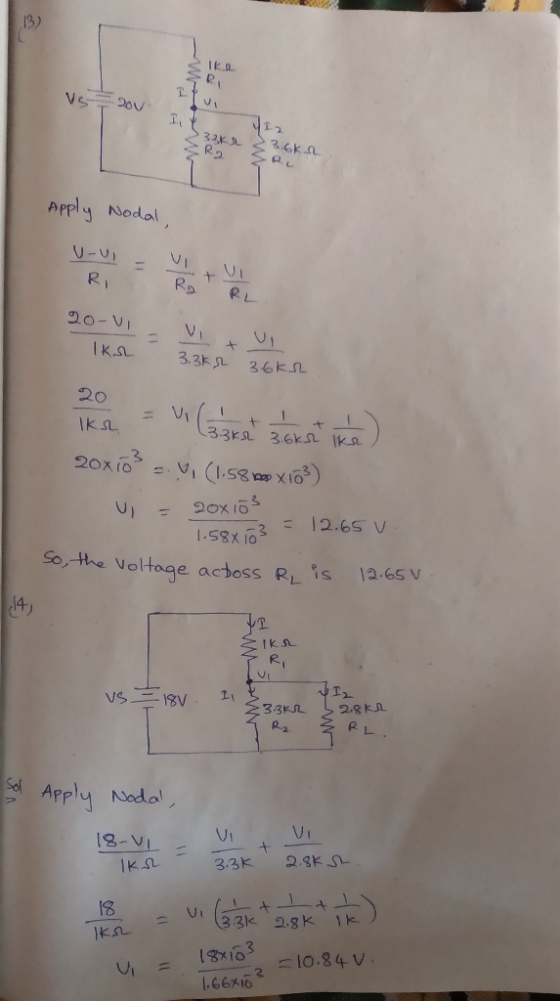

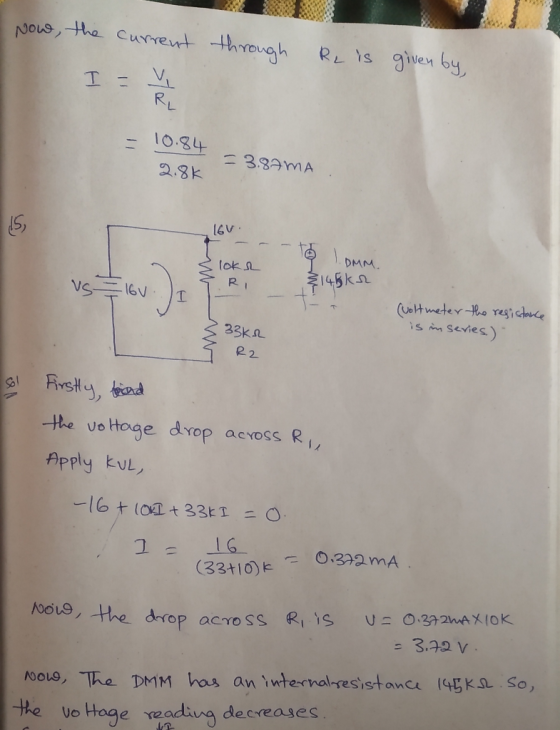

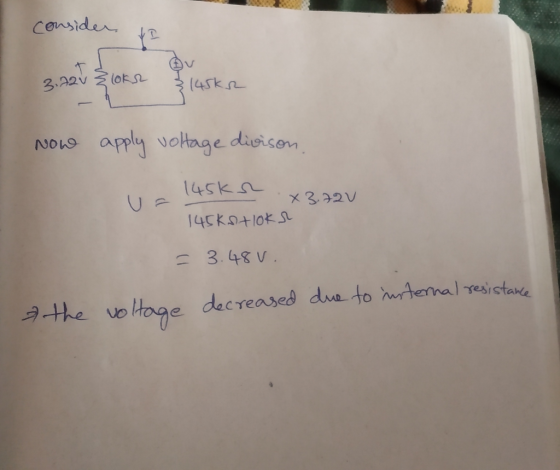

QUESTION 13 Calculate the voltage across RL in the series_parallel network below. Vs = 20 V,...
the time ran out and no one solved it! Question Completion Status: 1600 ) BU (C)...
the
time ran out and no one solved it!
Question Completion Status: 1600 ) BU (C) 00011 12 13 14 16 17 18 QUESTION 15 Calculate the voltage measured by the DMM across R2 in the series parallel network below. Assume the internal resistance of the DMM voltmeter is 117 k52 Vs = 21 V Enter your results in Volts - V. Do not type the unit. 10kg R1 =vs 0.000 DMM (voltmeter) $33ko R2 QUESTION 16
Question 13 The input Vs to the comparator circuit below is a 10 V Triangle Wave....
Question 13 The input Vs to the comparator circuit below is a 10 V Triangle Wave. Determine the voltage Vs when the output of the comparator will become maximum positive VCC = 12 V, R1 10 k2, R2 = 3.1 k Enter your results in volts. Do not type the units Vcc R1 Vout R2 AN Vs ww
Question 13 The input Vs to the comparator circuit below is a 10 V Triangle Wave. Determine the voltage Vs when the...
Question 21 The voltage drop across R2 = 7 V. Calculate the unknown value for R2....
Question 21 The voltage drop across R2 = 7 V. Calculate the unknown value for R2. Vs = 13 V Enter your results in Ohms 0 2200 R1 R2 1000 R3 2200 R4 Question 22 Calculate the value of that will operate the lamp in the circuit below. E = 46 V Enter your results in Ohms 0. 1.5W 3V Lamp Question 23 Calculate the total resistance RT in the parallel circuit below. R1 = 6.10 Enter your result in...
Determine the minimum value for RL in the voltage divider below to create a "STIFF" load....
Determine the minimum value for RL in the voltage divider below to create a "STIFF" load. R2 = 1702 Enter your results in Ohms - KS2. Do not type the unit. $3300 R1 15V Vs
QUESTION 19 Calculate Thevenin Equivalent Resistance between load terminals A to b for the series-parallel resistor...
QUESTION 19 Calculate Thevenin Equivalent Resistance between load terminals A to b for the series-parallel resistor network below. R2 = 92 KO. Enter your results in Ohms - K. Do not type the unit. 22kg R1 18ko R3 - 24V R2 RL
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all...
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all transistors. Assume re 15 Q for the CE Amplifier. Ignore re' for the DP Amplifier Vcc 12 V, R1 56 K, R2 10 KQ, R4 22 KQ R3 5.6 KQ, RL 8 RE(CE) 628 0, RE(CC) 330 Rc 3.5 KQ, Enter your results. No units. SR3 R1 RC C3 Vcc C1 Beta Q2a HH Vin Beta Q1 Beta Q2b C4 R4 Vs R2 C2...
Question 28 Determine the Power Output (PRL) for the single supply push pull amplifier below. VCC = 15 V BAC 180, A...
Question 28 Determine the Power Output (PRL) for the single supply push pull amplifier below. VCC = 15 V BAC 180, Assume Ay 1 Vs 2.1 VRMS Rs 400 R1 R2 = 0.59 KQ, SI Diodes 0.7 V C1 C2 1 uF RL 10 2 Enter your results in mW. Do not type the units. SR1 C1a Beta Q1 Si Rs C2 VCC Si C1b Beta Q2 SRL SR2 Vs
Question 28 Determine the Power Output (PRL) for the single...
Calculate the voltage and amperage across/through resistors R2 and R3 to detrrmine the power dissipated in...
Calculate
the voltage and amperage across/through resistors R2 and R3 to
detrrmine the power dissipated in both resistors in terms of
Vs,R1,R2,R3
b) R2 R1 82Ω R3 330Ω Figure 1: Series/Parallel Circuit
QUESTION 22 Calculate the current through RL created by Vs2. Vs1 20 V, Vs2 22 V...
QUESTION 22 Calculate the current through RL created by Vs2. Vs1 20 V, Vs2 22 V Enter positive for current going down. Enter negative for current going up. Enter your results in mA. R1 R2 100 RL- 100 A RL Vs2 Vs1 B R2
Given a network of N resistors connected in series, as shown below, prove that the voltage...
Given a network of N resistors connected in series, as shown below, prove that the voltage d the fh resistor is given by: vjo rop, , across R1+R2+ RN R2 Calculate 12 in the circuit below 24 V 6Ω 1262 Given a network of N resistors connected in parallel, as shown below, prove that the current,列flowing in the fh resistor is given by: ij - is T- G1+G2+GN eq R/ R2 Calculate i in thecicit below 6 A 4Ω 4Ω...
the
time ran out and no one solved it!
Question Completion Status: 1600 ) BU (C) 00011 12 13 14 16 17 18 QUESTION 15 Calculate the voltage measured by the DMM across R2 in the series parallel network below. Assume the internal resistance of the DMM voltmeter is 117 k52 Vs = 21 V Enter your results in Volts - V. Do not type the unit. 10kg R1 =vs 0.000 DMM (voltmeter) $33ko R2 QUESTION 16
Question 13 The input Vs to the comparator circuit below is a 10 V Triangle Wave. Determine the voltage Vs when the output of the comparator will become maximum positive VCC = 12 V, R1 10 k2, R2 = 3.1 k Enter your results in volts. Do not type the units Vcc R1 Vout R2 AN Vs ww
Question 13 The input Vs to the comparator circuit below is a 10 V Triangle Wave. Determine the voltage Vs when the...
Question 21 The voltage drop across R2 = 7 V. Calculate the unknown value for R2. Vs = 13 V Enter your results in Ohms 0 2200 R1 R2 1000 R3 2200 R4 Question 22 Calculate the value of that will operate the lamp in the circuit below. E = 46 V Enter your results in Ohms 0. 1.5W 3V Lamp Question 23 Calculate the total resistance RT in the parallel circuit below. R1 = 6.10 Enter your result in...
Determine the minimum value for RL in the voltage divider below to create a "STIFF" load. R2 = 1702 Enter your results in Ohms - KS2. Do not type the unit. $3300 R1 15V Vs
QUESTION 19 Calculate Thevenin Equivalent Resistance between load terminals A to b for the series-parallel resistor network below. R2 = 92 KO. Enter your results in Ohms - K. Do not type the unit. 22kg R1 18ko R3 - 24V R2 RL
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all transistors. Assume re 15 Q for the CE Amplifier. Ignore re' for the DP Amplifier Vcc 12 V, R1 56 K, R2 10 KQ, R4 22 KQ R3 5.6 KQ, RL 8 RE(CE) 628 0, RE(CC) 330 Rc 3.5 KQ, Enter your results. No units. SR3 R1 RC C3 Vcc C1 Beta Q2a HH Vin Beta Q1 Beta Q2b C4 R4 Vs R2 C2...
Question 28 Determine the Power Output (PRL) for the single supply push pull amplifier below. VCC = 15 V BAC 180, Assume Ay 1 Vs 2.1 VRMS Rs 400 R1 R2 = 0.59 KQ, SI Diodes 0.7 V C1 C2 1 uF RL 10 2 Enter your results in mW. Do not type the units. SR1 C1a Beta Q1 Si Rs C2 VCC Si C1b Beta Q2 SRL SR2 Vs
Question 28 Determine the Power Output (PRL) for the single...
Calculate
the voltage and amperage across/through resistors R2 and R3 to
detrrmine the power dissipated in both resistors in terms of
Vs,R1,R2,R3
b) R2 R1 82Ω R3 330Ω Figure 1: Series/Parallel Circuit
QUESTION 22 Calculate the current through RL created by Vs2. Vs1 20 V, Vs2 22 V Enter positive for current going down. Enter negative for current going up. Enter your results in mA. R1 R2 100 RL- 100 A RL Vs2 Vs1 B R2
Given a network of N resistors connected in series, as shown below, prove that the voltage d the fh resistor is given by: vjo rop, , across R1+R2+ RN R2 Calculate 12 in the circuit below 24 V 6Ω 1262 Given a network of N resistors connected in parallel, as shown below, prove that the current,列flowing in the fh resistor is given by: ij - is T- G1+G2+GN eq R/ R2 Calculate i in thecicit below 6 A 4Ω 4Ω...
