Homework Answers
Add Answer to:

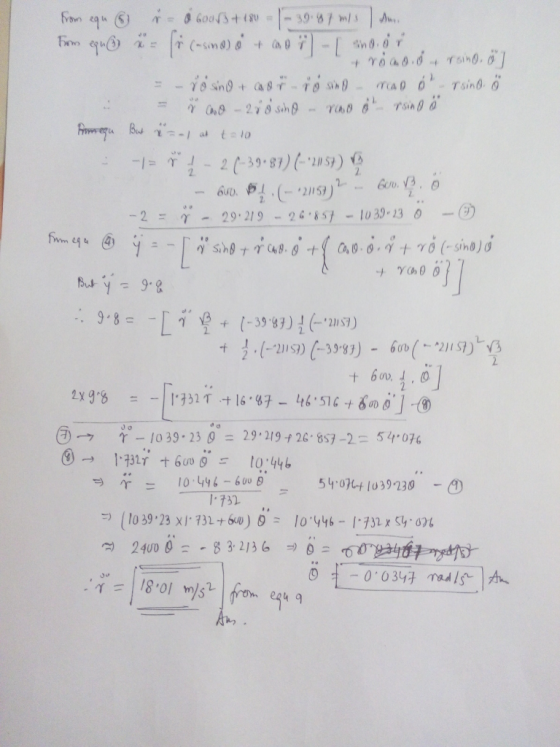

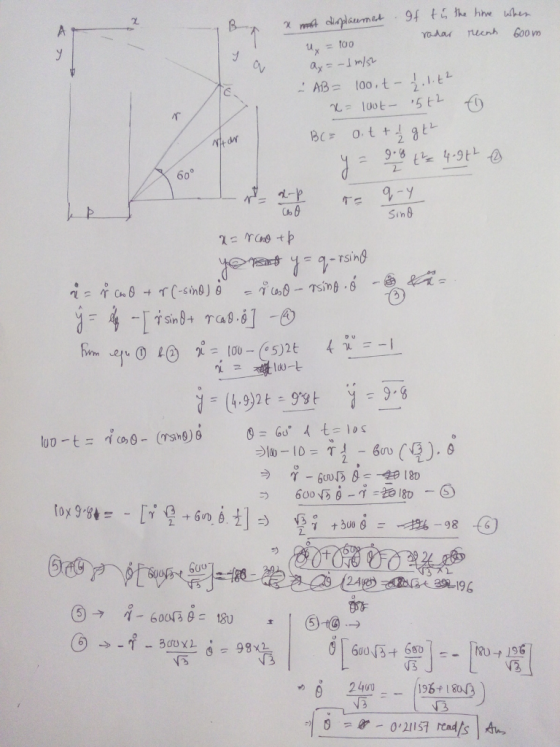

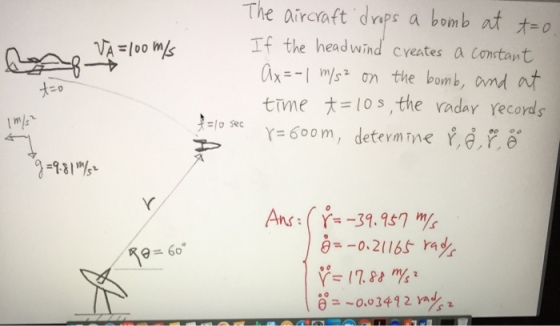

The aircraft drops a bomb at If the head wind cveates a Contant 。 a,--1 mYs2...
head wind 4, A 770 kg car, with a 95 kg driver, is driving up a...
head wind 4, A 770 kg car, with a 95 kg driver, is driving up a shallow hill of angle θ= 5° directly into a strong headwind. The headwind exerts a force 200 N on the car. Neglecting friction, what force must the car's engine produce so that it travels at a constant velocity of 10 m/s.
The heading control of the traditional bi-wing aircraft, shown in Figure I(2), is represented by the...
The heading control of the traditional bi-wing aircraft, shown in Figure I(2), is represented by the block diagram of Figure 1(b). Where the PD controller Ge(s) = (kp+Ts), where ky 10 and T, = 2 (a) Wind disturbance Controller Engine TA Aircraft dynamics RG) GG) (5+10) s(+20) (b) Fig.1: a. Bi-wing aircraft b. Control system a. Find the state-space representation of the control system b. Applying the state-space theories to determine the transfer matrix of this system. c. Test the...
13-1. The following wind measurements by bin are given for a proposed wind turbine location. Assu...
13-1. The following wind measurements by bin are given for a proposed wind turbine location. Assume the air has a density of 1.15 kg/m. Wind Speed (m/s) Bin 1 2 3 4 5 6 7 8 Minimum 0.0 0.0 1.0 2.0 3.1 4.1 5.2 6.2 7.2 8.2 9.3 10.3 Maximum 0.0 1.0 2.0 3.1 4.1 5.2 6.2 7.2 8.2 9.3 10.3 11.3 12.3 13.4 14.4 And above Hours/year 80 200 501 850 1300 1407 1351 990 641 480 375 291...
theavton the ump.if the absolute pressure of the liquid drops below the vapor pressure then cavitation will occur Answer B) False A) True A centrifugal pump delivers water against a net head of 20...
theavton the ump.if the absolute pressure of the liquid drops below the vapor pressure then cavitation will occur Answer B) False A) True A centrifugal pump delivers water against a net head of 20 meters and a design speed of 1100 rpm. is 10 m/s. he impeller diameter is 0.4 m. Determine manometric efficiency of the pump, if Co2 Intr E) 95% D) 92% A) 85% C) 90% B) 88% Answer In Calculate net head or effective head for Pelton...
(2 dimensions, 1 object, 2 accelerations) 1) A projectile is thrown with a wind. The wind...
(2 dimensions, 1 object, 2 accelerations) 1) A projectile is thrown with a wind. The wind produces a constant acceleration of 2 m/s/s in the same direction as the projectile’s horizontal direction. The projectile is launched with a velocity of 20 m/s at an angle of 30°. The projectile lands at the same height as it was launched. a. How far from the launch point does the projectile land? Do this problem again with no numbers. b. Calculate the range...
Question No 1 (CLO-1) (a) A Wind speed sensor was installed inside a wind tunnel. The...
Question No 1 (CLO-1) (a) A Wind speed sensor was installed inside a wind tunnel. The sensor was tested and following output data was recorded at different wind speeds: Wind speed Vout (m/s) (V) 0 0.00 2 0.35 4 0.65 6 1.10 8 1.42 10 1.85 12 2.17 14 2.54 Sketch input output graph of the sensor using recorded data and evaluate the following: 1. Linearity II. Sensitivity (b) When a 250-lbs man gets in his car, the car body...
A parachutist is falling through the air with a downwards speed of 15m s-1. The wind...
A parachutist is falling through the air with a downwards speed of 15m s-1. The wind is horizontal and is 8 m s-1 east. What is the magnitude of the resultant velocity of the parachutist?
8. 1.) A bomb calorimeter, or constant volume calorimeter, is a device often used to determine...
8. 1.) A bomb calorimeter, or constant volume calorimeter, is a device often used to determine the heat of combustion of fuels and the energy content of foods. Since the "bomb" itself can absorb energy, a separate experiment is needed to determine the heat capacity of the calorimeter. This is known as calibrating the calorimeter. In the laboratory a student burns a 0.323-g sample of azulene (C10H8) in a bomb calorimeter containing 1200. g of water. The temperature increases from...
(a) In Masirah Island at a sea-level, the wind statistics, taken over a period of one...
(a) In Masirah Island at a sea-level, the wind statistics, taken over a period of one year and measured at an anemometer height of 10 m above sea-level, are as shown in Figure Q2(a) The velocity is assumed to be constant in each indicated range. Although the wind velocity varies with the 1/7th power of height. The windmill characteristics are: Efficiency 70%, Cost 47.8mT USD/m2, and Weight 10 g/m2. If h is the height of the tower and m is...
Matlab Assignment 8 Problem 1 (8 points) wind turbine at your house to reduce your electricity bills. thinking abou...
Matlab
Assignment 8 Problem 1 (8 points) wind turbine at your house to reduce your electricity bills. thinking about installing You are a. You found the equation to calculate the electrical power output and measured wind speed at your house. Pelect = npAv3 where Pelect is the electrical power output from the wind turbine [W] nis the efficiency (0.22) p is the air density [1.16 kg/m'] [m] (blade diameter is 5.0 m) A is the blade swept area v is...
head wind 4, A 770 kg car, with a 95 kg driver, is driving up a shallow hill of angle θ= 5° directly into a strong headwind. The headwind exerts a force 200 N on the car. Neglecting friction, what force must the car's engine produce so that it travels at a constant velocity of 10 m/s.
The heading control of the traditional bi-wing aircraft, shown in Figure I(2), is represented by the block diagram of Figure 1(b). Where the PD controller Ge(s) = (kp+Ts), where ky 10 and T, = 2 (a) Wind disturbance Controller Engine TA Aircraft dynamics RG) GG) (5+10) s(+20) (b) Fig.1: a. Bi-wing aircraft b. Control system a. Find the state-space representation of the control system b. Applying the state-space theories to determine the transfer matrix of this system. c. Test the...
13-1. The following wind measurements by bin are given for a proposed wind turbine location. Assume the air has a density of 1.15 kg/m. Wind Speed (m/s) Bin 1 2 3 4 5 6 7 8 Minimum 0.0 0.0 1.0 2.0 3.1 4.1 5.2 6.2 7.2 8.2 9.3 10.3 Maximum 0.0 1.0 2.0 3.1 4.1 5.2 6.2 7.2 8.2 9.3 10.3 11.3 12.3 13.4 14.4 And above Hours/year 80 200 501 850 1300 1407 1351 990 641 480 375 291...
theavton the ump.if the absolute pressure of the liquid drops below the vapor pressure then cavitation will occur Answer B) False A) True A centrifugal pump delivers water against a net head of 20 meters and a design speed of 1100 rpm. is 10 m/s. he impeller diameter is 0.4 m. Determine manometric efficiency of the pump, if Co2 Intr E) 95% D) 92% A) 85% C) 90% B) 88% Answer In Calculate net head or effective head for Pelton...
Question No 1 (CLO-1) (a) A Wind speed sensor was installed inside a wind tunnel. The sensor was tested and following output data was recorded at different wind speeds: Wind speed Vout (m/s) (V) 0 0.00 2 0.35 4 0.65 6 1.10 8 1.42 10 1.85 12 2.17 14 2.54 Sketch input output graph of the sensor using recorded data and evaluate the following: 1. Linearity II. Sensitivity (b) When a 250-lbs man gets in his car, the car body...
(a) In Masirah Island at a sea-level, the wind statistics, taken over a period of one year and measured at an anemometer height of 10 m above sea-level, are as shown in Figure Q2(a) The velocity is assumed to be constant in each indicated range. Although the wind velocity varies with the 1/7th power of height. The windmill characteristics are: Efficiency 70%, Cost 47.8mT USD/m2, and Weight 10 g/m2. If h is the height of the tower and m is...
Matlab
Assignment 8 Problem 1 (8 points) wind turbine at your house to reduce your electricity bills. thinking about installing You are a. You found the equation to calculate the electrical power output and measured wind speed at your house. Pelect = npAv3 where Pelect is the electrical power output from the wind turbine [W] nis the efficiency (0.22) p is the air density [1.16 kg/m'] [m] (blade diameter is 5.0 m) A is the blade swept area v is...
