(Figure 1) shows a 17-cm-diameter loop in three different magnetic fields. The loop's resistance is 0.10 Ω.
(Figure 1) shows a 17-cm-diameter loop
in three different magnetic fields. The
loop's resistance is 0.10 Ω.
For the steps and strategies involved in
solving a similar problem, you may view
a Video Tutor Solution.
Part F

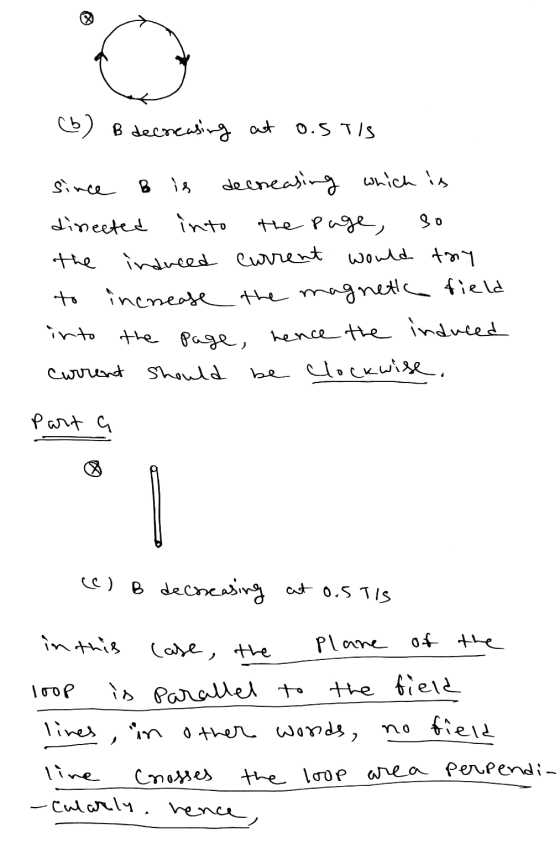

For case (b), what is the direction of the current?
clockwise
counterclockwise
no current
Part G
For case (c), what is the induced emf?
Part H
For case (c), what is the induced current?
Part I
For case (c), what is the direction of the current?
clockwise
counterclockwise
no current
